Technical Specifications
1
8×8 3G-SDI Matrix Switcher
MSS0811
The compact SDI routing switcher MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates,
automatic bypass of non-standard rates between 270Mbit/s and 3Gbit/s, and passes all SDI embedded audio/ancillary
data. It can conveniently controlled by front panel button, keyboard via USB and PC software via LAN/RS-232.
Connections
Standards
SDI Format Support
(2K) 2048×1080p 30/29.97/25/24/23.98
(2K) 2048×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080i 60/59.94/50
(HD) 1280×720p 60/59.94/50
(HD) 1280×720p 30/29.97/25/24/23.98
(SD) 625i 50
(SD) 525i 59.94
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
SDI Compliance
SMPTE 372M, SMPTE 259M,
SMPTE 292M, SMPTE 296M,
SMPTE 424M, SMPTE 425M,
DVB-ASI
SDI Color Space and Precision
RGB 4:4:4 10bit/12bit
YUV 4:2:2 10bit/12bit
YUV 4:4:4 10bit/12bit
XYZ 4:4:4 12bit
SDI Video Input
8×SD/HD/3G-SDI(75Ω BNC)
SDI Video Output
8×SD/HD/3G-SDI(75Ω BNC)
Updates and Configuration
LAN(RJ45)
Control
Front panel button,
USB keyboard,
PC software via LAN/RS-232
Technical Specifications
2

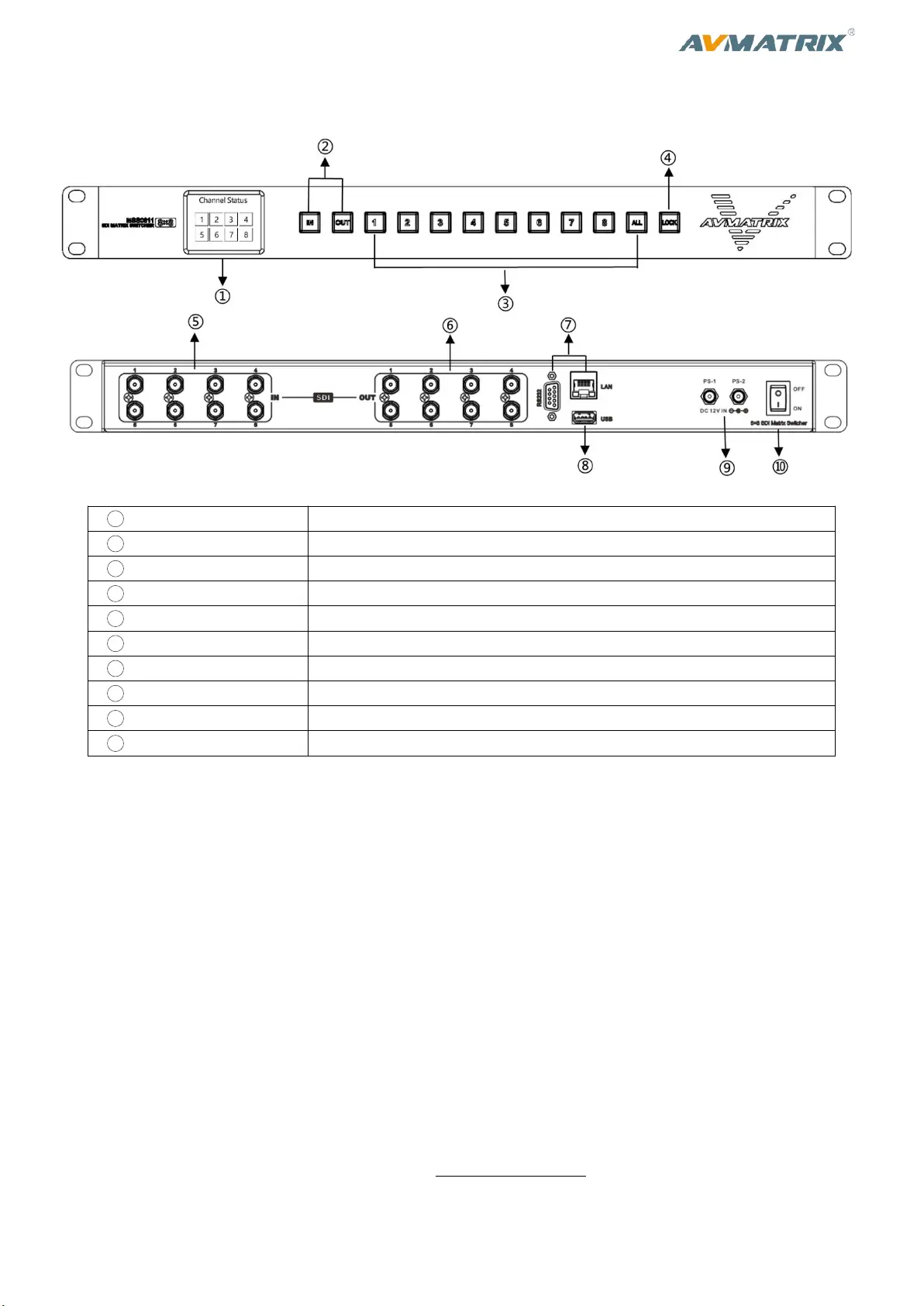

Controls
1
2.2 inch LCD display
Show channel switching status
2 IN/OUT buttons
Select the input or output channel
3 Channel buttons
input or output channel from 1 to 8 and all channel
4 Lock button
Lock or unlock, press the button to Lock or unlock front panel buttons
5 Inputs
SDI inputs 1-8
6
Outputs
SDI outputs 1-8
7
Control port
PC software via LAN/RS-232
8 USB port
Connect by USB keyboard to control
9 Power
Dual power connectors PS-1 & PS-2, for power redundancy
10 Power switch
To turn on or off the device
Front Panel Control
Switching an input to an output.
e.g. press buttons “IN, 1, OUT, 2” to switch input 1 signal to output 2.
Switching an input to multiple outputs.
e.g. press buttons “IN, 1, OUT, 2, 4, 5” to switch input 1 signal to output 2, 4, 5.
Switching an input to all outputs.
e.g. press buttons “1, ALL” to switch input 1 signal to all outputs.
USB Keyboard Control (“I” = “IN”, “O” = “OUT”, “A” = “ALL”)
Switching an input to an output.
e.g. press keys “I, 1, O, 2” to switch input 1 signal to output 2.
Switching an input to all outputs.
e.g. press keys “1, A” to switch input 1 signal to all outputs.
Switching the device return to the default status “One to One” press the key “C”.
“One to One” means return to default status, “Input 1 to Output 1, Input 2 to Output 2, …, Input 8 to Output 8”.
PC Control
Please download the PC control software from website: WWW.AVMATRIX.NET
