Sida 1/4

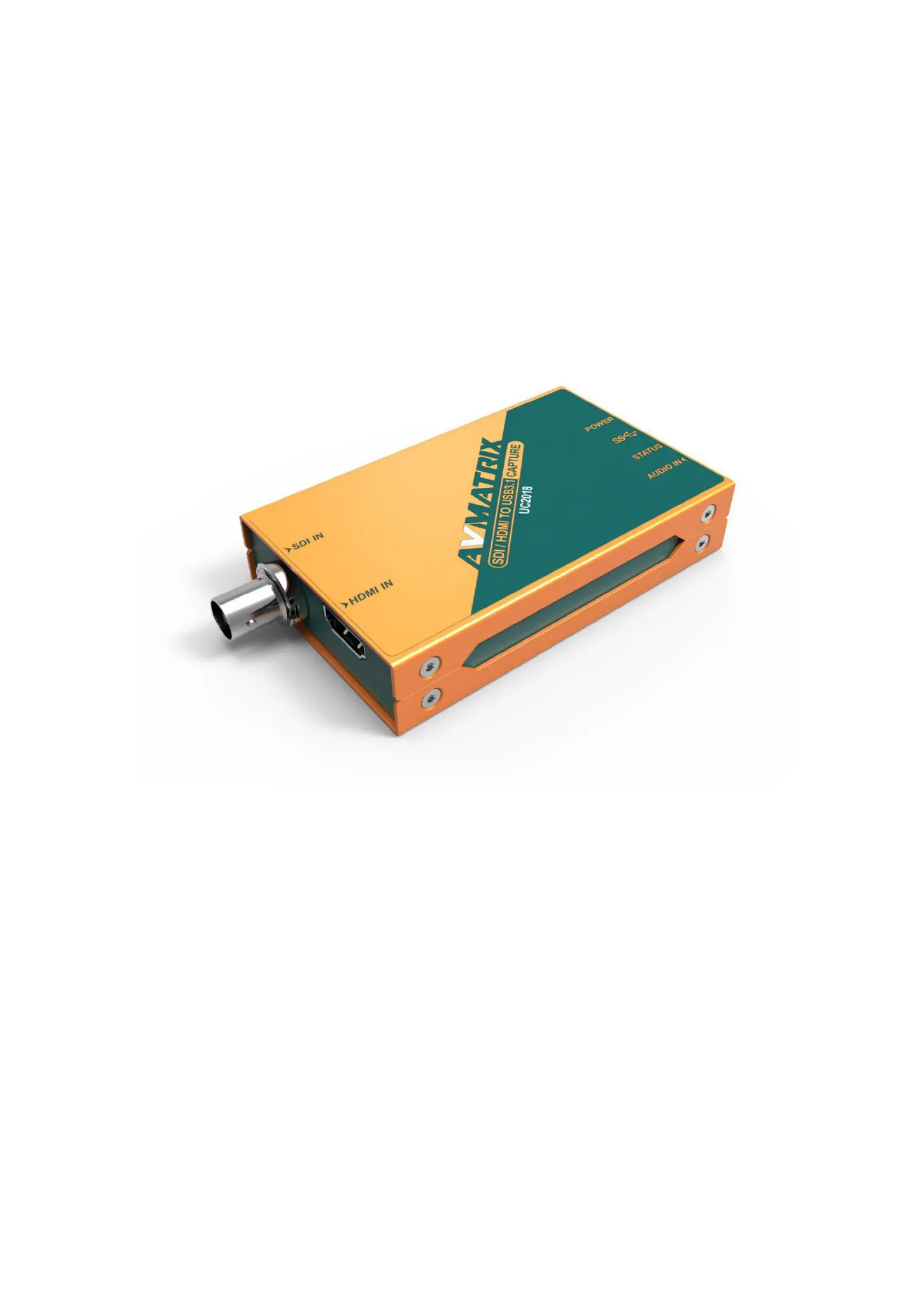

SDI & HDMI to USB3.1 Gen 1 Video Capture
User Manual V1.0
1
1. INTRODUCTION
UC2018 is a professional and easy-to use device to capture uncompressed SDI or
HDMI signal over USB3.1Gen1 for graphics capture, live streaming, recording on your
laptop, PC. Video resolution supports up to 1080p60Hz. It is compatible with virous
systems including Windows, Linux, OS X etc. and UVC and UAC compliant. The
device is real plug and play, no need driver. UC2018 is your ideal choice for
applications like live broadcast, streaming, and professional AV workflows including
podcasting, web conferencing, video production and screen capture.
2. FEATURES
● SDI/ HDMI in, audio in, USB3.0 (USB 3.1 Gen1) out
● Automatic input signal detection, up to 1080p60
● Uncompressed video & audio capture, comply with UVC and UAC
● Plug-and-Play, driver free & power free
● Compatible with Windows, Linux, macOS
● Compatible with OBS, ZOOM, Teams, Twitch, etc.
SPECIFICATIONS
Connections
Input Interface
1×HDMI 1.4a, 1×SD/HD/3G-SDI
1×3.5mm stereo audio(line in)
Output interface
1×USB3.0 Type C(USB 3.1 Gen1, up to 200MB/s)
Format
SDI Input Format
1080p60/59.94/50/30/29.97/25/24/23.98
1080PsF30/29.97/25/24/23.98
1080i50/59.94/60
720p60/59.94/50/30/29.97/25/24/23.98
625i50/525i59.94
HDMI Input Format
1080p60/59.94/50/30/29.97/25/24/23.98
1080i50/59.94/60
720p60/59.94/50/30/29.97/25/24/23.98
576p50/ 576i50
480i59.94/60
480p59.94/60
USB Output Format
1920×1080, 1680×1050, 1440×900, 1368×768,
1280×1024, 1280×960, 1280×800, 1280×720,
2
1024×768, 1024×576, 960×540, 856×480, 800×600,
768×576, 720×576, 720×480, 640×480, 640×360
Audio& Video Capture
UVC (USB video class) standard
UAC (USB audio class) standard
Audio Codec
2-channel, 16 bit PCM, 48kHz, 1536 kbps
Video Color Space
YUY2
OS and Software Compatibility
Supports OS
Windows 7/8/10, Linux (Kernel version 2.6.38 and
above), macOS (10.8 and above)
Software Compatibility
OBS studio, Skype, ZOOM, Teams, Google Meet,
Youtube Live, QuikcTime Player, Face time,
Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, etc.
Compatible SDK
DirectShow(Windows), DirectSound(Windows)
General
Dimensions
92×58×19mm
Weight
Net weight: 205g
Gross Weight: 300g
Power Consumption
3.5W(Max)
Operating Temperature
-20~60°C
Storage Temperature
-30~70°C
Relative Humidity
20~90% RH (no condensation)
Accessory
Accessory
1× USB3.0 A-C cable
3. INTERFACE
