Sida 1/21

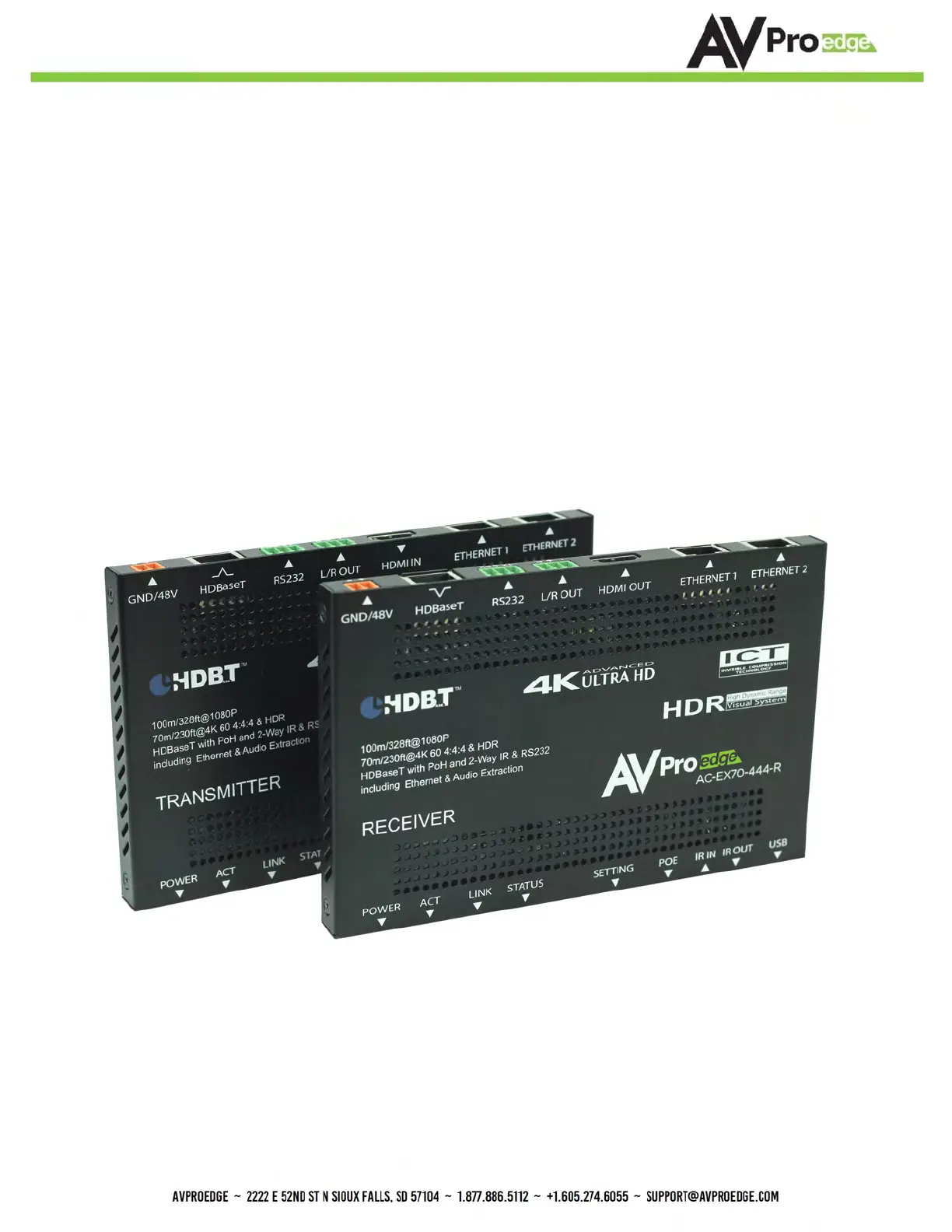

USER MANUAL
Ultra Slim 70m (100m HD) 4K60 4:4:4, HDR HDBaseT Extender
Audio Extraction, EDID Management, Scaling & Ethernet
AC-EX70-444-KIT
Page 1
• HDMI 2.0(a/b)
• 18Gbps Bandwidth Support (Using ICT)
• Ultra Slim (.47 inch/12mm)
• Up to 4K60 4:4:4 Support
• Full HDR Support (HDR 10 & 12 Bit)
• HDR, HDR10+ and HLG Support
• 4K --> 1080P Down-scaling for mixed systems
• EDID Management and EDID emulate
• 4K & HD Test Patterns built into Tx and Rx for
troubleshooting
• Ethernet Hub Capability
• L/R Audio Extraction on Tx and Rx
• HDCP 2.2 (and all earlier versions supported)
• CEC Pass Through
• 3D Support
• 100M (330ft) on 1080P (Cat6a)
• Up to 70m (230ft) on 4K (up to 4K60 4:4:4, HDR) (Cat6a)
• Bi-directional 48v PoH (Power Over HDBaseT, only one
Power Supply Needed)
• I-Pass Feature for control system "pass-through"
• 3-20v protection circuit built in for safe IR transport
• Bi Directional RS232 Transport
• LED Status, Link, Power indication lights
• Use single UTP/STP LAN cable (CAT-5E/6A) with
substitute HDMI cable to achieve long distance
transmission.
• Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1,
Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master
Audio, Atmos on HDMI
• ESD protection circuitry (Inputs & Outputs) to 7KV
• Can Cascade
• AC-EX70-444-T (Transmitter)
• AC-EX70-444-R (Receiver)
• 48V Power Supply (One supplied)
• 1 x IR Tx Unit
• 1 x IR Rx Unit
• 4x 3 Pin Terminal blocks for Audio and
RS232 Ports
• Mounting Brackets
Model Numbers:
• AC-EX70-444-T ~ HDBaseT Transmitter w/IR and RS-2
• AC-EX70-444-R ~ HDBaseT Receiver w/ IR and RS-232
Features
Whats in the box
*NOTE: Optional 3PIN to STEREO Audio
Cables available for purchase "AC-
CABLE-3PIN-2CH"
AVPro Edge presents its first 18Gbps over copper extender. Using ICT (Invisible
Compression Technology) we have achieved what was thought to be
impossible. We can deliver a virtually lossless high bandwidth 4K HDR signal
with support for all signals up to 18Gbps. Deep Color and HDR Metadata
remain intact making the transmission free of artifacts like banding. Other
similar devices will deliver a sub-par image that has very visible banding and
color shifting.
AC-EX70-444-KIT
Page 2
AC-EX70-444-KIT
Page 3
