Sida 1/4

E - Cam Bolt x 4

D - Dowel Pin x 8

C - Cam Fastener x 4

F - 1/4-20 x 38mm

Machine Screw x 6

H - M6 x 6mm

Machine Screw

Hex Drive x 8

G - M6 x mm16

Machine Screw

Hex Drive x 8

M - Rubber Stem Bumper

x 6

A - Phillips Screwdriver

(Not Provided)

B - 4mm Hex L-Wrench

I - Upper Bracket x 4

K - Shelf Clip x 4

J - Lower Bracket x 4

L - #6 x 1/2"

Wood Screw x 4

Phillips Drive

VALERA

These distinctive product configurations are protected by US and international

patents, trade dress, and/or copyright laws.

BDI are trademarks of Becker Designed, Inc.

Made in China. 9729 Revision: 05-09-11

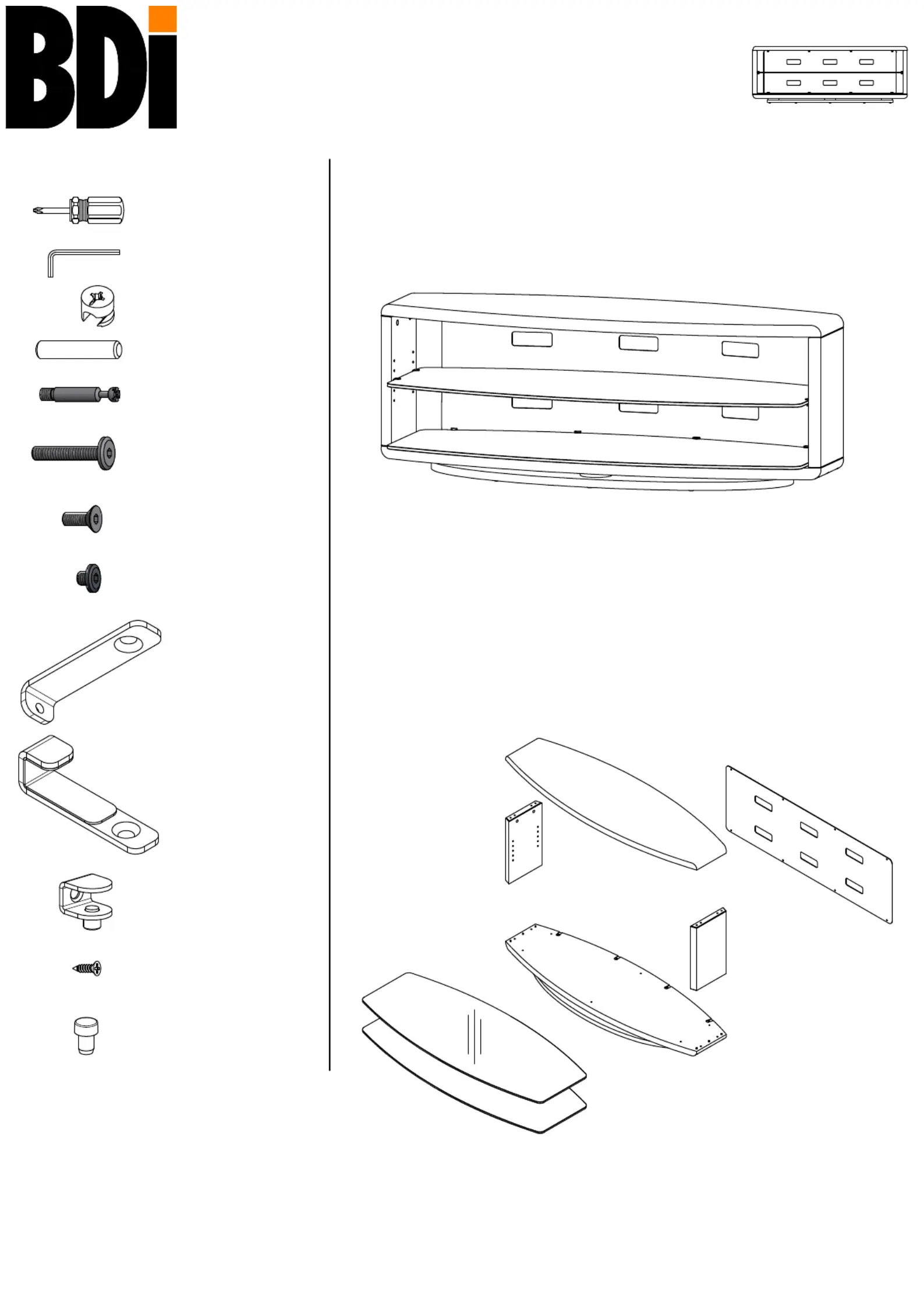

Component List

9729

ASSEMBLY INSTRUCTIONS

BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

Valera is engineered for easy assembly. Carefully follow this procedure to

prevent any damage.

Placement and Maintenance

Valera is designed for indoor use on level floors. Clean glass with glass cleaner,

and wood veneer with a moist cloth.

Step 1

Unpack and Identify

Unpack and identify the components at left. The assembly workspace should be

a non-marring surface such as carpet. For missing hardware pieces, please

contact BDI Customer Service at customerservice@bdiusa.com. For all other

concerns, please contact your BDI Retailer.

N - Top Panel x 1

O - Side Panels x 2

P - Base Assembly x 1

Q - Back Panel x 1

R - Glass Shelves x 2

Cam Fastener (C)

Arrow to point up to start

VALERA

9729

ASSEMBLY INSTRUCTIONS

BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

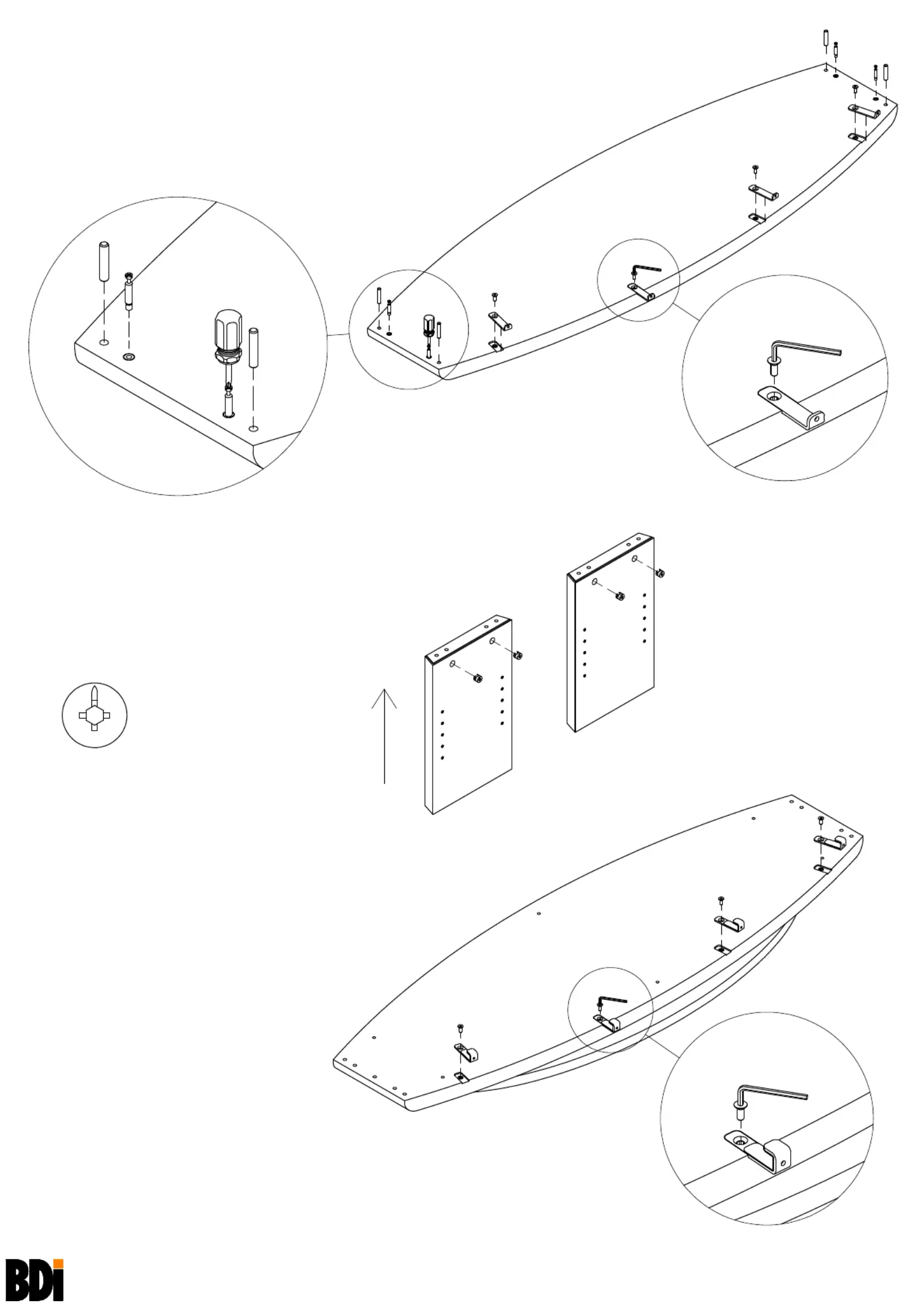

Step 2

Install Hardware onto Top Panel

Lay Top Panel (N) on its Top on a carpeted surface, with holes facing up.

Install

Dowel Pins (D) and Cam Bolts (E) into Top Panel (N) using Phillips

Screwdriver (A)

Install

Upper Brackets (I) onto Top Panel (N) with Machine Screws (G)

using

4mm Hex L-Wrench (B), do not fully tighten for ease of Back Panel

(Q)

installation.

Step 3

Install Hardware into Side Panels

Install Cam Fasteners (C) into Side Panels (O)

as shown, align arrow on

Cam Fastener (C) to

point up.

Step 4

Install Hardware into Bottom Panel

Install Lower Bracket (J) into Base Assembly

(P)

with Machine Screws (G) and tighten using

4mm Hex L-Wrench (B).

Do not fully tighten Brackets for ease of

Back

Panel (Q)

installation.

VALERA

9729

ASSEMBLY INSTRUCTIONS

BDIUSA.COM CUSTOMERSERVICE@BDIUSA.COM

Step 5

Attach Side Panels to Top Panel

Attach Side Panels (O) to Top Panel (N) by lowering Side

Panels (O)

onto Dowel Pins (D) and Cam Bolts (E). Make

certain shelf pin holes face inward.

Tighten

Cam Fasteners (C) with 4mm Hex L-Wrench (B).

Step 6

Attach Base Assembly

Insert Dowel Pins (D) into Side Panels (O).

Attach

Base Assembly (P) to Side Panels (O) using Dowel

Pins (D)

to align components. Make certain Upper

Brackets (I)

and Lower Brackets (J) are on same side.

Tighten

Machine Screws (F) with 4mm Hex L-Wrench (B).

After

Base Assembly (P) is attached turn Unit over.

CAUTION: Do not turn unit over on Brackets.

Recommended

2-person Step

for easy

installation

Produktspecifikationer

Varumärke:	BDI
Kategori:	TV-skåp
Modell:	Valera 9729ES
Vikt:	69000 g
Bredd:	1480 mm
Djup:	580 mm
Höjd:	540 mm
Förpackningens bredd:	280 mm
Antal hyllor:	3 galler
Ramfärg:	Espresso
Maximal skärmstorlek:	65 "
Låddjup:	1520 mm
Vikt inkl. förpackning:	79000 g
Hylla:	Ja
Ram material:	Trä
Ovansidans material:	Trä
Lådor:	Nej
Bordsskivans färg:	Espresso
Hyllans material:	Härdat glas
Hyllans färg:	Grå
