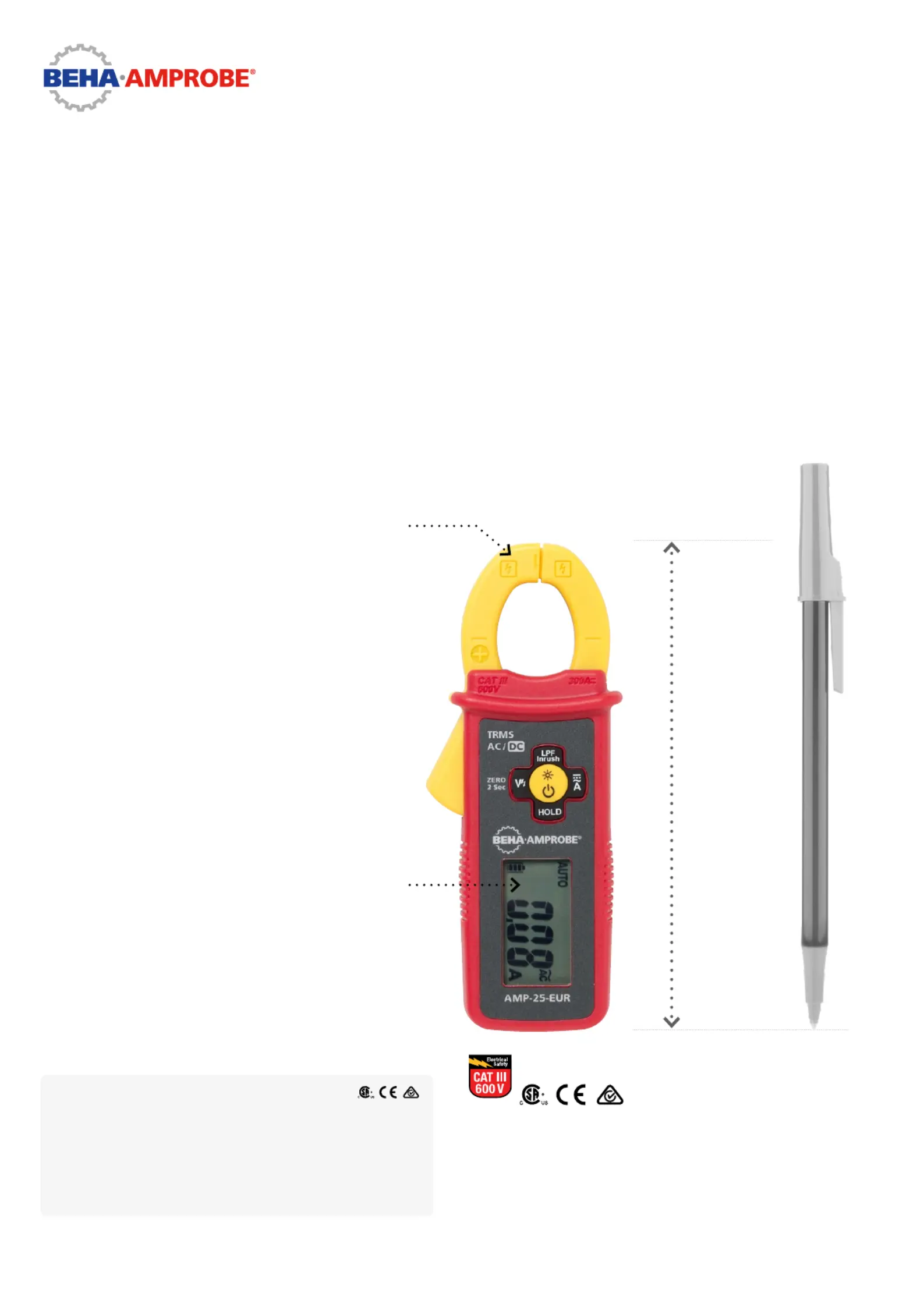

AMP-25-EUR

AC/DC TRMS Mini-Clamp

Convenience Without Compromise

Small size doesn’t mean small features. The Beha-Amprobe AMP-25-EUR Mini-Clamp is

pocket-sized, enabling quick and easy spot checks of electrical systems. With its rugged

construction and CAT III 600 V rating, the AMP-25-EUR is a must-have professional

troubleshooting tool for commercial electricians and electrical contractors.

The AMP-25-EUR is designed to measure AC/DC load current and inrush current for

motors. Essential features like True-RMS, non-contact voltage and low pass lter make

this clamp stand tall next to clamps twice its size. With the AMP-25-EUR, you never have

to sacrice performance for size.

AMP-25-EUR

AC/DC TRMS Mini-Clamp

Pocket-sized

14,7 cm height

Additional Features

• True-RMS for noisy environments provides

accuracy and dependability

• AC & DC current to 300 A (10mA resolution)

• Low pass filter for variable frequency drives

• Inrush current for motor start-up monitoring

• Non-contact voltage detection (NCV)

• Autoranging

• DCA zero data holdand

• Auto power off

• Safety Rated CAT III 600 V

Jaw opening

to 2,5cm (1 in)

Large LCD

backlit display

Beha-Amprobe

Division of Fluke Corp. (USA)

c/o Fluke Europe BV

In den Engematten 14

79286 Glottertal, Germany

Tel. +49 (0) 7684 - 8009-0

info@beha-amprobe.de

beha-amprobe.de

Beha-Amprobe

52 Huricanne Way

NR6 6 JB United Kingdom

e-mail: info@beha-amprobe.co.uk

beha-amprobe.com

Science Park Eindhoven

5110 NL-5692 EC Son

The Netherlands

Tel. +31 (0) 40 267 51 00

beha-amprobe.com

6011007B-ENG

beha-amprobe.com

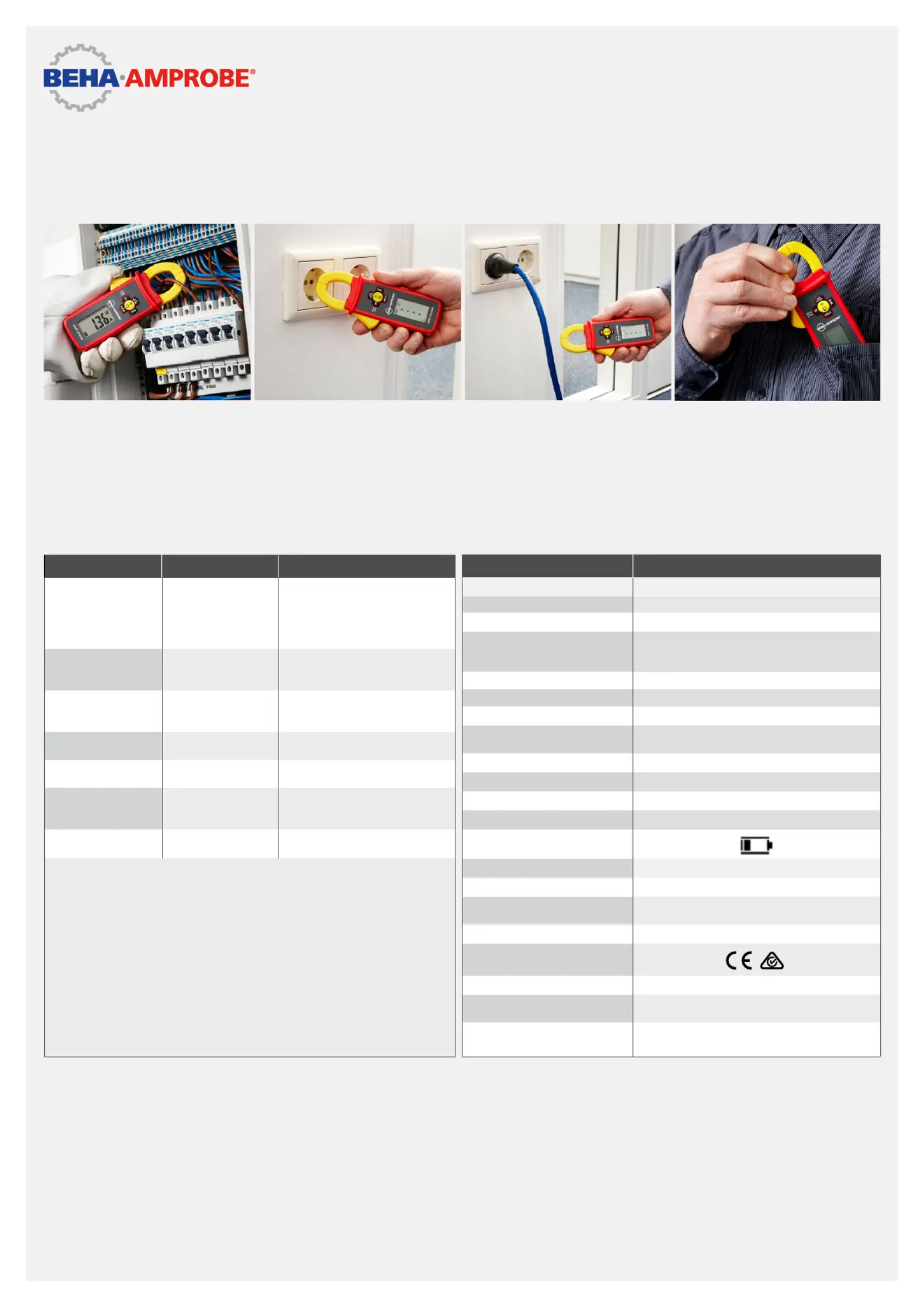

AMP-25-EUR Applications

Troubleshoot electrical systems

and measure AC/DC load current

on exposed wires in a breaker

panel.

The non-contact voltage (NCV) function checks

for voltage presence.

Pocket-sized for quick and easy

spot checks of electrical systems.

General Specications AMP-25-EUR

Display

Digital: 6000 counts, updates 2/sec

Range

Autoranging

Overrange Indication

OL or -OL

Operating Temperature

0°C to 30°C (32°F to 86°F), 80% RH≤

30°C to 40°C (86°F to 104°F), 75% RH≤

40°C to 50°C (104°F to 122°F), 45% RH≤

Operating Altitude

≤ 2000 m

Storage Temperature

-20°C to +60°C (-4°F to 140°F)

Pollution Degree

Temperature Coefcient

0.2 x (specied accuracy)/

°C (<18 °C, >28 °C)/ °F(<64.4°F, >82.4°F)

Vibration Requirement

MIL-PRF-28800F for A Class 2

Drop Proof

120 cm (4 feet)

Battery

Two 1.5 V LR44 size button batteries

Battery Life

20 hours typical

Low Battery Indication

Auto Power Off

Idle for 20 minutes

Overvoltage Category

CAT III 600 V

Safety Compliance

IEC/EN 61010-1, IEC/EN 61010-2-030,

IEC/EN 61010-2-032

EMC Compliance

IEC/EN 61326-1

Agency Approval

Dimensions (H x W x L)

147 x 60 x 32 mm (5.8 x 2.4x 1.3 in)

Weight

Approximately 140 g (0.31 lb)

with batteries installed

Jaw Opening & Conductor

Diameter

25 mm (1.0 in) max.

Feature AMP-25-EUR Best Accuracy

AC Current

(1)

60.00 / 300.0 A

+/-(1.5% + 5 LSD)

@ 50 to 100 Hz 3 A≥

+/-(2.5% + 5 LSD)

@ 100 to 400 Hz 3 A≥

DC Current

(2)

60.00 / 300.0 A

+/-(1.5% + 5 LSD)

@ 300 A range

Low Pass Filter

300.0 A

+/-(3.5% + 5 LSD)

@ 50 to 60 Hz 3 A≥

True-RMS

•

Inrush Current

•

Non-Contact

Voltage

•

Data Hold

•

Note

(1)

: Crest Factor (C.F.) may be up to 3.0 as 4000 counts.

For non-sinusoidal waveforms:

Add 3.0% for C.F. 1.0 to 2.0

Add 5.0% for C.F. 2.0 to 2.5

Add 7.0% for C.F. 2.5 to 3.0

Position error of clamp: +/- 1.5 % of LCD reading

(2)

Add 10 LSD in auto AC/DC sense mode

AMP-25-EUR Detailed Specifications

Accessories Included: Carrying case, two 1.5 V LR44 batteries and user manual.
