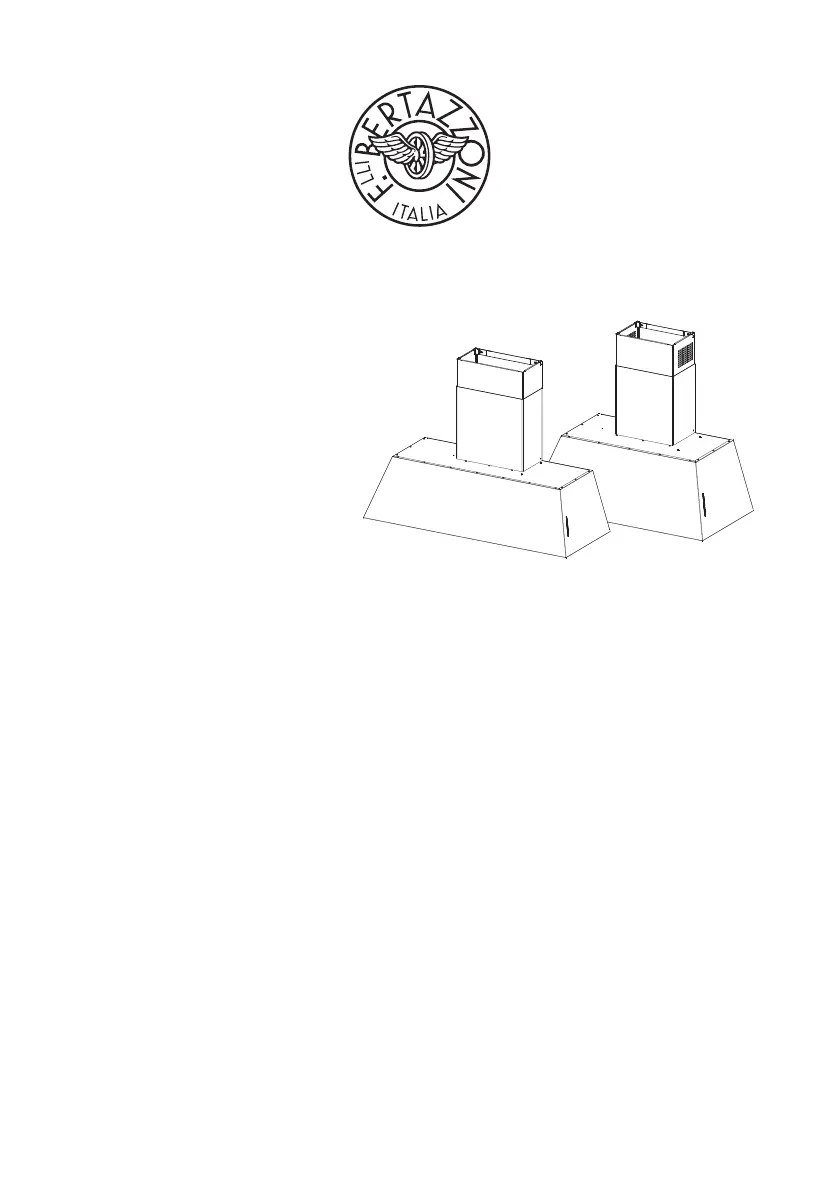

KMC30X

KMC30BI

KMC30NE

KMC36X

KMC36BI

KMC48NE

KMC48X

KMC48BI

KMC36NE

Installation Instructions

Use and Care Information

Instructions d'installation

Utilisez et d'entretien

READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START

INSTALLING THIS RANGEHOOD

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium setting.

b)AlwaysturnhoodONwhencookingathighheatorwhenambeingfood(i.e.Crepes

Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan

orlter.

d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A

RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

a)SMOTHERFLAMESwithaclose-ttinglid,cookiesheet,ormetaltray,thenturnofftheburner.

BECAREFULTOPREVENTBURNS.IftheamesdonotgooutimmediatelyEVACUATE

AND CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN - You may be burned.

c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will

result.

d) Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. Thereissmallandcontainedintheareawhereitstarted.

3. Theredepartmentisbeingcalled.

4. Youcanghttherewithyourbacktoanexit.

* Based on "Kitchen Firesafety Tips" published by NFPA

WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this

fan with any solid-state speed control device.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have any

questions, contact the manufacturer.

2. Before servicing or cleaning unit, switch power off at service panel and lock the

service disconnecting means to prevent power from being switched on acciden-

tally. When the service disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or

Explosive Materials and Vapors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

1. InstallationWorkAndElectricalWiringMustBeDoneByQualiedPerson(s)InAccor-

dance With All Applicable Codes And Standards, Including Fire-Rated Construction.

2. Sufcient air isneededfor propercombustionand exhaustingof gasesthrough

theue(chimney)of fuelburningequipment topreventbackdrafting.Followthe

heating equipment manufacturer's guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American

SocietyforHeating,RefrigerationandAirConditioningEngineers(ASHRAE),and

the local code authorities.

ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD

IS INSTALLED MUST BE SEALED.

This rangehood requires at least 24" of clearance between the bottom of the rangehood and the

cooking surface or countertop. This hood has been approved by UL at this distance from the cooktop.

This minimum clearance may be higher depending on local building codes. For gas cooktops and

combination ranges, a minimum of 30" is recommended and may be required.

Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface

or countertop. Consult the cooktop or range installation instructions given by the manufacturer before

making any cutouts.

MOBILE HOME INSTALLATION The installation of this rangehood must conform to the Manufactured

Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly Federal Standard for

Mobile Home Construction and Safety, Title 24, HUD, Part 280). See Electrical Requirements.

VENTING REQUIREMENTS

Determine which venting method is best for your application. Ductwork can extend either through the

wall or the roof.

The length of the ductwork and the number of elbows should be kept to a minimum to provide efcient

performance. The size of the ductwork should be uniform. Do not install two elbows together. Use

duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or oor opening

around the cap.

Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence

that greatly reduces performance.

Make sure there is proper clearance within the wall or oor for exhaust duct before making cutouts.

Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting

frame must be constructed.

WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.

CAUTION-Toreduceriskofreandtoproperlyexhaustair,besuretoductairoutside–Do

not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities.

4. Ducted fans must always be vented to the outdoors.

• Venting system MUST terminate outside the home.

• DO NOT terminate the ductwork in an attic or other enclosed space.

• DO NOT use 4" laundry-type wall caps.

• Flexible-type ductwork is not recommended.

• DO NOT obstruct the ow of combustion and ventilation air.

• Failure to follow venting requirements may result in a re.

WARNING

Cold Weather installations

An additional back draft damper should be installed to minimize backward cold air ow and a

nonmetallic thermal break should be installed to minimize conduction of outside temperatures as

part of the vent system. The damper should be on the cold air side of the thermal break. The break

should be as close as possible to where the vent system enters the heated portion of the house.
