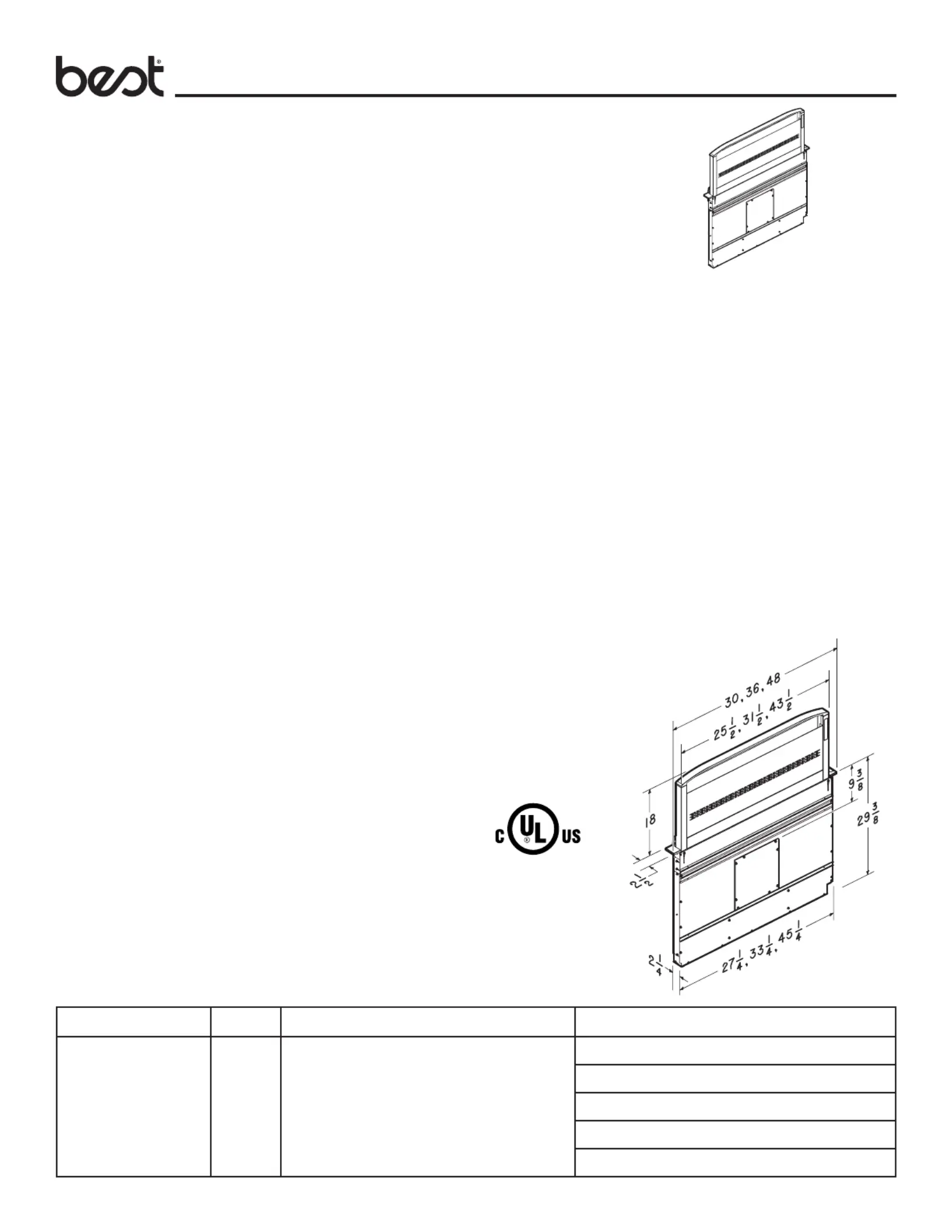

SPECIFICATIONS
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
Powerful VERTEX
TM
Complete Capture Design rivals the
finest island hoods. Compact design allows the choice of
many cooktop styles, free-standing and built-in ranges for
island or wall applications.
FEATURES
HOUSING:
• Galvanized steel construction
• Left, right, front, or rear discharge
• Flexible installation - can be used with cooktops, rangetops,
slide-in, and free-standing ranges
• 30", 36", or 48" widths - Fits standard-size cabinets (Some
blower configurations may require deeper cabinets.)
•
For indoor domestic use only
CHIMNEY ASSEMBLY:
• Quiet actuation linear drive system
• Chimney rises 18" when activated - ideal for tall pots
• Aluminum mesh filters - easy to remove, dishwasher-safe
• 304 stainless steel chimney - makes cleanup quick and
easy
• 4-speed capacitive-touch control, with delay off and filter
clean reminder
• Heat Sentry
TM
adjusts speed of blower in case of excess
heat
• 2-level LED task light. 7W (30"), 14W (36"), 18W (48")
• Up to 100% capture - equal to comparable island hoods
TRIM / DOOR:
• Low profile
• 304 stainless steel construction
• Articulating door to hide chimney when retracted
• Integrated, capacitive-touch UP button
BLOWER (sold separately):
• Compatible with quiet and efficient 600 cfm Flex Blower -
Model PF6
•
Permanently lubricated, thermally-protected motor
•
Neoprene, resilient anti-vibration mounts
• Can be mounted directly to downdraft or mounted remotely
• Uses standard 8" round duct
• Can be rotated on housing to exhaust left, right or down
• Compatible with in-line/exterior blower models:
EB6, EB9*, EB12*, EB15*, ILB3, ILB6, ILB9, ILB11*
*
Recommended models
TYPICAL SPECIFICATION
Downdraft blower system shall be Best
®
Model D49M30SB,
(D49M36SB), (D49M48SB).
Unit to have stainless steel housing. Chimney to rise 18" and have
304 stainless steel contruction for ease of cleaning.
Filters to be aluminum mesh, easy to remove and dishwasher-
safe.
Blower will connect directly to 8" round duct. Remote application
uses 1-7/8" x 19" to 8" round transition (1-7/8" x 19" to 10" round
transition), (8"/10" round plate). Blower to discharge left, (right),
(front), (rear).
Motor shall be mounted to blower assembly with grease resistant
anti-vibration mounts, be removable, and lifetime lubricated.
Unit to include Heat Sentry
TM
, to adjust blower speed in case of
excess heat.
Unit to include trim / door to hide chimney when retracted.
Downdraft system shall operate on 120 VAC and be able to be
plugged into a standard grounded outlet. It will have a 4-speed
blower control, with delay off, and filter clean reminder.
Downdraft shall include 2-level LED task lighting.
Downdraft blower system to be cULus listed.
SPECIFICATIONS
Volts: 120
Hz: 60
Amps: 3.2
Duct: 8" Round
CATTURA
TM
DOWNDRAFT
MODELS D49M30SB,
D49M36SB, D49M48SB
61D 99045243D
BEST Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
NOTE: Dimensions
shown are for reference
only. Before cutting out
countertop, refer to
instructions packed with
downdraft and cooktop.
Page 2

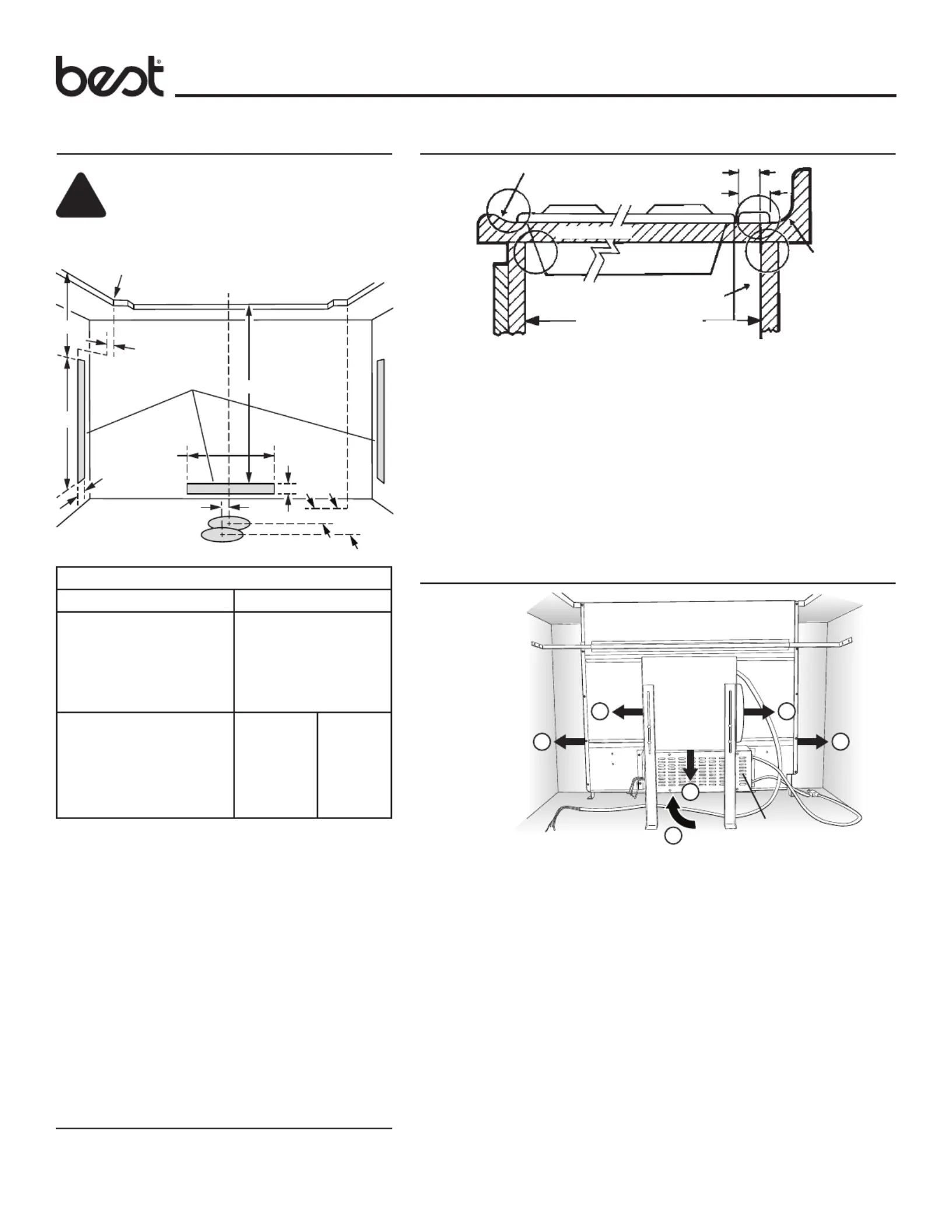

PLANNING
ELECTRICAL PANEL
The unit has a 30-in. power cord with a 3-pronged plug.
Plan to provide a grounded outlet within reach of this cord.
DOWNDRAFT
FRONT TO BACK
INSIDE CABINET DEPTH
DOWNDRAFT
B
A
COUNTER TOP
2-3/4"
2-1/2"
COOKTOP
DUCTWORK
The downdraft blower system is designed for use with 8" round ductwork using
a Flex Blower or 10" round ductwork using a remote blower. (Purchase blowers
separately.) Six (6) different discharge connections are available - with side-to-
side adjustment for accurate alignment of ductwork:
A = 8" Round, Left Discharge out of Flex Blower
B = 8" Round, Right Discharge out of Flex Blower
C = 8" Round, Down Discharge out of Flex Blower (Electrical Panel to be
mounted remotely)
D = 1-7/8" x 19", Left Discharge out of Housing to Remote Blower or Flex
Blower in remote location. Use 1-7/8" x 19" to 8" round transition, 1-7/8"
x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
E = 1-7/8" x 19", Right Discharge out of Housing to Remote Blower or Flex
Blower in remote location. Use 1-7/8" x 19" to 8" round transition, 1-7/8"
x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
F = 1-7/8" x 19", Rear Discharge out of Housing to Remote Blower or Flex
Blower in remote location. Use 1-7/8" x 19" to 8" round transition, 1-7/8"
x 19" to 10" round transition, or 1-7/8" x 19" ductwork as appropriate.
For best performance: Choose the ducting option which allows the shortest length
of ductwork and a minimum number of elbows and transitions. Check location
of floor joists, wall studs, electrical wiring or plumbing for possible interference.
A
B
C
D
E
F
HOUSING
FLEX
BLOWER
*
ELECTRICAL
PANEL
CABINET CUTOUTS
*
Remote
blowers
use 8" or
10" round
remote
discharge
plate instead
of flex
blower.
Refer to the cooktop installation instructions for dimensions of cooktop, countertop
cut-out, and cabinet requirements. However, it is recommended that oversized cabinets
be used for easier installation. Custom island designs need to account for deeper
cabinets - especially when installed with a range in front of the downdraft or when
mounting the blower behind the downdraft. You must also plan for an access door.
Cooktop depth can vary greatly from one to another. This may cause the fit of these
two appliances to be rather tight.
Pay special attention to the areas of potential interference highlighted above. A
countertop with (A) a raised lip and/or (B) a backsplash may not allow enough flat
countertop for a proper installation. Note that 2-3/4" of flat countertop is required
behind cooktop and that 2-1/2" is necessary between the back edge of the cooktop
and the inside of cabinet back.
!
CAUTION: BEFORE CUTTING HOLE IN
CABINET FOR DUCTWORK, check for
interference with floor joists, wall studs,
electrical wiring, or plumbing.
Use the dimensions in the above illustration to help plan
how and where to provide duct access through your
cabinet. Generally, 1-7/8" x 19" rectangular duct will be
used through left, right, and back of cabinet - while 8"
round duct will be used through cabinet floor.
For left, right, or rear exhaust:
Allow at least 18" for transition and elbow or blower.
For left / right exhaust:
A 30" deep cabinet is recommended to align properly
with flex blower. Flex blower can be mounted to rear
cabinet wall or to a platform / frame (not provided) on
the base of the cabinet floor. (See flex blower instruc-
tions).
Cabinet depths of 24" to 30" are required - depending
on the type of cooking appliance.
INSTALLATION
CENTER LINE
HOLE
FOR
1 ” X 19”
DUCT &
TRANSITIONS
INSIDE
CABINET BACK
INSIDE
CABINET FLOOR
1½”
21”
centered
4”
5 ”
/
8
7
2”
21”
4”
A
B
/
8
7
REAR CORNER OF
COOKTOP CUT-OUT
24¾”
Hole in Cabinet Floor
Dimension A Dimension B
Using Flex Blower (Model
PF6 & 8" round duct
straight down through
cabinet floor.)
(1½" left of installation
center line)
Using Exterior or
In-Line Blower &
90
0
Duct Elbow
(on installation
center line)
5-5/8 inches
7-5/8
inches
(Model
432 - 8"
round
elbow)
8-5/8
inches
(Model
418 - 10"
round
elbow)
Page 3

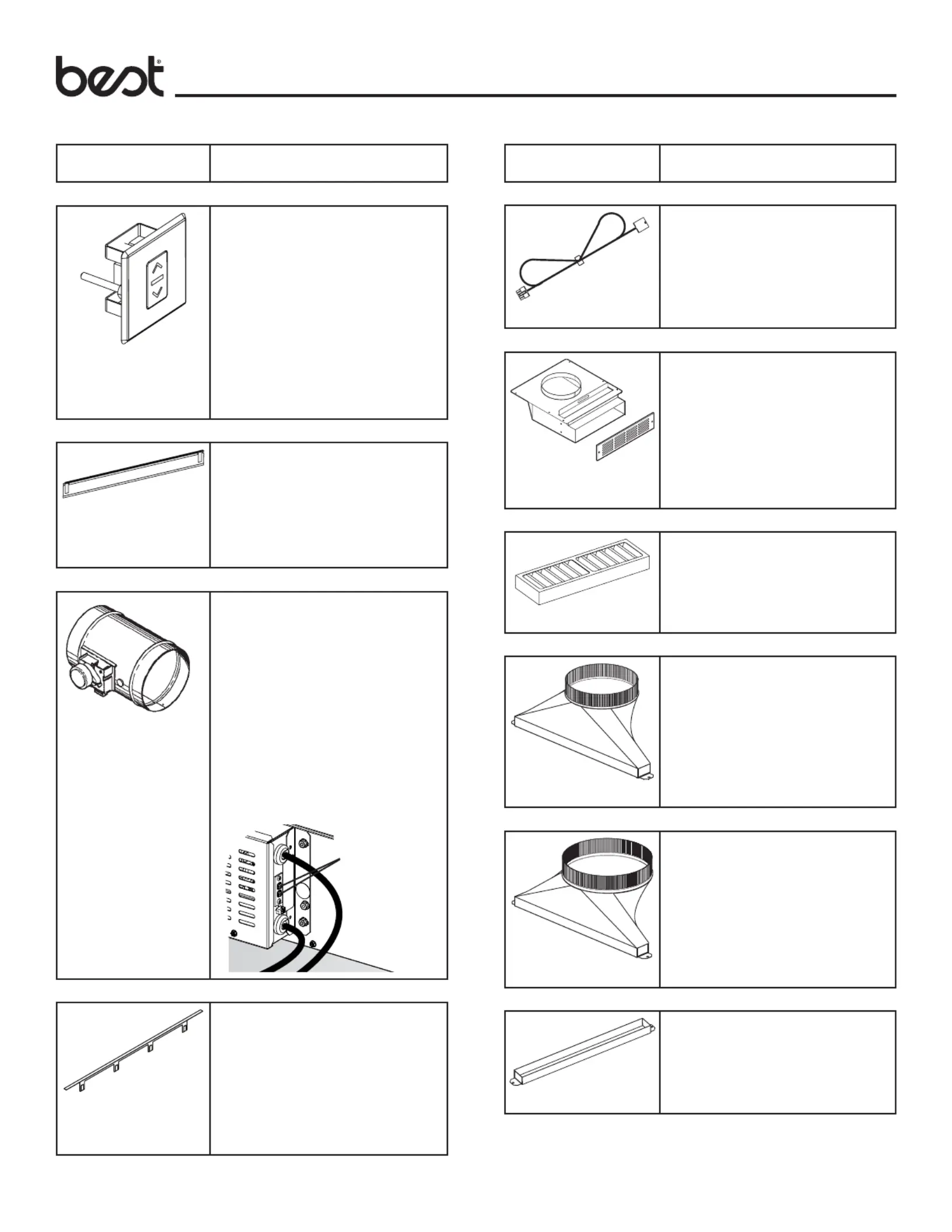

OPTIONAL ACCESSORIES
OPTIONAL
ACCESSORY
DESCRIPTION /
APPLICATION
MODEL ACRD
REMOTEUP/DOWN CONTROL
Use when you cannot reach the UP/
DOWN Button on the downdraft chimney.
Can be located on counter top, face of
cabinetry or on the side cabinet of an
island. Cut-out size: 2¼" H x 2" W.
Cannot be used where remote control
will interfere with cooking, where hot
pans could be set, or where hot liquids
could be spilled on the control.
Remote wiring connects with 6-pin con-
nector on control box.
MODELS
ATSKD30
ATSKD36
ATSKD48
GAS COOKTOP SEAL KIT
Recommended for use with all gas
cooktops. Includes trim bracket and
trim seal.
30", 36" & 48" widths.
MODELS
MD6T
MD8T
MD10T
MAKE-UP AIR DAMPER
Use to provide make-up air when called
for to keep the home comfortable by
allowing the downdraft to operate at
optimum levels.
Directwire design works with select
BEST
®
downdrafts to balance indoor
air pressure by providing interlocked
make-up air; damper opens automati-
cally when the range hood is activated
8" round & 10" round diameters.
Connects to 2 CONTACTS on
ELECTRICAL PANEL.
MAKE-UP
AIR DAMPER
CONTACTS
MODELS
ATKD30SB
ATKD36SB
ATKD48SB
RANGE TRIM KIT
Use with free-standing range - where a
gap is present between back of range
and downdraft.
30", 36" & 48" widths.
OPTIONAL
ACCESSORY
DESCRIPTION /
APPLICATION
MODEL AEWD5
EXTENSION CABLE - 5-FT.
Use where electrical panel is remotely
mounted. Extends electrical panel ca-
ble an additional 5-feet.
MODEL ANKD
NON-DUCT
RECIRCULATING KIT
Use where ducting is not feasible or
available. Mount to toe kick or base of
a cabinet and attach directly to Model
PF6 Flex Blower using 8" round duct.
Kit can be rotated so that the exhaust
is not directly at your feet. Includes
recirculation filter and decorative cover
plate.
MODEL AFCD
RECIRCULATION FILTER
REPLACEMENT
Replacement filter for ANKD Non-Duct
Recirculating Kit. Use to effectively
capture cooking contaminants.
MODEL AVDKD8
1-7/8" X 19" TO 8" ROUND
TRANSITION
Rectangular to 8" round transition for
left, right, or rear exhaust - using Model
PF6 Flex Blower. Can be attached
to downdraft unit or rectangular duct
(AEDD2).
MODEL AVDKD10
1-7/8" X 19" TO 10" ROUND
TRANSITION
Rectangular to 10" round transition for
left, right, or rear exhaust - using Model
PF6 Flex Blower. Can be attached
to downdraft unit or rectangular duct
(AEDD2).
MODEL AVDKD219
RECTANGULAR ADAPTOR
FOR 1-7/8" X 19"
Use to connect 1-7/8" x 19" rectangular
duct directly to downdraft when using
side or rear exhaust.
