Sida 1/6

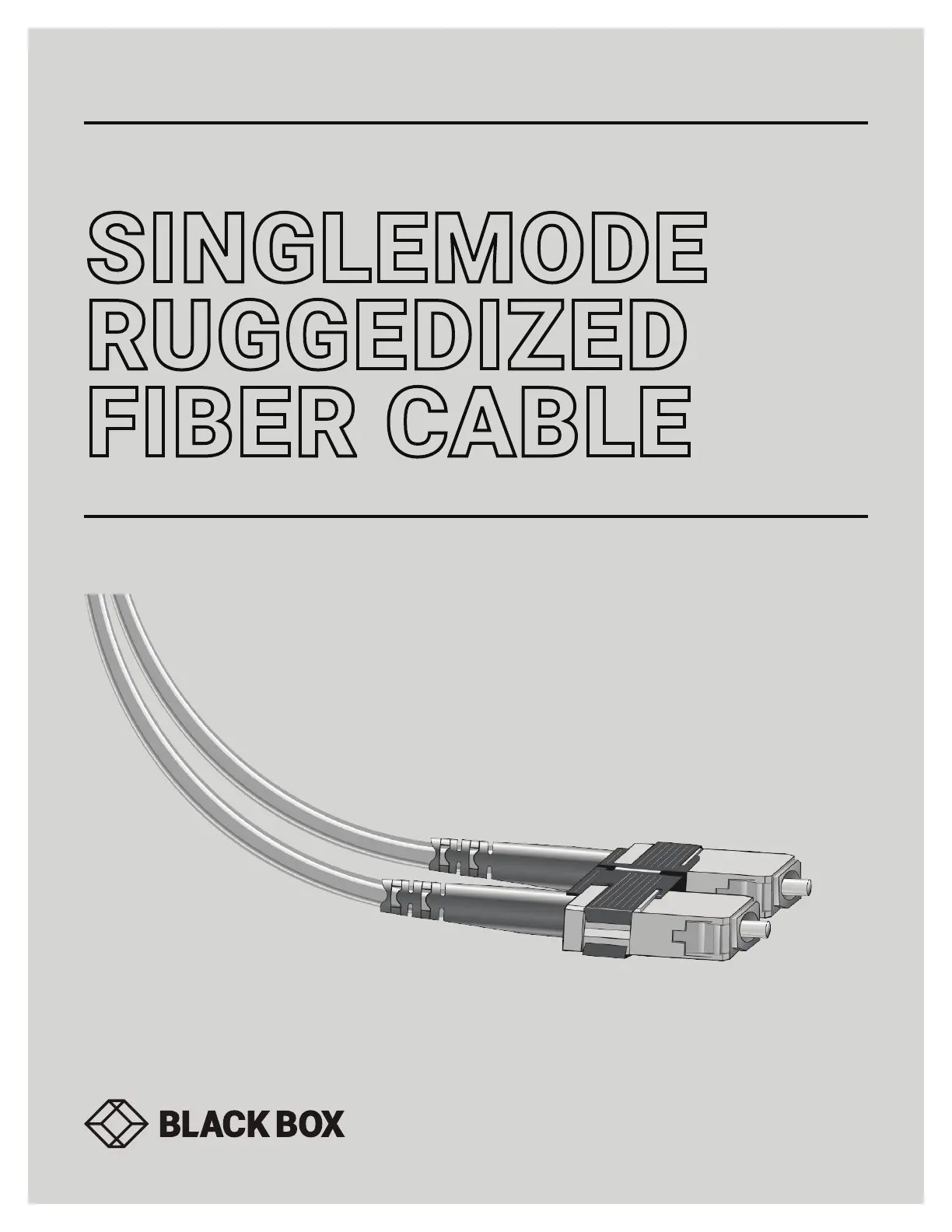

SINGLEMODE

RUGGEDIZED

FIBER CABLE

EFE080 THROUGH EFE088 SERIES

TECHNICAL SUPPORT AT 00800.2255.2269 OR VISIT BLACKBOX.EU

DATA SHEET

00800.2255.2269 BLACKBOX.EU

INTRODUCTION

Black Box ruggedized patch cords are constructed with helical

stainless steel tape over a buffered ber surrounded by a layer

of aramid and stainless steel mesh, and feature a Low Smoke

Zero Halogen (LSZH) jacket. The cable provides protection

against kinking and crushing (two common problems when

installing ber), yet remains exible and compact.

Enhanced armored patch cords are used in customer premises,

central ofces and in indoor harsh environments, and provide

exible interconnection to active equipment, passive optical

devices and cross-connects. Our patch cords are terminated

with premium connectors, all of which are quality tested to meet

international standards.

APPLICATIONS

§§DATACENTER AND COLOCATION

§§CATV/VIDEO

§§PASSIVE OPTICAL NETWORK PON

§§FTTX

§§ATM, SONET AND WDM

§§MILITARY APPLICATIONS

FEATURES

§§TWICE AS STRONG AS STANDARD DUPLEX PATCH CABLES

§§CRUSH AND KINK RESISTANT, YET FLEXIBLE AND COMPACT

§§LESS PRONE TO DAMAGE DURING AND AFTER INSTALLATION.

§§CHOOSE FROM LC, SC, ST, AND FC CONNECTORS

§§LOW SMOKE ZERO HALOGEN (LSZH) JACKETING

§§AVAILABLE IN SINGLEMODE AND MULTIMODE FIBER TYPES

§§AVAILABLE IN STANDARD AND CUSTOM LENGTHS

§§RE ACH, SVHC, AND ROHS MATERIALS COMPLIANT

SINGLEMODE RUGGEDIZED FIBER CABLE DATA SHEET

OVERVIEW

SPECIFICATION COMPARISON CHART

EFE080 EFE081 EFE082 EFE083 EFE084 EFE085 EFE086 EFE087 EFE088

LC/LC LC/SC LC/ST FC/ST FC/SC FC/FC ST/ST ST/SC SC/SC

1-m 1-m 1-m 1-m 1-m 1-m 1-m 1-m 1-m

2-m 2-m 2-m 2-m 2-m 2-m 2-m 2-m 2-m

3-m 3-m 3-m 3-m 3-m 3-m 3-m 3-m 3-m

5-m 5-m 5-m 5-m 5-m 5-m 5-m 5-m 5-m

10-m 10-m 10-m 10-m 10-m 10-m 10-m 10-m 10-m

15-m 15-m 15-m 15-m 15-m 15-m 15-m 15-m 15-m

20-m 20-m 20-m 20-m 20-m 20-m 20-m 20-m 20-m

For complete ordering information, see page 5.

COMPARISON CHART

00800.2255.2269 BLACKBOX.EU

SINGLEMODE RUGGEDIZED FIBER CABLE DATA SHEET

SPECIFICATIONS

SPECIFICATIONS FOR SINGLEMODE RUGGEDIZED FIBER CABLE

CONNECTORS

OPTICAL PERFORMANCE SINGLEMODE CONFORMANCE

IL MAX/MASTER (ACCEPTANCE) 0.25 dB IEC 61300-3-4

AVE/MASTER 0.18 dB IEC 61300-3-4

AVE/RANDOM 0.18 dB IEC 61300-3-34

RETURN LOSS SINGLE MODE UPC/APC 55/65 dB IEC 61300-3-6

FIBER CHARACTERISTICS

ATTENUATION (DB/KM) SINGLE MODE 0.38 @ 1310 nm / 0.25 @1550 nm

CHROMATIC DISPERSION (PS/NM X KM)

SINGLE MODE

3.0 @ 1310 nm / 18.0 @1550 nm

CABLE SPECIFICATIONS

CABLE MATERIAL LSZH

STRENGTH MEMBER Aramid

CRUSH (N) SHORT TERM 3000

CRUSH (N) LONG TERM 200

OPERATING TEMPERATURE (°C) -20 to +60° C

FIRE SPECIFICATION IEC 60332-1
