Distribute HDMI video out

to four displays.

1 x 4 HDMI Splitter 4K

VSP-HDMI1X4-4K

HDMI Splitter 4K User’s Manual

4. Operation

The quality of the output signal depends on the quality of video

source, cable, and display device used. Low-quality cables degrade

output signals causing elevated noise levels. Use the proper cable

and make sure the display device can handle the resolution and

refresh rate selected. Interference from nearby electrical devices

can adversely affect signal quality.

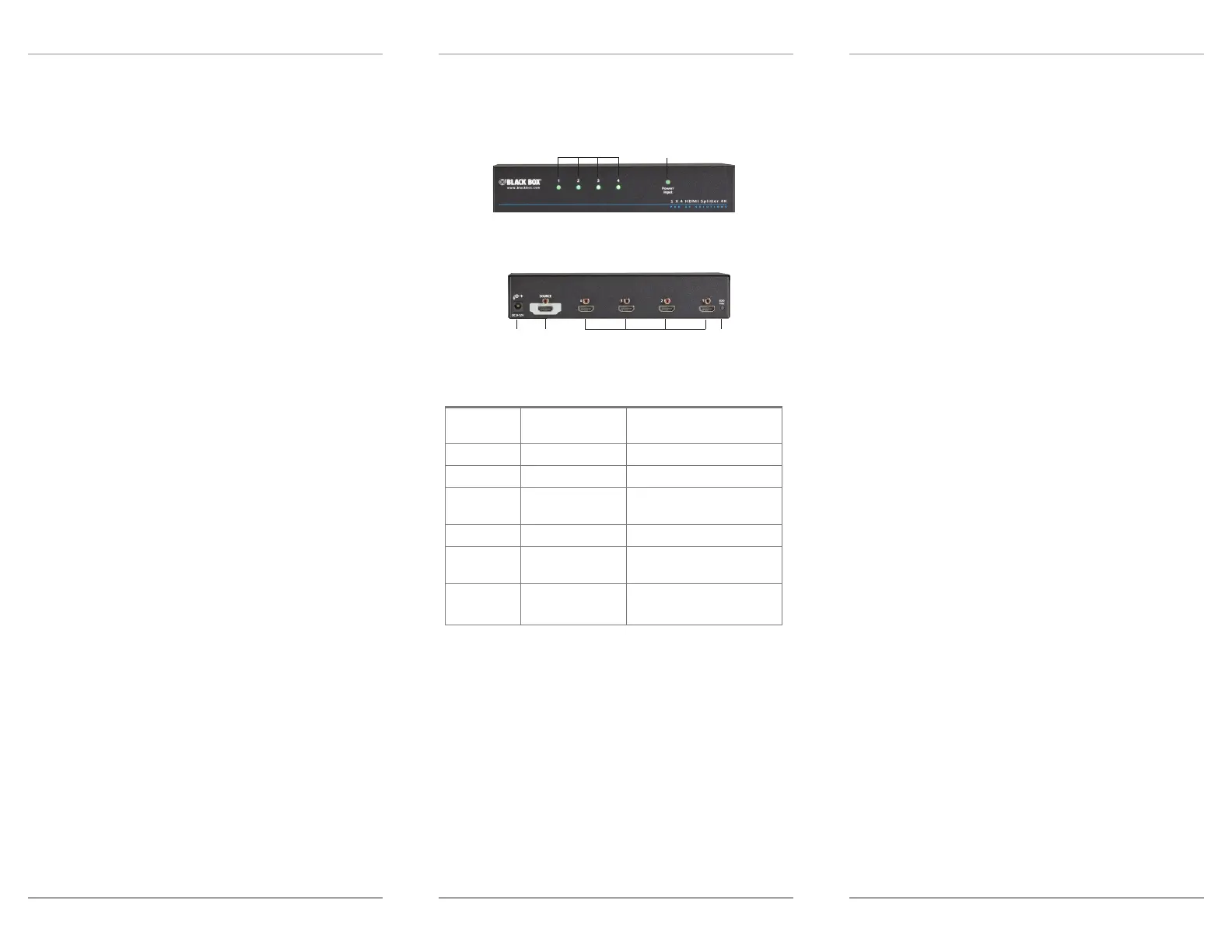

Table 4-1. LED indicator functions.

LEDs 1, 2, 3, or 4 Status

Flashing green Power ON to Port 1, 2, 3, or 4

Steady green Port 1, 2, 3, or 4 is outputting

the data

5. Troubleshooting

Symptom: Video does not display

Possible Cause: Wrong installation process.

Solution: The video splitter requires at least one monitor

connection before powering on the source device.

Symptom: Erratic behavior

Possible Cause: Splitter may not receive enough power.

Solution: Check the power adapter attached to the splitter to

make sure it matches the system specifications, and is functioning

properly.

Symptom: Not receiving picture.

Possible Cause: The signal source may require a display device that

is HDCP compliant.

Solution: Check if the display monitor is HDCP compliant. HDCP

prevents the transfer of digital content to unauthorized HDMI

devices.

Possible Cause: The display monitor is added to the unit by

hot-plug, but the video source may not support hot-plug.

Solution: Check if the video source supports hot-plug. If it doesn’t,

shut down the source device and reboot it again.

Possible Cause: The attached devices are not connected properly.

Solution: Check if you connected your components correctly.

vsp-hdmi1x4-4k_rev1

1. Specifications

Enclosure Metal

TMDS Clock

Rate

300 MHz

Video

Resolution

(Maximum)

4K x 2K (3840x 2160);

Full HD 1080p (1920 x 1080)

User Controls (1) EDID Copy button

Connectors Input: (1) HDMI female,

Output: (4) HDMI female

Indicators (1) Power Input Status LED;

(4) Video Output LEDs

Power Consumption:

9–12 VDC, 130 mA

Dimensions 1.6"H x 8.6"W x 5.1"D

(4.2 x 21.8 x 13 cm)

Weight 0.627 lb. (0.285 kg)

NOTE: The splitter is not 4K compatible when using

Intel

HD 4400 based services.

HDMI Splitter 4K User’s Manual

Disclaimer:

Black Box Network Services shall not be liable for damages of any

kind, including, but not limited to, punitive, consequential or cost

of cover damages, resulting from any errors in the product

information or specifications set forth in this document and

Black Box Network Services may revise this document at any time

without notice.
