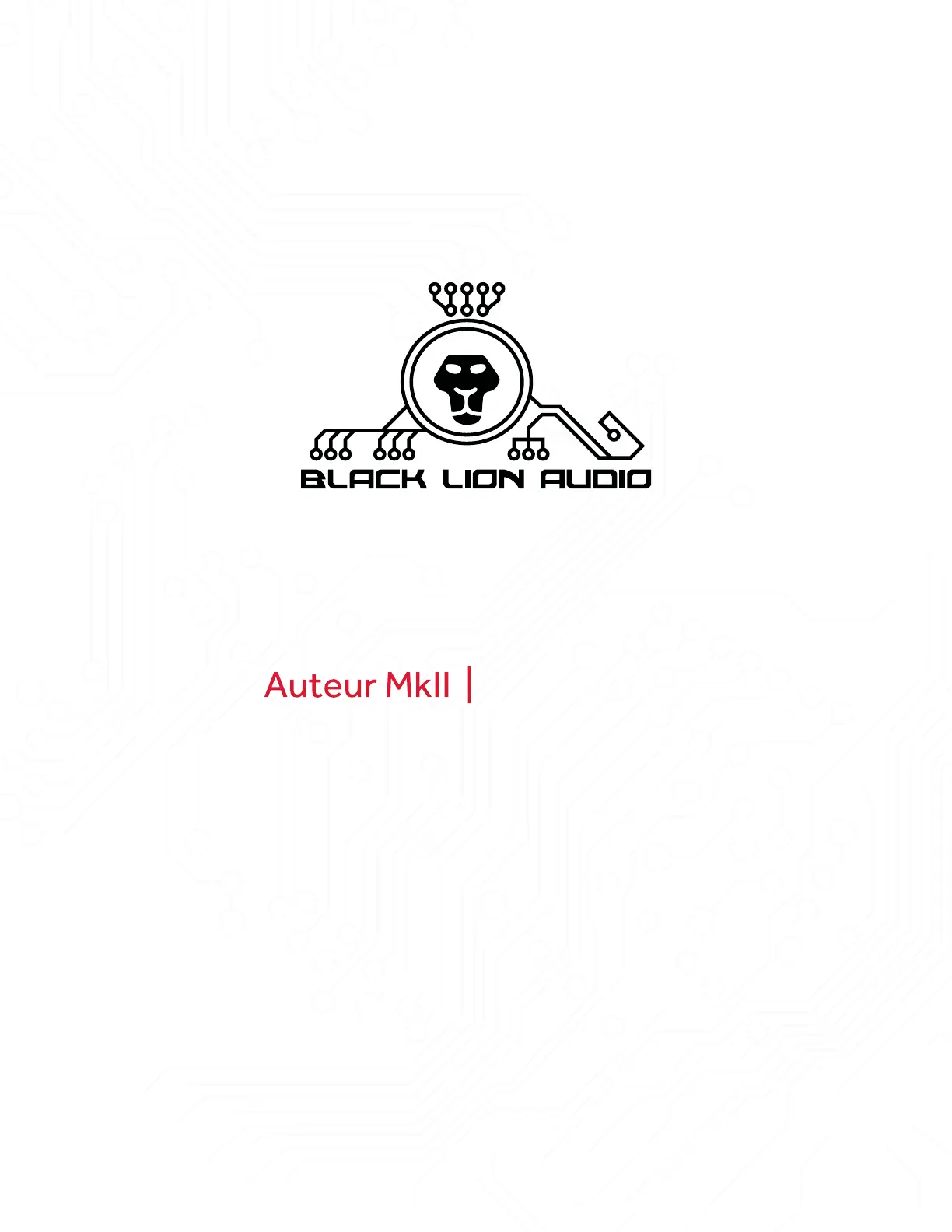

Auteur MkII | User Manual
The Auteur has been a staple preamp in studios around the world for many years. It
has become the go-to choice for bridging the gap between clean, transparent preamps
and those with lots of color and bite. The Auteur MkII is the next step in perfecting this
combination of vintage and modern sound at an aordable price!
The Auteur MkII has a revamped gain stage that results in higher gain, lower noise, lower
distortion, and a more extended frequency response than the original design. Use it on
drums for rotund results. Throw it on vocals for a silky polish. Hear guitars soar like never
before. No matter what you use it on, the Auteur MkII will do the job like a pro!
INTRODUCTION
SPECIFICATIONS
Mic Section
• Max Microphone Input Level: +1dBu
• Input Impedance: 6000Ω
• Pad: 10dBu
• Gain (no pad): +14dB to +65dB
• Equivalent Input Noise (noise oor):
-108dB
• THD+N (@ +4dBu output):
• .0033% @ +10dBu Gain
• .0054% @ +24dBu Gain
• .0112% @ +32dBu Gain
• .027% @ +40dBu Gain
• .078% @ +50dBu Gain
• .21% @ +62dBu Gain
• Bandwidth (1kHz, 150Ω source,
unweighted): 10Hz to 30kHz
Output Section
• Max Output Level: +26dBu
• Output Impedance: 150Ω
Power Supply
• 24VAC, 500mA External Supply
Product Dimensions
• 9.5” x 6.5” x 1.75”
Product Weight
• 3.2 lbs
Shipping Dimensions
• 13” x 11” x 5”
Shipping Weight
• 5.5 lbs
FEATURES
• Dual Channel
• Ultra High-Speed Input Stages
• Edcor Output Transformers
• 65dB Gain
• Extended Frequency Response
• Low Distortion & Noise
• Phantom Power
• Phase Switch
• 10dBu Pad
• XLR Microphone Input
• TRS Line Output (balanced)
• Auteur MkII
• Power Supply (wall wart)
• ½ Rack Connector Plate
PACKAGE CONTENTS
Auteur MkII | User Manual 3
1. XLR IN: balanced, mic-level XLR input
2. TRS OUT: balanced, line-level TRS output
3. GND: internal chassis ground
4. AC IN: 24VAC input jack (only use a BLA-specied power supply)
BACK
1 12 2 3 4
1. POWER: ip switch up to turn preamp on, ip switch down to turn preamp o
2. 48V: engage to turn phantom power on, disengage to turn phantom power o
3. GAIN: clockwise rotation yields an increase in output signal amplitude, counterclockwise rotation yields a
decrease in output signal amplitude
4. PHASE (Ø): engage to adjust input signal polarity by 180°, disengage to leave input signal polarity
unchanged
5. PAD: engage to reduce input signal amplitude by 10dBu, disengage to leave input signal amplitude
unchanged
FRONT
1 2 23 34 45 5
Channel 1 Channel 2
Channel 2 Channel 1
Auteur MkII | User Manual 4
