Sida 1/18

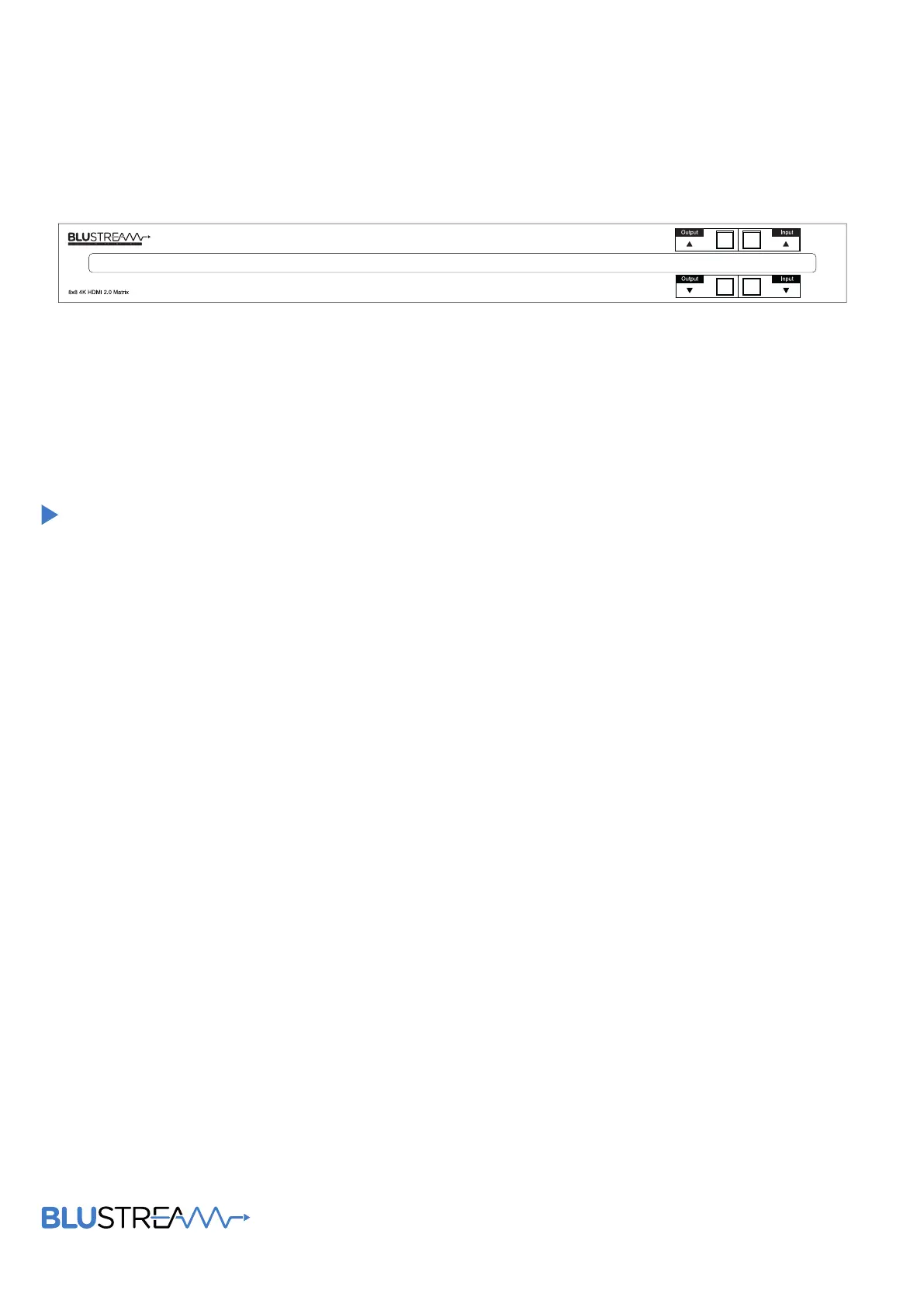

CMX88AB

User Manual

CMX88AB USER MANUAL

02 www.blustream.co.uk

Surge protection device

recommended

This product contains sensitive

electrical components that may be

damaged by electrical spikes, surges,

electric shock, lightning strikes, etc. Use

of surge protection systems is highly

recommended in order to protect and

extend the life of your equipment.

Contents

Thank you for purchasing

this product.

For optimum performance and safety,

please read these instructions care-

fully before connecting, operating or

adjusting this product. Please keep this

manual for future reference.

Introduction 03

Features 03

Panel Descriptions 04

Control Ports 05

Matrix Front Panel Controls 06

Infrared Control 06

Infrared Remote Control 07

Audio Breakout 08

Automatic Video Resolution Conversion 08

Adjusting EDID Settings 08

Application Diagram 09

Specifications 10

Package Contents 10

Maintenance 10

RS-232 and Telnet Commands 11-12

Infrared Commands 13-15

Web Browser Interface 16

PC Configuration Soware 16

CMX88AB USER MANUAL

contact support@blustream.co.uk / support@blustream.com.au

Our Contractor CMX88AB 4K HDMI Matrix oers unprecedented

performance and value for the custom installation market. The

CMX88AB supports HDMI2.0 with HDCP2.2, allowing distribution of

eight HDMI sources to eight displays. This enables all sources to be

viewed as required within a matrix configuration. The unit transmits

all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 8-Way

matrix also includes audio breakout, EDID management and a web

browser interface module for control and configuration of the matrix.

Introduction

FEATURES:

• Features 8x HDMI inputs which can be independently routed to 8x HDMI outputs

• Supports 4K UHD video including HDR (up to 4K @60Hz 4:4:4)

• Independent video down conversion on all HDMI outputs allowing a display only capable of supporting

lower 4K video resolutions (4K 60Hz 4:2:0) to receive 4K 60Hz 4:4:4 video content while still showing

maximum original 4K UHD resolution on remaining outputs

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and

DTS-HD Master Audio transmission

• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently

• Web interface module for control and configuration of the Matrix

• Control via front panel, IR, RS-232 & TCP/IP

• 3rd party drivers available for major home control brands

• Advanced EDID management

• HDCP 2.2 compliant
