en Installation instructions
1
2
3
2
4
5
6
7
8
en
Safe installation
Follow these safety instructions when in-
stalling the appliance.
¡Read this instruction manual carefully.
¡The images shown in these instructions
are for guidance only.
¡The appliance can only be used safely if it
is correctly installed according to the
safety instructions. The installer is re-
sponsible for ensuring that the appliance
works perfectly at its installation location.
WARNING‒Risk of explosion!
Escaping gas may cause an explosion.
▶All Installation, connection, regulating and
conversion work to a different gas type
must be carried out by an authorised pro-
fessional while taking into account the re-
spective applicable regulations and legal
requirements as well as the regulations
regarding the local electricity and gas
suppliers. Special attention must be paid
to the provisions and guidelines that are
applicable for the ventilation.
3
¡Ensure that the kitchen is sufficiently vent-
ilated, in particular when operating the
gas cooking appliance.
¡Do not connect the appliance to an ex-
haust gas system for combustion
products.
¡Never install the appliance in boats or in
vehicles.
¡The warranty applies only when using the
appliance as intended.
¡Before installing the appliance, check that
the local conditions of the supplier are
compatible with the appliance settings
specified on the rating plate (type of gas
and pressure, power, voltage).
¡Secure the power cord to the cabinet to
prevent it from touching hot parts of the
oven or hob.
¡Before any work is carried out on the ap-
pliance, switch off the power supply and
the gas supply.
¡Connect the appliance to the power sup-
ply using the earth.
¡Do not make any changes to the inside of
the appliance. If required, contact our
technical customer service.
Town gas connection
The supplied governor must be installed.
Model Working pressure
PRA3A6B70K 10mbar
PRB3A6B70K 8mbar
Before installing
¡This appliance is a class 3 appliance in accord-
ance with the EN 30-1-1 standard for gas appli-
ances: Built-in appliance.
¡This appliance can be combined with other hobs
of the same brand by using the connection ac-
cessory. See catalogue.
¡The unit in which the appliance is installed must
be stable and secured appropriately.
¡The units in the vicinity of the appliance, the lamin-
ated panels and the adhesive with which they are
secured must be made of non-flammable, heat-
resistant materials.
¡Do not install this appliance above refrigerators,
washing machines, dishwashers or similar.
¡The appliance must only be installed on an oven
with forced ventilation. Check the dimensions of
the oven in the installation instructions for the
oven.
¡If you install an oven underneath the hob, the work
surface thickness may differ from the dimensions
given in these instructions. Take note of the in-
formation in the oven installation instructions.
¡If you install an exhaust air fan or an extractor
hood, refer to the installation instructions for these.
Always observe the minimum vertical distance to
the hob.

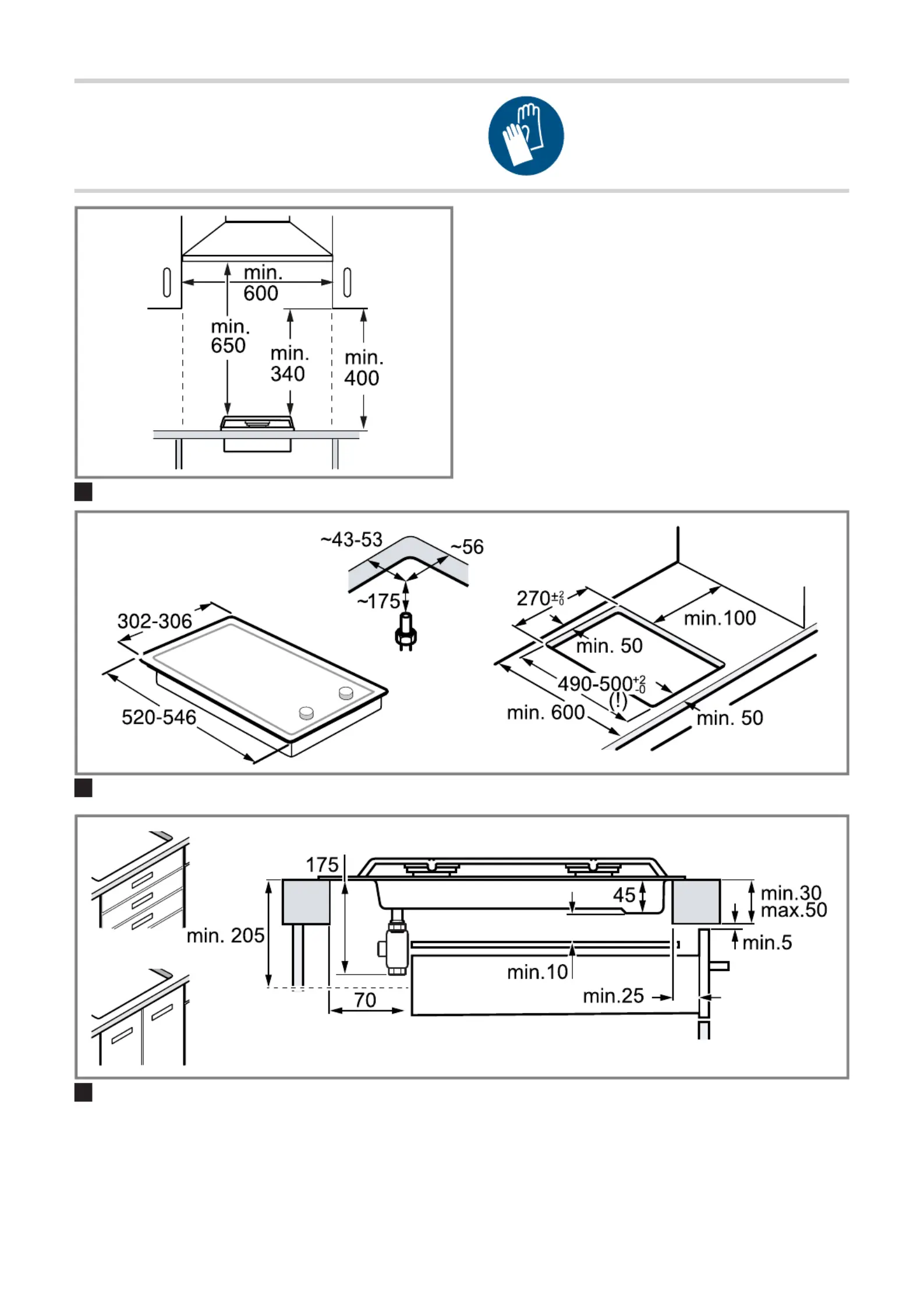

→Fig.
1
Preparing the units
¡Make a cut-out in the worktop with the required di-
mensions.
¡In recesses of 500 mm, the appliance must be in-
stalled on the front edge of the recess. →"Posi-
tioning the appliance", Page3
→Fig.
2
¡Seal the cut surfaces of wooden work surfaces
with a special glue seal to protect them from mois-
ture.
¡If there is no built-in oven underneath the hob, in-
sert a non-flammable separator (e.g. metal or ply-
wood) at a distance of 10 mm from the hob. This
prevents access to the underside of the hob. The
distance from the intermediate floor to the mains
connection for the appliance must be at least 10
mm.
→Fig.
3
Positioning the appliance
Note:Do not remove the adhesive seal fitted on the
lower edge of the hob. The adhesive seal prevents
the penetration of liquids.
Do not use silicone to bond the appliance to the
worktop.
1. Position the hob with the upper side facing down
on a flat, stable surface.
2. Loosen the screws on the brackets so they can
turn freely. You do not need to fully undo the
screws on the brackets.
→Fig.
4
3. Turn the hob around and insert it into the recess.
Insert the hob in the front of the recess.
→Fig.
5
4. Turn the brackets and tighten them fully.
→Fig.
6
The position of the brackets depends on the work-
top thickness.
Removing the appliance
1. Disconnect the appliance from the electricity and
gas connections.
2. Unscrew the brackets and proceed in reverse or-
der.
Connecting the gas
Observe the country-specific guidelines.
CAUTION‒Risk of explosion!
A gas leakage may cause an explosion.
▶If any connection is handled, check the seal.
¡Arrange the gas connection so that the shut-off
valve is accessible.
¡Ensure that the information on the rating plate re-
garding the gas type and gas pressure complies
with the local connection conditions.
¡Connect the appliance to a fixed gas pipe or a
flexible metal pipe.
¡The flexible metal pipe must not come into contact
with the moving parts of the unit in which the ap-
pliance is installed (e.g. a drawer) and must not
be routed through any spaces which might be-
come obstructed.
¡Gas connection on the appliance: G 1/2.
Town gas connection
The supplied governor must be installed.
Spare parts for gas connection
You can obtain the gas connection parts from the
technical customer service.
Gas connection R 1/2
→Fig.
7
