Sida 1/28

English

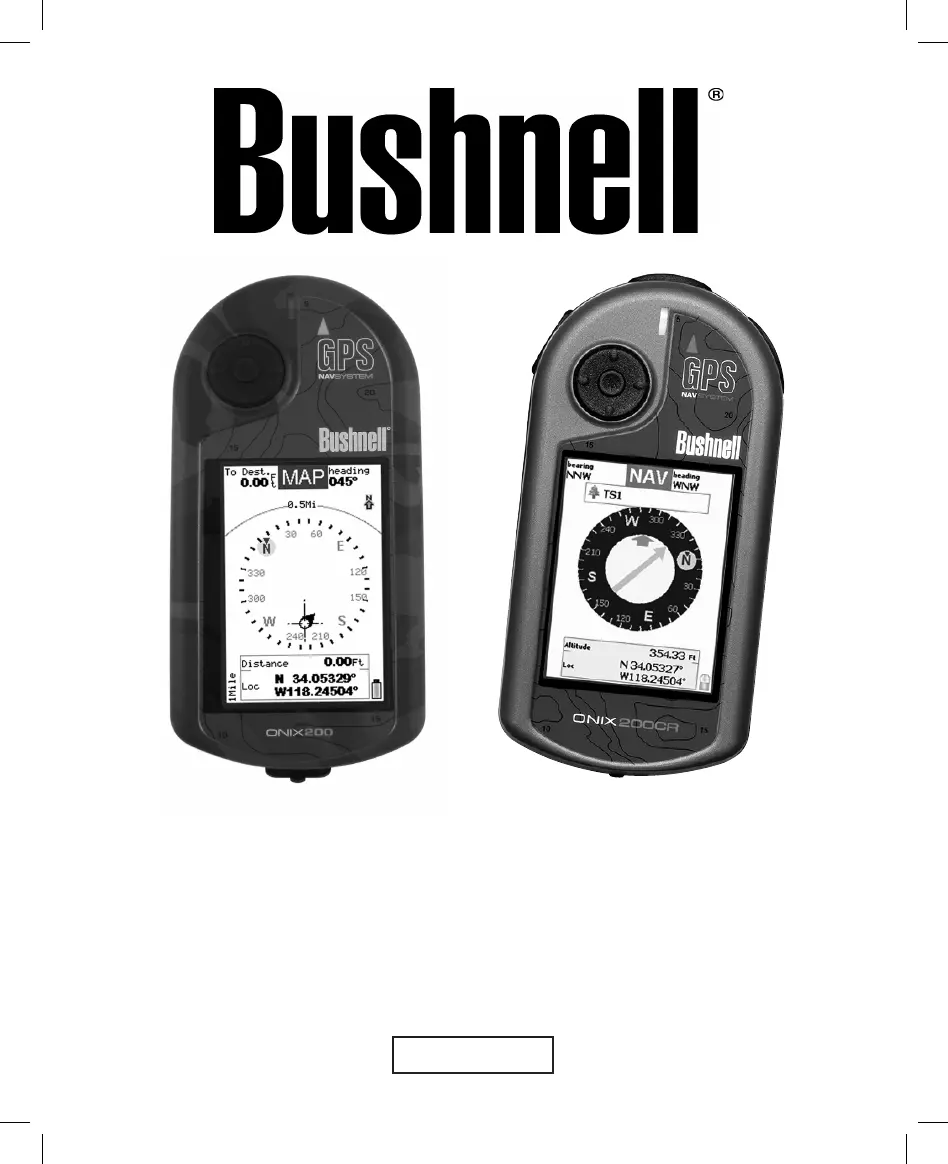

ONIX 200 / 200CR

GPS RECEIVER

Quick Start Guide

Model #s: 362000/362005 Lit# 98-0908/07-07

Grayscale Display Color Display

Thank you for purchasing the Bushnell ONIX Series! The ONIX has been designed to be much

simpler to operate than other handheld GPS receivers, while offering exclusive and unique features

such as the ability to layer satellite photos or topographic maps (downloaded from BushnellGPS.

com) right over your trail map screen, providing a “real world” frame of reference that other GPS

units lack. Just press the “hot” button on the top of the ONIX to quickly see your current location

relative to the other map elements. Easily create and store user proles that let you store your most

frequently used personal setups, including satellite photos of your favorite camping or hunting

area. Bushnell’s exclusive SafeTrack™ battery conservation feature extends your battery life

while maintaining GPS contact, so you can check your current location anytime without the restart

delay typical of other GPS receivers. You will nd your ONIX to be an invaluable companion for

all your outdoor adventures.

Before using your new ONIX, please read the instructions contained in this manual and take time

to familiarize yourself with the unit’s operation and many great features. You may want to start

indoors, by turning on the ONIX, then pressing the Page View button to run through the four basic

screens (SATellite, MAP, NAVigation, and SET up) while reading the manual section for each.

After that, practice using the “hot” button and 5-way switch to see and select from a menu of

options, perhaps on the SET screen by setting a few personal preferences for information displays.

Once you begin feeling more comfortable with the controls and screens, the best way to really

learn to use your ONIX is to take it outside (right in your own neighborhood or a local park), and

let it lock onto the GPS satellite signals as you watch the SAT page (be patient, this can take 3 or 4

minutes the rst time you use it-make sure you have a clear view of the sky and are not right next

to a large building for best results), then take a short walk and nish by using the ONIX to guide

you back to your starting point (you can either mark a waypoint at the start by clicking the center

of the 5-way button twice, or just begin walking, later following the dotted “breadcrumb” trail

back). After that, you might try downloading a satellite photo of this local area, layer it on top of

the map screen, and try walking the same trail again, setting a few waypoints as you go. Continue

referring to this manual and practicing as often as necessary until you master the basics, before

heading out on a hike of any major length or attempting to navigate an unfamiliar area.

• 20 Channel GPS Receiver • Download Topographic Maps

• WAAS Enabled • Download Satellite Photographs

• Heads-Up Compass • Built-In SiRF Technology

• Built-In Base Maps (North America) • Waterproof

• Stores Up to 500 Waypoints & 20 Routes • Durable Rubber Armoring

• Save & Load Waypoints, Trails, Routes • SafeTrack™ battery saving mode

• 16-level Grayscale LCD Display

ONIX 200 Model #36-2000 FEATURES

Same as ONIX 200 Model #36-2000 above, Except:

• Full Color LCD Display with 64K Colors for Optimum Viewing Detail

ONIX 200CR Model #36-2005 FEATURES

Warnings and Notices

GPS System & Map Data Accuracy Notice:

The Global Positioning System (GPS) is operated by the government of the United States,

which is solely responsible for its accuracy and maintenance. The system is subject to

changes which could affect the accuracy and performance of all GPS equipment.

All map data sources contain some level of inaccuracies or incomplete data. Bushnell

strives to provide the most recent map information at a reasonable cost.

Warning:

This device is intended as a supplemental handheld navigation aide only. The user assumes

all responsibility associated with the use of this product. It must not be used for any purpose

requiring precise measurement of location, direction, distance, velocity or topography. This

device should not be used for any aircraft navigation applications.

Warning:

Do not use this device with any batteries that have broken or cracked casings. Always use

fresh, high quality batteries. Check the battery compartment after the unit has had any

prolonged exposure to signicant amounts of water (rain, snow, etc).

Vehicular Use Notice:

Bushnell is committed to the safe and responsible enjoyment of the outdoors.

Do not use this product while driving. An accident can result in property damage, injury or

death if the operator fails to practice prudent driving practices. It is the sole responsibility

of the driver of any vehicle to operate the motor vehicle in a safe manner. Information

from the GPS unit can distract the operator of a motor vehicle. It is unsafe to operate the

controls of the GPS unit while operating a motor vehicle. If used in a motor vehicle, it must

not be used by the operator of the motor vehicle. If it is used in a motor vehicle it must be

mounted in a manner such that it does not distract the operator, does not interfere with the

operator’s eld of view, and does not block or interfere with the air bags or other safety

mechanisms of the motor vehicle.
