Sida 1/2
BG-IPGEAR-ULTRA
4K UHD HDMI 2.0 Over IP Multicast
Transceiver with Seamless Matrix
Switching/Video Wall/MultiView/KVM/USB 2.0/
POE Support
Introducing the BG-IPGEAR-ULTRA 4K60Hz advanced AVoIP kit. Key
features of the BG-IPGEAR-ULTRA series include HDMI 2.0b and
HDCP 2.2 compliance, support for video resolutions up to 4K60Hz
(4:4:4), and a video bandwidth of 18Gbps. Audio formats support
LPCM 2.0CH at 48kHz. The integrated design of the encoder and
decoder supports both fiber and copper connections, with a window
roaming function that allows a decoder unit to process up to 16 signals
for arbitrary windowing, roaming, overlaying, and splicing. The system
supports KVM seat management, universal H.264/265 protocol, high-
definition background images, multi-screen splicing, scrolling
subtitles, character overlay, point-to-point signal extension, signal
distribution, multicast mode, matrix, and video wall functions over a 1G
Network Switch
It also features integrated central control over RS-232, APP control on
portable devices, user rights management, flexible control via KVM,
APP, and Control Server, and standard POE support (802.3af Class 3,
PD mode). The encoder supports HDMI local loop-out and audio
embedding and de-embedding functions, along with comprehensive
visual interaction modes, signal source, large screen status, scene
preview, and environmental visualization control.
Features
HDMI 2.0b and HDCP 2.2
Ensures seamless integration with the
latest video standards
4K@60Hz Video
Delivers stunning image quality with
support for up to 18Gbps video bandwidth
High-Quality Audio
Supports LPCM 2.0CH 48kHz for clear
and precise audio output
User Rights
Management
Offers secure and flexible control access
for authorized users
Window Roaming
Allows a single decoder unit to process up
to 16 signals, enabling windowing,
roaming, overlaying, and splicing for
dynamic displays
Audio Embedding/De-
Embedding
Provides flexible audio management
capabilities for embedding and extracting
audio

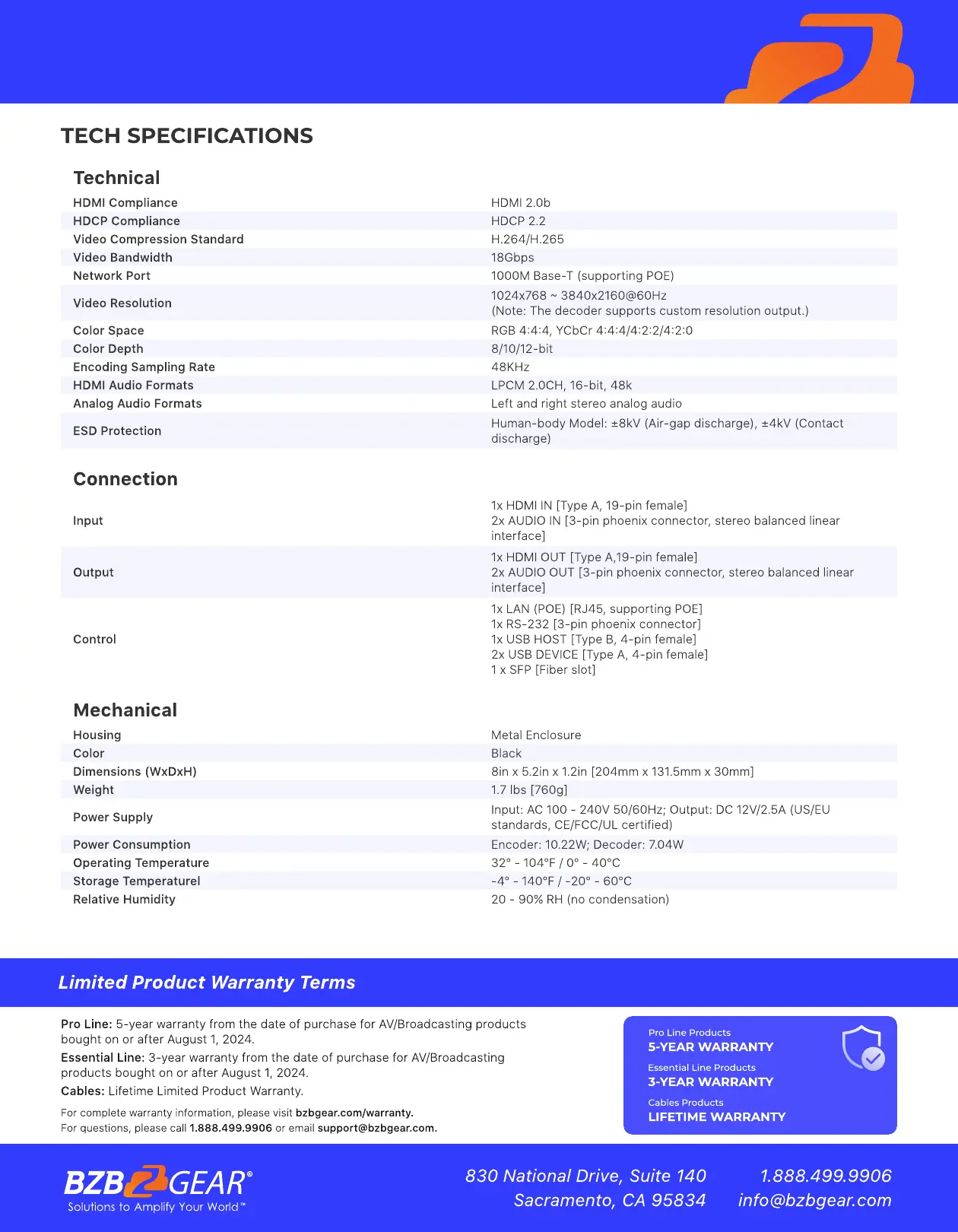

TECH SPECIFICATIONS
Technical
HDMI Compliance
HDCP Compliance
Video Compression Standard
Video Bandwidth
Network Port
Video Resolution
Color Space
Color Depth
Encoding Sampling Rate
HDMI Audio Formats
Analog Audio Formats
ESD Protection
HDMI 2.0b
HDCP 2.2
H.264/H.265
18Gbps
1000M Base-T (supporting POE)
1024x768 ~ 3840x2160@60H
(Note: The decoder supports custom resolution output.)
RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
8/10/12-bit
48KHz
LPCM 2.0CH, 16-bit, 48k
Le
f
t and right stereo analog audio
Human-bod
y
Model:
±
8k
V
(
A
ir-gap discharge),
±
4k
V
(Contact
discharge)
Co
nnec
t
i
o
n
Input
O
utput
Control
1x HDMI IN
[
T
y
pe
A
, 1
9
-pin
f
emale
2x
AU
DIO IN
[
3-pin phoenix connector, stereo balanced linear
inter
f
ace
]
1x HDMI O
U
T
[
T
y
pe
A
,1
9
-pin
f
emale
2x
AU
DIO O
U
T
[
3-pin phoenix connector, stereo balanced linear
inter
f
ace
]
1x L
A
N (POE)
[
R
J
45, supporting POE
1x R
S
-232
[
3-pin phoenix connector
1x
US
B HO
S
T
[
T
y
pe B, 4-pin
f
emale
2x
US
B DE
V
ICE
[
T
y
pe
A
, 4-pin
f
emale
1 x
SF
P
[F
iber slot
]
M
echanical
Housing
Color
Dimensions
(Wx
D
x
H
)
W
eight
Power Suppl
y
Power Consumption
O
perating
T
emperature
Storage
T
emperaturel
Relati
v
e Humidit
y
Metal Enclosure
Black
8in x 5.2in x 1.2in
[
204mm x 131.5mm x 30mm
]
1.7 lbs
[
760g
]
Input:
A
C 100 - 240
V
50/60Hz
;
Output: DC 12
V
/2.5
A
(
US
/E
U
standards, CE/
F
CC/
U
L certi
f
ied)
Encoder: 10.22
W;
Decoder: 7.04
W
32
°
- 104
°
F
/ 0
°
- 40
°
C
-4
°
- 140
°
F
/ -20
°
- 60
°
C
20 -
9
0
%
RH (no condensation)
830
National
Drive,
Suite
14
Sacramento,
CA
95834
1.888.499.990
info@bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting
products bought on or after August 1, 2024
Cables: Lifetime Limited Product Warranty.
F
or complete
w
arrant
y
in
f
ormation, please
v
isit
bzbgear.com/warranty
F
or
q
uestions, please call
1.888.499.9906
or email
support@bzbgear.com.
Pro Line Products
5-year
warranty
Essential Line Products
3-year
warranty
Cables Products
Lifetime
warranty
830 National Drive, Suite 14
Sacramento, CA 95834
1.888.499.990
info@bzbgear.com
