Sida 1/12

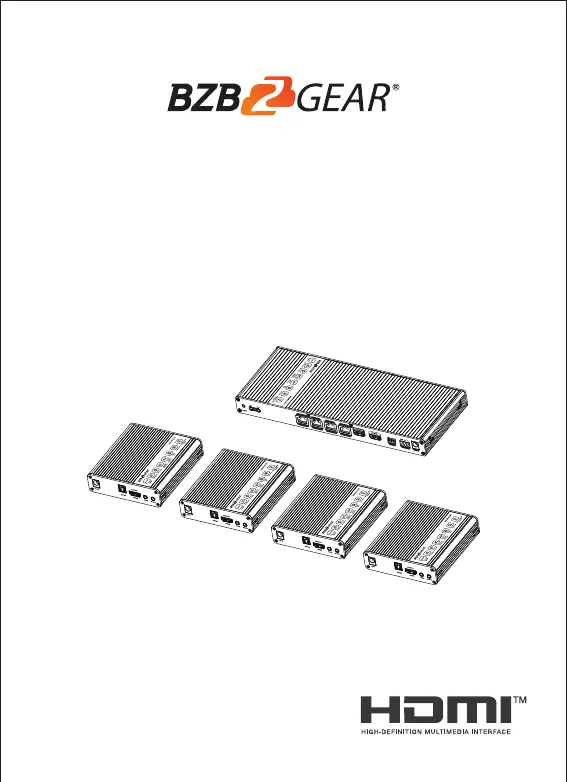

BG-UDAIC-E14
1x4 HDMI Splitter with Extender
CONTACT
1.888.499.9906 | support@bzbgear.com | bzbgear.com
User Manual
· Important safety notice:
1
1. Do not expose this device to rain, moisture, or liquid.
2. Do not place foreign items inside the device.
3. Do not disassemble or repair this device without a qualified service
technician.
4. When using third party DC adapters, ensure they match the
specifications outlined in this manual.
· Introduction
The BG-UDAIC-E14 is an extender splitter kit that distributes 1 HDMI
input to 4 HDMI outputs and extends these signals up to 70 meters.
The kit features resolution up to 4K60Hz, bi-directional IR passback,
and RS232 control.
· Features
1. Zero latency transmission.
2. Split and extend 1 HDMI input signal to 4 HDMI outputs.
3. Resolution up to 4K@60Hz.
4. HDMI signal extension up to 70 meters using Cat6/6A/7 cables.
5. Bi-directional IR passback.
6. 1 HDMI loop out for local displays.
7. 1 S/PDIF port on the receiver for digital audio output from a TV or
source device.
8. EDID passthrough or manual configuration of EDID.
9. RS-232 command control.
10. Surge, lightning, and ESD protection.
11. Rack mount ears.
2
· Package Contents
HDMI splitter extender
TX x1pcs
HDMI splitter extender
RX x4pcs
User manual
x1pcs
DC12V/2A x1pcs DC5V/2A x4pcs Terminal block
(RS-232) x1pcs
IR blaster extension
cable x1pcs
IR Receiver extension
cable x4pcs
Mounting brackets
x20pcs
Screw x40pcs
· Installation Requirements
1. HDMI source devices (e.g., PC, DVD, game console）
2. HDMI display devices (e.g., TV, monitor, projector)
3. UTP/STP CAT6/CAT6A/CAT7 cable. Follow the standard IEEE-568B.
High-quality network cables are recommended.
