Sida 1/11
ENGLISH
1
PARK 300
PARK 300 parking sensor system consists of ultrasonic sensors,
digital control box and LCD display.The system detects the
distance between the car and front/rear bumper of the car.The
distance will be displayed in an innovative mode with the special
designed LCD, numeric display and step-up sounds, which will be
changed according to the actual positions detected obstruction so
that the driver could judge the distance and avoid accident.
INSTALLATION TOOLS
ADVISED POSITION TO INSTALL THE SENSORS
SELECT DRILLING POSITION FOR SENSOR A AND D
B. 0.5-0.8m vertically high to the ground, 0.55m
is recommended
C.Vertical, tidy surface without metal
components is preferred.
A. Choose suitable drilling position for A and D
sensor with relevant mark
B.To perform the best detecting angle, select the
position for A and D sensor with 8-13cm away
from the side, 11cm is recommended, and 20°
with the side.
A. 4 drilled holes (A, B, C, D) should be under
the same line.
PARK 300 manual werkdoc.qxd 28-11-2007 08:46 Pagina 1
ENGLISH
3
ENGLISH
2
SENSOR DETECTING

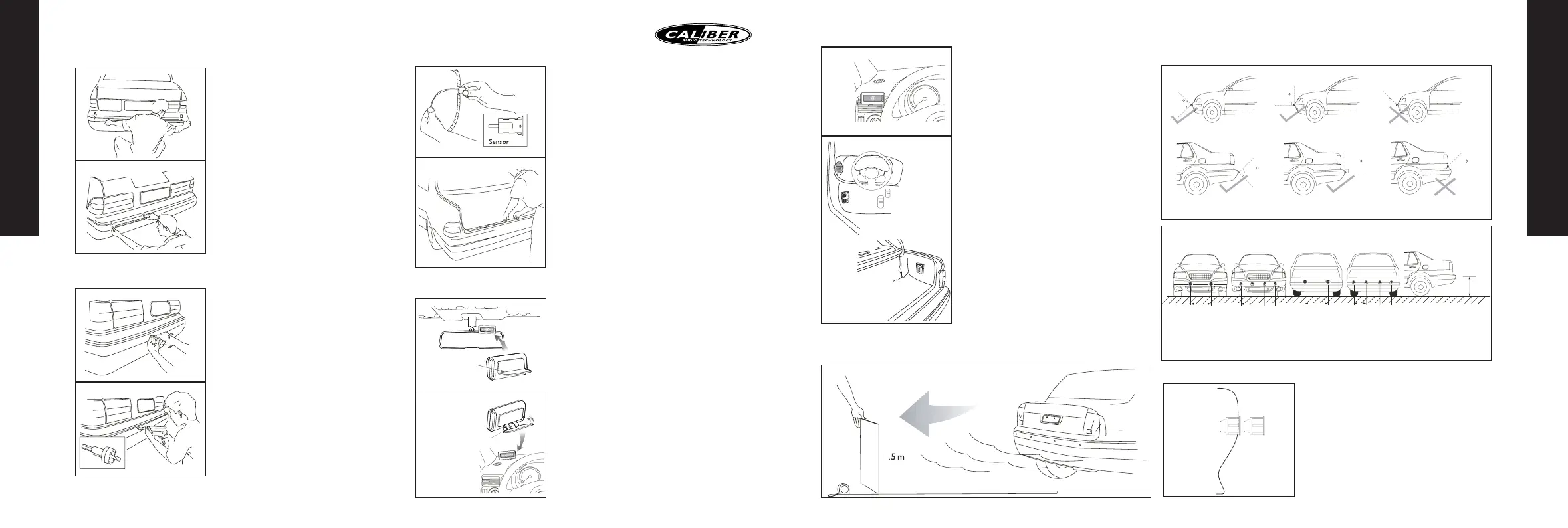

SENSOR INSTALLATION DIAGRAM
SELECT DRILLING POSITION FOR SENSOR B AND C
DRILLING
SENSOR INSTALLATION
OTHERS
A.Measure the distance between sensor A and D,
get the result “L”.
B.Mark sensor B, C and E for every 1/3 “L”
interval.
A.Drill with a small awl to locate.
B.Drill with the original driller.
A.Insert the sensors into the holes one by one
and tighten them.The sensor with metal slice
must be installed following the direction.
B.Hide the wires in good order according to
various cars.
Fix the display on rear mirror.
Display is adjustable for different vision angel.
Fix the display on dash board.
Bracket 1
Bracket 2
The display should be installed where easy to
be seen.
Locate the control box in the boot, keep safe,
cool, dry and away from shake and interference.
90
90
90
9090
90
Be sure no other part of vehicle falls into detecting range of sensors
0.6 - 0.8m
0.3 - 0.4m
The best postiton for 2 sensors
The best postiton for 4 sensors
0.5 - 0.8m
0.6 - 0.8m
0.3 - 0.4m
Vertical installation position to the ground.
PARK 300 manual werkdoc.qxd 28-11-2007 08:46 Pagina 2
