P75 Dual Source Power Amplier

Installation Manual

2 Russound P75 Installation Manual

The lightning ash with arrowhead symbol,

within an equilateral triangle, is intended to alert

the user to the presence of uninsulated dangerous

voltage within the product’s enclosure that may be of

sucient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature accompanying the

appliance.

Safety Instructions

1. Read These Instructions - All the safety and operating

instructions should be read before the appliance is

operated.

2. Keep These Instructions - The safety and operating

instructions should be retained for future reference.

3. Heed All Warnings - All warnings on the appliance in

the operating instructions should be adhered to.

4. Follow All Instructions - All operating and user

instructions should be followed.

5. Water and Moisture - Do not use this apparatus

near water; for example, near a bathtub, washbowl,

kitchen sink, laundry tub, in a wet basement, or near

a swimming pool.

SAFETY INSTRUCTIONS

6. Cleaning - The apparatus should be cleaned only with

a dry cloth.

7. Ventilation - Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions. Slots and openings in the cabinet

are provided for ventilation and to ensure reliable

operation of the product and to prevent it from

overheating, and these openings must not be

blocked or covered. The openings should never be

blocked by placing the product on a bed, sofa, rug,

or other similar surface. This product should not be

placed in a built-in installation, such as a bookcase

or rack unless proper ventilation is provided or the

manufacturer's instructions have been adhered to.

8. Heat - Do not install near any heat sources such as

radiators, heat registers, stoves or other apparatus

(including ampliers) that produce heat.

9. Grounding or Polarization - Do not defeat the safety

purpose of the polarized alternating current line plug

or grounding-type plug. A polarized plug has two

blades with one wider than the other. This plug will

t into the power outlet only one way. This is a safety

feature. A grounding-type plug has two blades and

a third grounding prong. The wide blade or the third

prong are provided for your safety. If you are unable

to insert the provided plug into your outlet, contact

your electrician to replace the obsolete outlet.

10. Power Cord Protection - Protect the cord from

being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they

exit from the apparatus.

11. Attachments - Only use attachments/accessories

specied by the manufacturer.

12. Carts and Stands - Use only with the cart, stand,

tripod, bracket or table specied by the manufacturer,

or sold with the apparatus. When a cart

is used, use caution when moving the

cart/apparatus combination to avoid

injury from tip-over.

13. Non-Use Periods - Unplug this

apparatus during lightning storms or

when unused for long periods of time.

14. Servicing - Refer all servicing to qualied service

personnel. Servicing is required when the apparatus

has been damaged in any way, such as power supply

cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15. MAINS Plug - The MAINS plug or an appliance coupler

is used as the disconnect device, the disconnect

device shall remain readily operable.

16. Insulation - Class II apparatus with double

insulation, and no protective earth provided.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE THE COVER. NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE. THIS APPLIANCE SHALL

NOT BE EXPOSED TO DRIPPING OR SPLASHING

WATER AND THAT NO OBJECT FILLED WITH

LIQUID SUCH AS VASES SHALL BE PLACED ON

APPARATUS..

Russound P75 Installation Manual

CLEARANCE REQUIREMENTS / TABLE OF CONTENTS

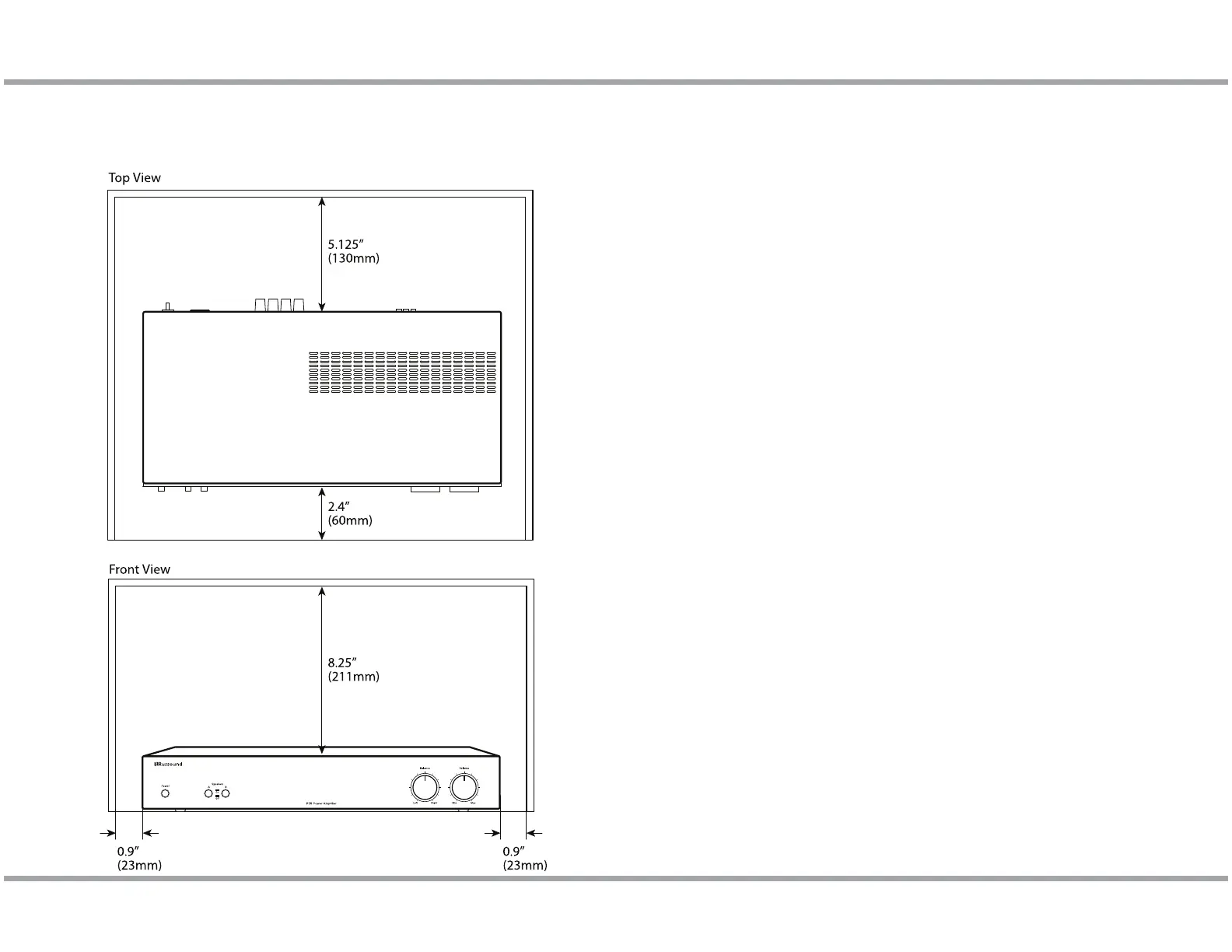

When installing the P75 Amplier, the clearances shown here MUST be kept

for proper ventilation of the amplier.

Safety Instructions .................................................................................................................. 2

Product Overview .................................................................................................................. 4

Front and Rear Panels ............................................................................................................5

System Conguration - Stereo Mode ............................................................................... 6

System Diagram - Stereo Mode.......................................................................................... 7

System Conguration - Bridged Mode ............................................................................8

System Conguration - Basic Speaker Connection .....................................................9

System Conguration - External Volume Controls ...................................................... 9

Technical Specications ......................................................................................................10

Warranty ...................................................................................................................................11

Table of ContentsClearance Requirements
