200 & IDB SERIES
INLINE DUCT BLOWERS
OPERATION INSTRUCTIONS AND PARTS MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS
200 SERIES MODELS: 207, 209, 210, 212, 215, 218
IDB SERIES MODELS: IDB07, IDB09, IDB10, IDB12, IDB15, IDB18
GENERAL SAFETY

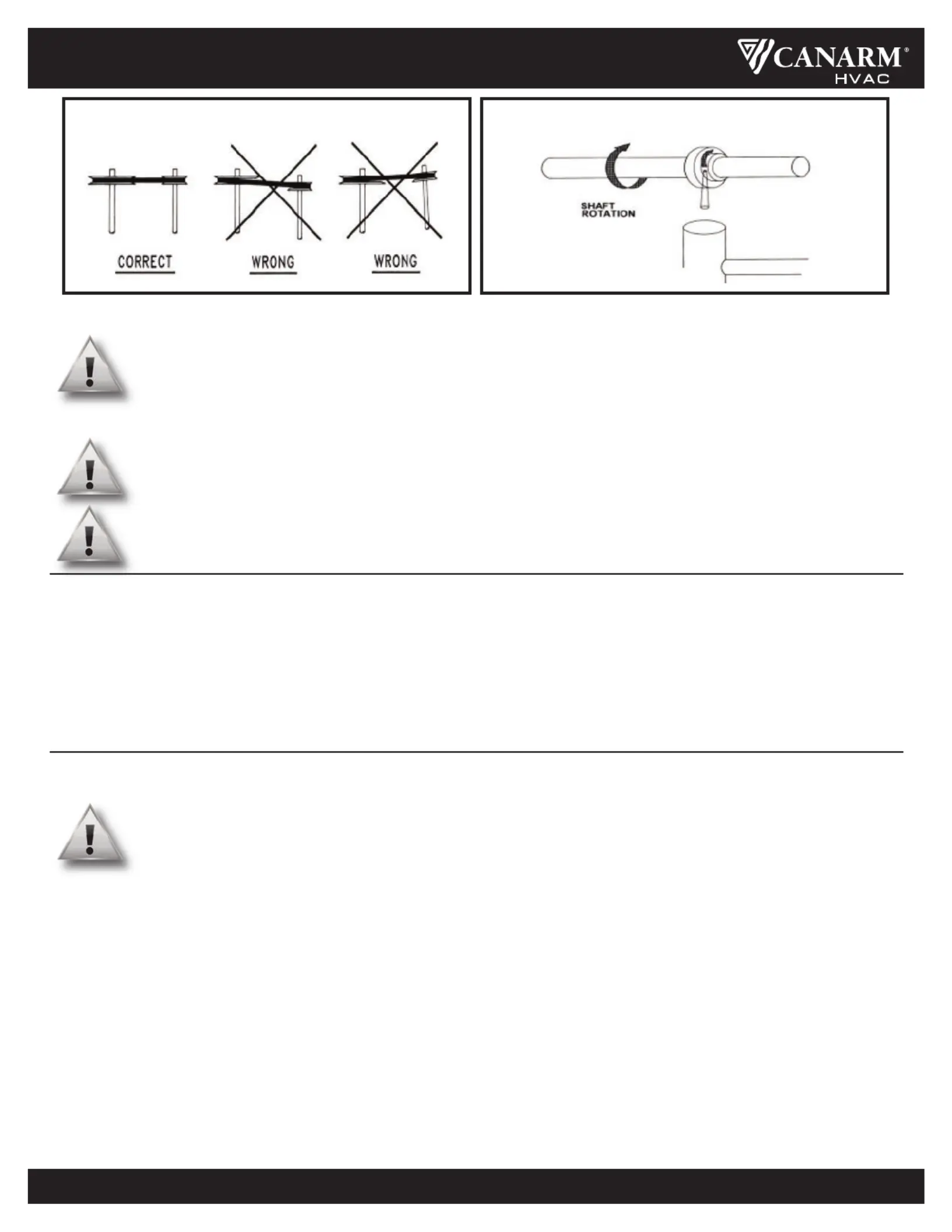

Rotating parts, (pulleys, shafts and belts) on fans should not be exposed. Where these components are not protected by ductwork, cabinets
or covers, appropriate guards should be employed to restrict exposure to rotating parts. Access doors should not be opened with the fan
operating to avoid foreign objects being drawn into the system. On initial start-up, a careful inspection should be carried out to ensure no
foreign material is present which could become airborne in the system.
Read installation and operation instructions carefully before attempting to install, operate or service Canarm/Delhi 200 Series or
Canarm/Delhi IDB Series Blowers. Failure to comply with instructions could result in personal injury and/or property damage. Retain
instructions for future reference.
BEFORE YOU BEGIN
Inspect unit for damage, report any shipping damage to carrier. Check all fasteners, re-tighten as required. Rotate the blower wheel by
hand to ensure free rotation. If rubbing occurs, loosen the set screw(s), re-position the wheel to the shaft center, re-tighten set screws.
INSTALLATION

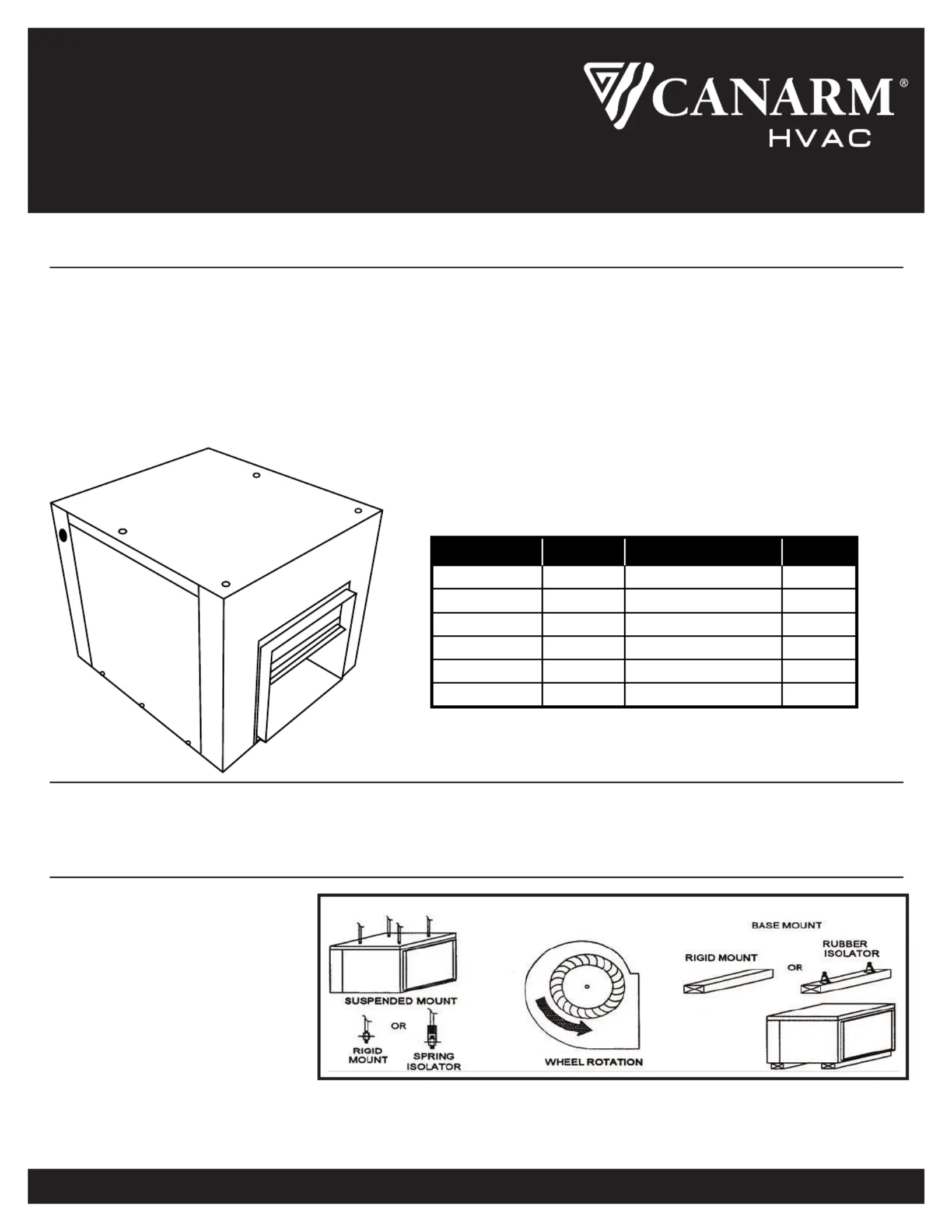

SUSPENSION MOUNTING
Suspend the unit using 4 threaded rods
through the (4) 7/8" clearance holes
located at the top of the unit
(see Figure 1) or by an angle iron cradle
(supplied by others) under the unit.
MODEL WEIGHTMAX. HP SHAFT DIAMETER
207, IDB07 3/4 3/4" 43 lbs
209, IDB09 3/4 3/4" 55 lbs
210, IDB10 1 1/2 3/4" 65 lbs
212, IDB12 1 1/2 3/4" 82 lbs
215, IDB15 3 1" 140 lbs
218, IDB18 5 1" 158 lbs
FIGURE 1
BASE MOUNTING
Secure unit through the 4 internal 7/8" clearance holes to a solid base. Ensure unit is level. Complete installation of inlet & outlet ducts.
NOTE: Flexible inlet & outlet duct collars are recommended to minimize vibration transmission.
