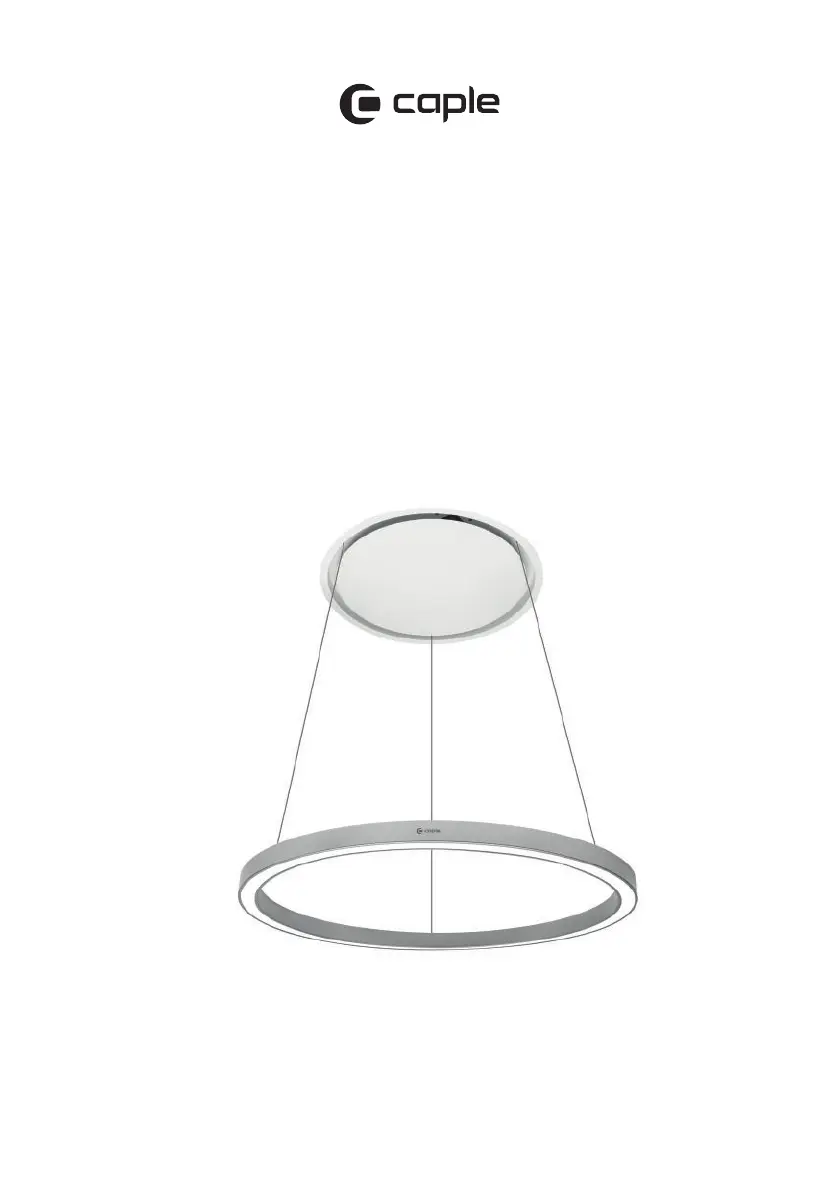

C e i l i n g H o o d

I n s t r u c t i o n M a n u a l

C O R 5 4 1 S L

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual COR541SL2 Please keep this instruction manual for future reference

C O N T E N T S

Warnings 3

Environmental Protection 8

Opening the Panel 10

Installation 11

Remote Control 14

Timing 18

Cleaning and Maintenance 19

Caple Contact Details 22

Instruction manual COR541SL 3

Please keep this instruction manual for future reference

W A R N I N G S

The appliance is not intended for use by young children or

inﬁrm persons without supervision. Young children should

be supervised to ensure they do not play with

the appliance.

The extracted air can’t be conveyed through or into a duct

used to let out fumes from appliances fed by energy other

than electric power (eg. centralized heating, radiators,

water heaters, etc.).

To evacuate the air outlet, please comply with the

pertaining rules given by competent authorities.

Instruction manual COR541SL4 Please keep this instruction manual for future reference

-Provide the room with an adequate aeration when a

cooker hood and appliances fed by energy other than

electric power (gas, oil, or coal stoves, etc.) are used

simultaneously. The cooker hood, when evacuating the

extracted air, could generate a negative pressure in the

room which can’t exceed the limit of 0.04 mbar, in order

to avoid the suck of exhausts deriving from the heat

source. Therefore the room should be provided with air-

intakes to allow a constant ﬂow of fresh air.

-If the rating label in the cooker-hood does show the

symbol the appliance is built in class 11° and it does

not need the earth connection.

-If the rating label in the cooker hood does not show the

symbol , the appliance is built in class I° and it needs

the earth connection.

-When performing the electrical connections on the

appliance, please make sure that the current tap is

provided with earth connection and that voltage values

correspond to those indicated on the label placed inside

the appliance itself.

-Before carrying out any cleaning or maintaining

operations, the appliance needs to be removed from the

electric grid.

Instruction manual COR541SL 5

Please keep this instruction manual for future reference

-If the appliance is not provided with a non-separable

ﬂexible cable and plug, or with another device ensuring

omnipolar disconnections from the grid, with an opening

distance between the contacts of at least 3 mm, then

such disconnecting devices must be supplied within the

ﬁxed installation. If the appliance is endowed with a

supply cord and a plug, the appliance has to be put in a

place where the plug can be reached easily.

The use of materials which can burst into ﬂames should

be avoided in close proximity of the appliance. When

frying, please pay particular attention to ﬁre risk due to

oil grease. Being highly inﬂammable, fried oil is especially

dangerous.

Do not use uncovered electric grills. In order to avoid

possible ﬁre risk, all instructions for grease ﬁlter cleaning

and for removing eventual grease deposits should be

strictly followed.

-This appliance complies with all relevant local and

national safety requirements. Inappropriate use can,

however, lead to personal injury and damage to property.

-The cooker hood is not intended for outdoor use.

-It must only be used as a domestic appliance to extract

vapours and remove odours from cooking. Any other

usage is not supported by the manufacturer and could

be dangerous.

Instruction manual COR541SL6 Please keep this instruction manual for future reference

-Where a recirculation cooker hood is ﬁtted above a gas

hob, please ensure that there is an adequate supply of

fresh air into the room in which it is installed. Please

seek the advice of a qualiﬁed gas ﬁtter (e.g. Gas Safe in

the UK) if necessary.

-Children under 8 years of age must be kept away from

the cooker hood unless they are constantly supervised.

-Children 8 years and older may only use the cooker hood

unsupervised if they have been shown how to use it

safely and recognise and understand the consequences

of incorrect operation.

-The electrical safety of this appliance can only be

guaranteed when correctly earthed. It is essential

that this standard safety requirement is met. If in any

doubt please have the electrical installation tested by a

qualiﬁed electrician.

-Do not connect the appliance to the mains electricity

supply by a multi-socket unit or an extension lead. These

are a ﬁre hazard and do not guarantee the required

safety of the appliance.

-The cooker hood can get very hot during cooking due to

heat rising from the hob.

-Do not touch the housing or the grease ﬁlters until the

cooker hood has cooled down.

Instruction manual COR541SL 7

Please keep this instruction manual for future reference

A P P R O P R I A T E U S E :

-This appliance is intended to be used in household and

similar applications such as:

› Staff kitchen areas in shops, ofﬁces and other

working environments.

› Farm Houses.

› By clients in hotels, motels and other residential

type environments.

› Bed and breakfast type environments.

Instruction manual COR541SL 9

Please keep this instruction manual for future reference

W A R R A N T Y

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you

must provide the following information to your retailer in order to receive a replacement: date of

purchase, model and serial number. Registration can also be completed online by visiting

www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with

proof of purchase. If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

C E D E C L A R AT I O N S O F C O N F O R M I T Y

Radio Equipment Directive (RED) 2014/53/EU.

This Declaration is issued under the sole responsibility of the manufacturer.

Hereby, Caple declares that the radio equipment included in the product is in compliance with the

RED directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available on our website

www.caple.co.uk.

U K C A D E C L A R AT I O N S O F C O N F O R M I T Y

This appliance has been manufactured to the strictest standards and complies with all

applicable legislation.

T E C H N I C A L F I C H E

This appliance conforms to all current and applicable energy regulations. To view the Technical

Fiche that supports the energy labelling data, please visit the product page on our

website www.caple.co.uk

Instruction manual COR541SL10 Please keep this instruction manual for future reference

It is possible to open the grease ﬁlter cover panel pulling it gently, as shown in ﬁg. 1.

The panel is ﬁxed with three magnets, there are two safety

cables to release in order to remove the panel from

the product.

For the correct working, it is recommended to install

the product at a maximum distance of 2000 - 2100mm,

from the ﬂoor level.

Before proceeding with the installation of the appliance,

check that all the components are not damaged, otherwise

please contact your retailer and do not continue with

the installation.

Use an air outlet pipe with a maximum length of no more than 5 metres.

› Reduce the number of curves in the duct as each curve reduces the suction efﬁciency

equivalent to 1 linear meter. (E.g. If 2 90° curves are used, the length of the duct should not

exceed 3 meters in length).

› Avoid abrupt changes of direction.

› Use a duct with a diameter of 150mm constant over the entire length.

› Use a duct of recognised and approved material.

The cooker hood should be placed at a minimum distance of 65cm above the hob. It is the

manufacturer of the hob who determines the clearance required and the clearance quoted by the

hob manufacturer must be followed. In the absence of any instructions supplied with a gas hob

the minimum distance between the hob and the hood must be at least 760mm.
