Congratulations!
Thank you for purchasing this Carlsbro digital drum set. This drum set has been developed to act and play
like an acoustic drum set but with greater ease and much lower volume. Before you use the instrument,
we recommend that you take the time to carefully read through this user guide, to familiarise yourself with
the controls and get the best out of your new drum set. It also contains important safety information and
practical hints and tips to perfectly setup and configure your drum set. !
Taking care of your digital drum set
Location
- Please set up your drum set in a spacious area on a carpet or rug where available.!
- Do not expose the unit to the following conditions to avoid deformation, discolouration or more
serious damage:"
Direct sunlight, high temperatures, next to a heat source, in a car during the day time or in a cold,
damp environment.!
Power supply
- Make sure to use a correct AC adaptor and that the AC outlet voltage of your country matches
the input voltage specified on the AC adaptor, and label on the underside of the sound module.!
- Turn the power switch OFF when the Instrument is not in use.!
- The AC adaptor should be unplugged from the AC outlet if the instrument is not to be used for
an extended period of time. !
- Unplug the AC adaptor during electrical storms. !
- Avoid plugging the AC adaptor into the same AC outlet as appliances with high power
consumption, such as electric heaters or ovens. !
- Try to avoid using multi-plug adaptors as these can result in a reduction of sound quality,
operational errors, and possibly damage. !
Turn power OFF when making connections
- To avoid damage to the instrument and connected devices, turn the power switches of all
related devices OFF prior to connecting or disconnecting any cables. !
Handling and transport
- Never apply excessive force to the controls, buttons, connectors or other parts of the
instrument.!
- Always unplug cables by gripping the plug firmly, not by pulling on the cable.!
- Disconnect all cables before moving the instrument.!
- Physical shocks caused by dropping, bumping, or placing heavy objects on the instrument will
result in scratches and more serious damage.!
- Do not disassemble any components or try to analyse any internal parts by yourself. There are
no user-serviceable parts for this drum set. If any malfunction occurs during use, stop using it and
refer to the trouble shooting page towards the end of this user guide.!
Cleaning
- Unplug the power plug before cleaning this drum set. Do not touch the power plug with wet
hands or materials.!
- Clean with a dry soft cloth.!
- A slightly damp cloth may be used to remove stubborn grime and dirt. !
- Never use cleaners such as alcohol, detergents or thinners.!
- Avoid placing vinyl objects on top of the unit (vinyl can stick to and discolour the surface).!
Electrical interference
- This instrument contains digital circuitry and may cause interference if placed too close to radio
or television receivers. If this occurs, move the instrument further away from the affected
equipment.!
Unpacking
- Please retain the packaging for this product in the unfortunate event that the product or any
individual part needs to be returned for service or repair. Please complete the warranty card
included with this product and also write your product serial number in the box at the end of this
user guide. Returning the completed warranty card does not diminish your statutory rights in
anyway.$
Drum kit assembly
1. Open the drum frame as illustrated.!
*note: for left handed assembly, open the frame legs backwards, so the snare arm is to the right
hand side.!
2. Once your frame is in position, slightly tighten the frame bolts with your supplied drum key, to
reduce movement.!
3. Place cymbal poles and L shape drum arms on the drum frame as illustrated.!
!
4. % Fix the mesh drum pads to the L arms. The snare pad has a rubber top on the rim of the pad.!
5.% Place the cymbals on top of the cymbal poles and fasten with the cymbal nuts and felt
washer above the cymbal. Do not over tighten, the cymbal should have slight movement and not
be rigid. !
*note: The Hi-Hat Cymbal pad is different to the Crash and Ride cymbal pads, please pay close
attention to the labels on the underside of the cymbal pads.!
6.% Place the sound module in the remaining frame bracket either side of the Hi-Hat cymbal.!
*note: It is ideal for younger drummers to have the module to the front of the frame so that the Hi-
Hat is closer to reach. For adults the Hi-Hat and Module position can be reversed to give a much
larger playing area. !
7.% Place the Hi-Hat Control pedal on the floor under the Hi-Hat cymbal pad.!
8.% Place the Kick pedal on the floor to your required position, usually under TOM2 position.!
9.% Adjust the pedal floor spikes, so the pedals grip to your carpet or rug to reduce movement.!
*note: Both floor pedals look identical, so please pay close attention to the label on each pedal,
To determine which is KICK and which is Hi-Hat Control.!
2

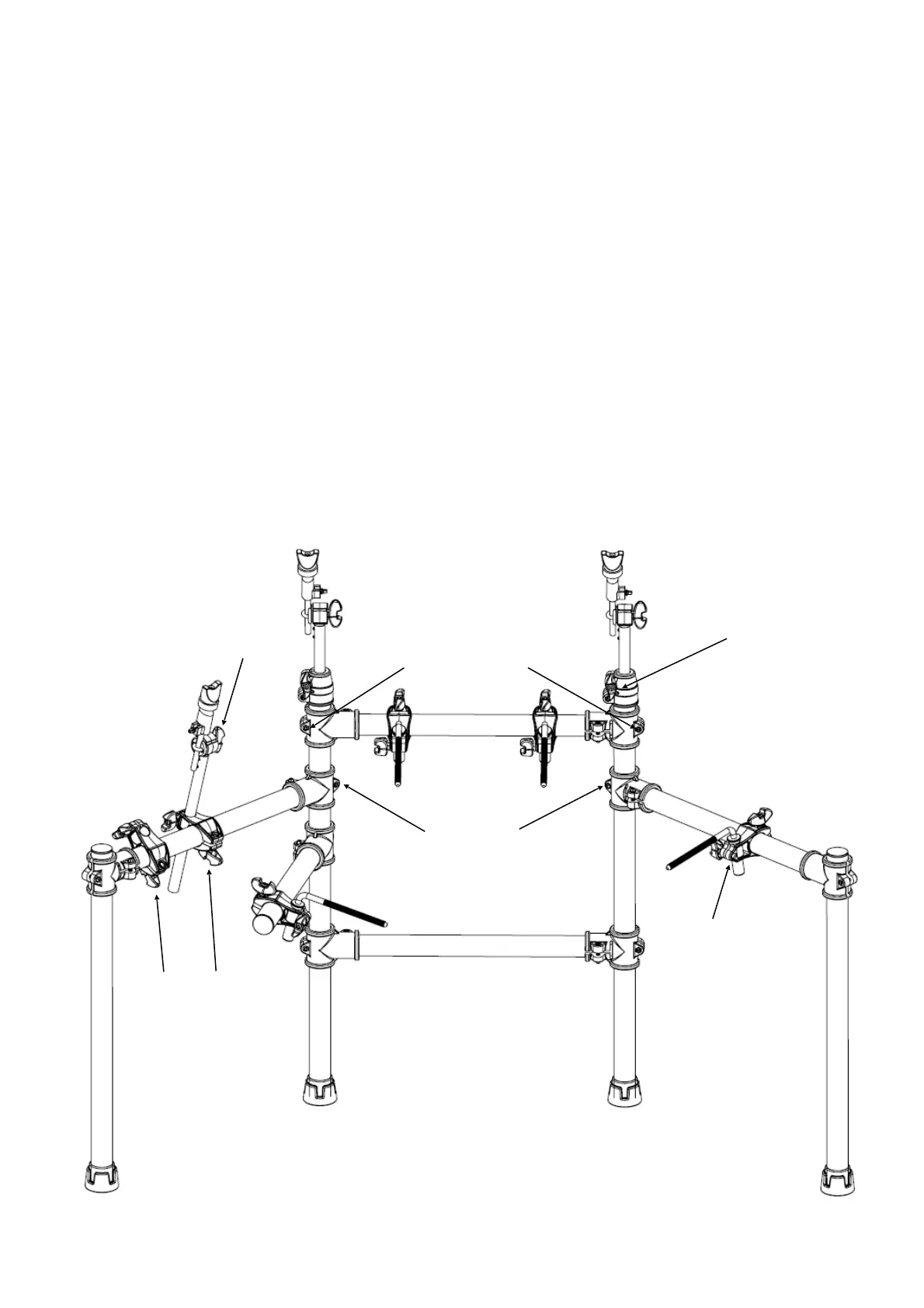

L shape arm
Cymbal pole
Cymbal pole
Cymbal pole
Snare arm
Frame bolts
Positioning your pads
Once your drum set is assembled, you can further adjust the positioning of the frame and pads to
suit you. The drum set should be comfortable and all pads should be easy to reach without over
stretching.!
1. The horizontal frame bars and snare arm can be adjusted up and down to suit drummers of
different heights. Loosen the outside bolt on both ends, and slowly move the bar to your desired
height, tighten the bolts to secure the position.!
2. The frame width can be adjusted by turning the outer legs inwards or outwards allowing the Hi-
Hat cymbal, sound module and Tom3 to be positioned closer or further away as needed.!
3. The Mesh pads can be moved up/down, left/right, forwards/backwards and also be tilted
upwards and downwards. It is ideal that the Toms are positioned in a way to reduce the risk of
striking the pad rim. Striking the Tom rims can be quite loud, so these should be angled to reduce
the risk of unwanted acoustic noise.!
4. The cymbals can move up/down and also be tilted, it is important that the cymbals are hit on
the rubber playing surface and not the plastic part to reduce noise and possible damage.!
5. The Sound module and Hi-Hat cymbal can reverse positions to allow for a wider or narrower
playing area. Place the Hi-Hat in the inner holder for a closer set up, or in the outer holder for a
larger set up.!
6. The pedals have unlimited movement, so place these in a position that is most comfortable for
you.!
!
4
Frame width
adjustment!
Cymbal
height!
Adjustment!
Cymbal tilt
adjustment
Mesh pad
Adjustments!
Frame height
adjustment!
Sound Module!
Hi-Hat Cymbal
positions!

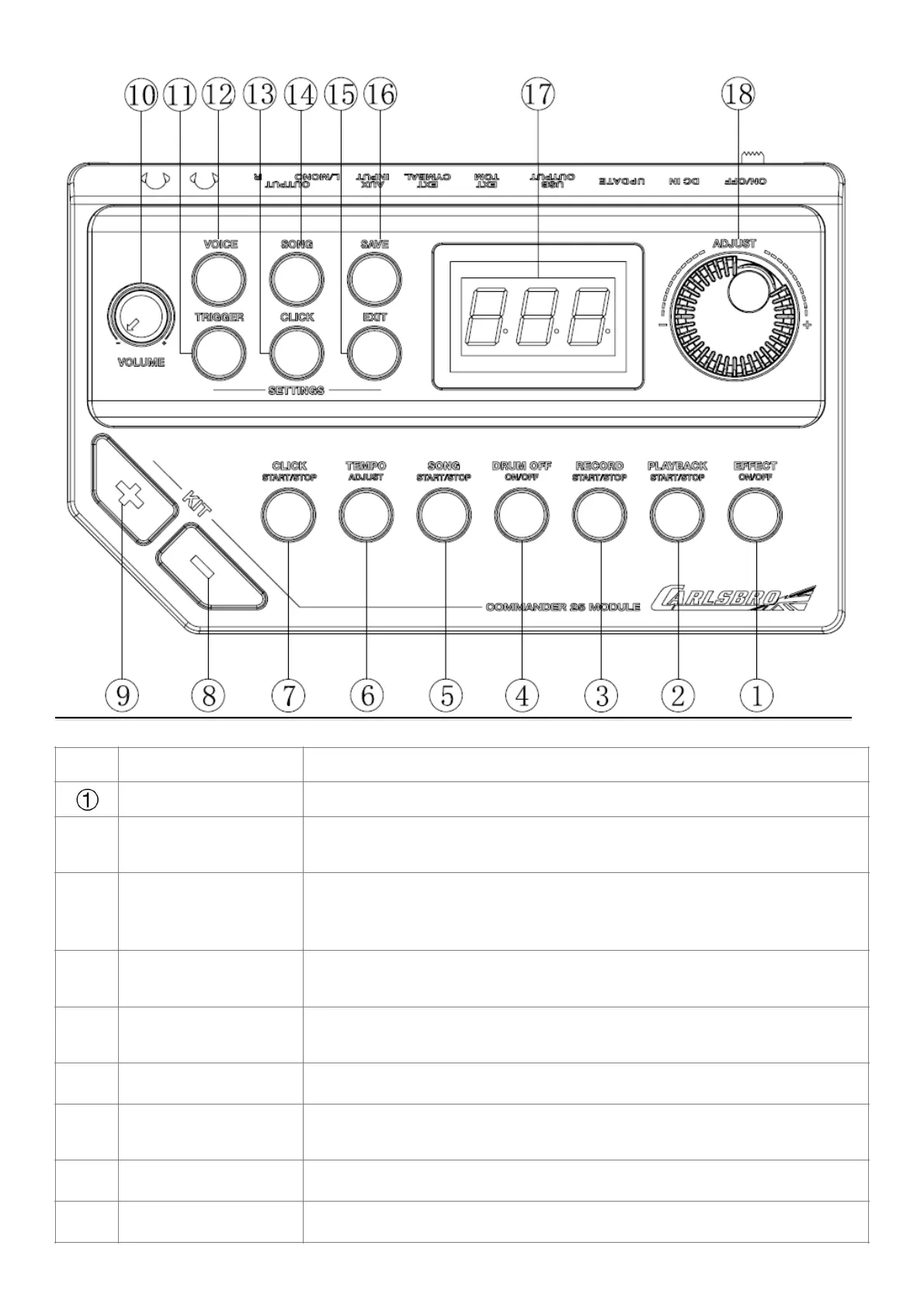

Function buttons
No.
Name
Description
EFFECT ON/OFF
When illuminated, the Reverb effect is on.
②
PLAYBACK START/
STOP
Press this button once to select the file you wish to listen to, press
again to play the selected file.
③
RECORD!
START/STOP
Press this button once to select which recording file to overwrite.
Press again to start the recording. A third press will stop your
recording.
④
DRUM!
ON/OFF
When illuminated, the drum backing track will be removed from
the songs.
⑤
SONG!
START/STOP
Press this button once to start playing a demo song. Press again
to stop the demo song
⑥
TEMPO
Quick tempo adjustment for songs and metronome (click)
⑦
CLICK!
START/STOP
Press this button once to start the metronome, press again to
stop the metronome
⑧
KIT-
Change drum kit down
⑨
KIT+
Change drum kit up
6
