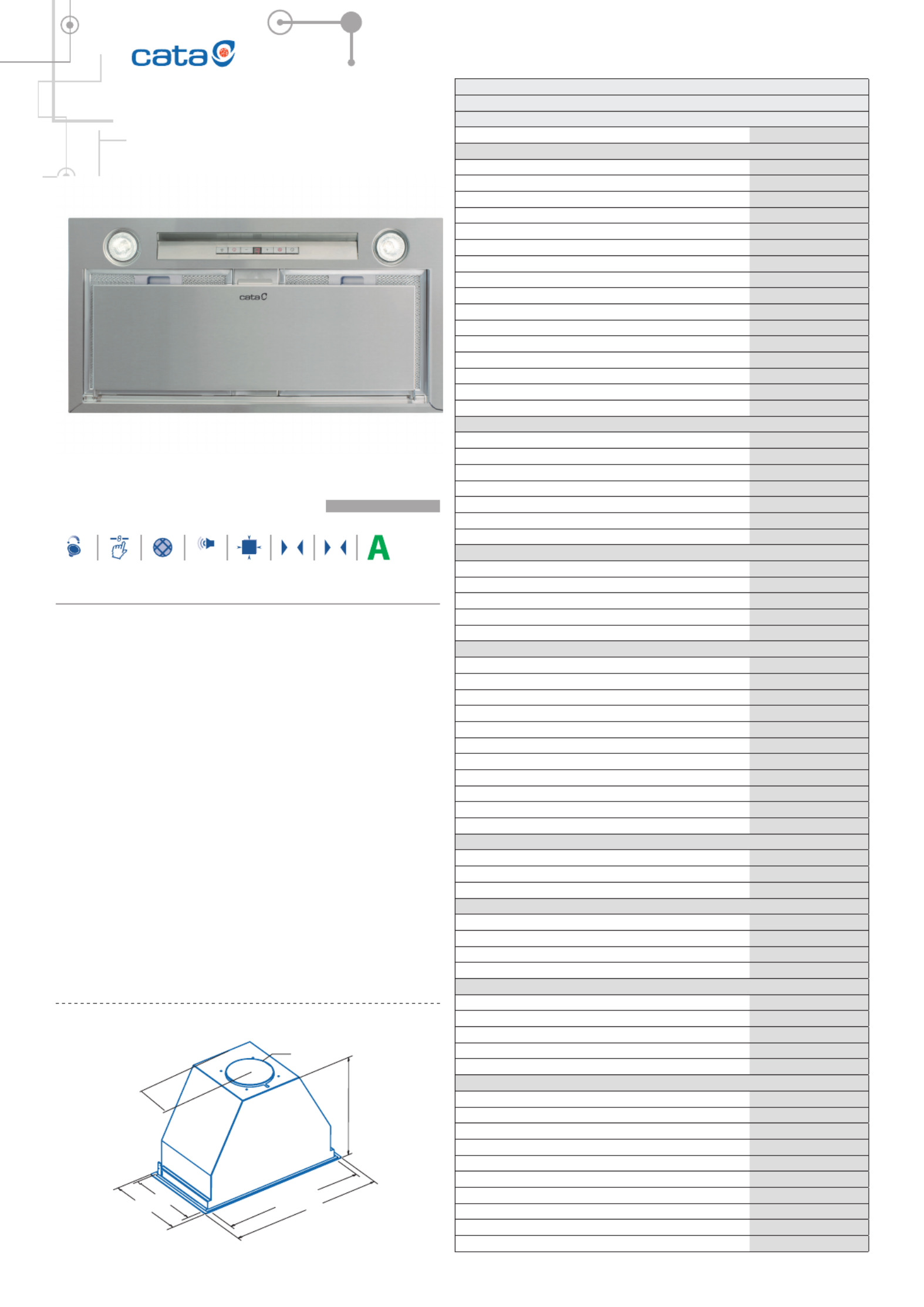

Sida 1/6

SILENT

LED

GP 45 X

530/830

256

280

498/798

352

ø 150

147

Cod. 02130303 EAN 8422248075206

INTEGRATIONHOODS

Code 02130303

EAN 8422248075206

Model GP45X

Type Canopy

Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564

AEC (Anual Energy consumption) (kWh/annum) 58,3

EEI class (Energy Eiciency Class) A

FDE (Fluid Dynamic Eiciency) 30,2

FDE class (Fluid Dynamic Eiciency Class) A

LE (Lighting Eiciency) (lux/W) 24,3

LE class (Lighting Eiciency Class) B

GFE (Grease Filtering Eiciency) 91,2

GFE Class (Grease Filtering Eiciency class) B

Air flow at minimum speed (m 3/h) 340

Air flow at maximum speed (m 3/h) 600

Air flow at intensive speed (TURBO) (m 3/h) 820

Sound Power Level at minimum speed (dB) 50

Sound Power Level at maximum speed (dB) 65

Sound Power Level at intensive speed (TURBO) (dB) 67

Po (Power Consumption in o mode) (W) 0,3

Ps (Power Consumption in standby) (W) 0

Integration directive EU 66/2014

ƒ (Time Increase Factor) 0,9

EEI (Energy Eiciency Index) 54,4

QBEP (Flow Rate at Best Eiciency Point) (m3/h) 429,4

PBEP (Static Pressure Dierence at Best Eiciency Point) (Pa) 405

WBEP (Electric Power Input at Best Eiciency Point) (W) 159,8

WL (Nominal Power Consumption of Lighting system) (W) 7

EMIDDLE (Average Illumination of Lighting system on Cooking surface) (lux) 170

External Dimensions

Width (mm) 530

Depth (mm) 280

Total max height (mm) 352

Total min height (mm) 352

Outlet Diameter (mm) 150/125

Characteristics

Motor BT3

Extraction Levels 3+1

Motor Maximum Power Consumption 280

Maximum Pressure 450

Intensive Speed (TURBO) Pressure 470

Control Type NL4i

Automatic shut-down timer √

Electronic Filter Saturation Indicator √

Filter Type Metallic

Anti-grease Filter Number 2

Inner Shield -

Lighting

Light Type EcoLed

Adjustable Intensity Lighting √

Nº of Lamps 2

Installation

Minimum height distance to a electric worktop hob (mm) 550

Minimum height distance to a gas worktop hob (mm) 650

Instalation with Outlet tube to the exterior / Recirculating BOTH

Easy Instalation System √

Electric Connection

Total Rush Power (W) 287

Rated Voltage (V) 220-240

Network Frequency (Hz) 50

Electrical Insulation Class CLASS II

Plug EU - 2 pins

Accessories

Upper Decorative tube Extension -

White Decorative Tube -

Black Decorative Tube -

Island Tube Enhancer -

Check Valve 02832004

MAX PRO Metal Filter -

Metal Filter 02811000

DUAL Filter (metal + active charcoal) 02811003

Active Charcoal Filter 02859398

Noiseless Flexible Duct 02893002

❒

Electronic Control Panel with digital display authomatic shut-down timer and cleaning

filters indicator

❒

4 extraction levels, 3 + 1 TURBO

❒

Extraction power (according to UNE/EN 61591): 820m

/h - 340m

❒

Maximum air flow (free outlet): 1200m

❒

Sound power (Reg.(EU) nº65/2014): 50dB(A), maximum: 65dB(A)

❒

BT3 motor. Extra silent. Maximum energy consumption 280W

❒

High eiciency Led lighting, adjustable intensity

❒

Easy-to-install system

❒

Dishwasher-washable filters

❒

Stainless steel finishing

❒

Max. Pressure: 470 Pa

❒

150 mm outlet diameter

❒

Energy Class: A

▶ Accessories

(not included)

Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cod. 02859398 / EAN 8422248075497 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Check valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cod. 02832004 / EAN 8422248480499 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Eiciency Motor
