Sida 1/4

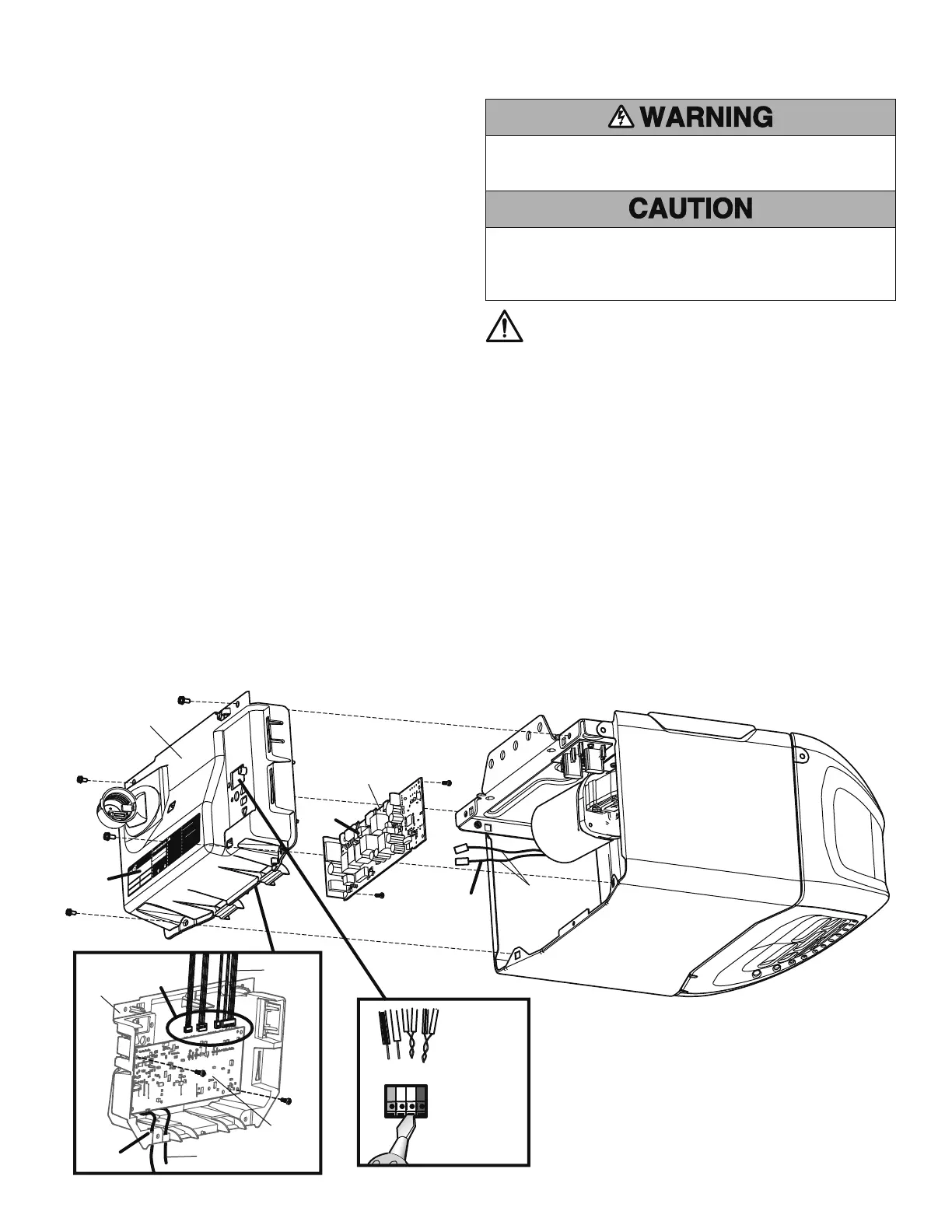

End Panel Replacement
To prevent possible SERIOUS INJURY or DEATH:
• Disconnect ALL electric and battery power BEFORE performing
ANY service or maintenance.
To prevent damage to the receiver/logic board, DO NOT touch printed
circuit board of replacement receiver/logic board during installation.
ALWAYS wear protective gloves and eye protection when changing
the battery or working around the battery compartment.
A
B
D
C
E
F
WARNING t
AVER
TISSEMENT
WARNING: To avoid SERIOUS
PERSONAL INJURY or DEATH
from electrocution, disconnect
ALL electric and battery power
BEFORE performing ANY
maintenance.
AVERTISSEMENT: Pour éviter
des BLESSURES GRAVES ou la
MORT par électrocution,
débrancher l’alimentation
électrique et de batterie AVANT
TOUTE intervention de
maintenance.
PA
RT
NUMBER:
SERIAL NUMBER
DATE:
132B2759-5
MAC ADDRESS
IC: 2666A -
FCC ID:
To connect to a Wi-Fi Network, visit
wifihelp.chamberlain.com for more
details. You will need your "MyQ Serial
Number
" to complete setup.
100W Max26W
Max
THE CHAMBERLAIN GROUP INC.
ELMHURST IL, 60126, USA
Assembled in Mexico
CONTAINS:
FCC ID: COFWMNBM11
IC: 10239A-WMNBM11
Pour vous connecter à un réseau Wi-Fi,
visitez wifihelp.chamberlain.com pour
plusde détails. Vous aurez besoin de votre
« Numéro de Série MyQ » pour
compléter l’installation.
NETWORK SETUP CODE
Red
White
White
Grey
Receiver
Logic
Board
Receiver
Logic
Board
End
Panel
Antenna
wires
End
Panel
Wire
Harnesses
Light Socket Wires
To insert or remove
the wires from the
terminal, push in
the tab with a
screwdriver tip.
Installation
NOTE: The products illustrated in the instructions are for reference. Your
product may look different.
1. Disconnect electrical and battery power (if applicable) to the garage
door opener.
2. Remove the light lens.
• To remove the lens press the release tabs on both sides of lens.
Gently rotate lens back and downward until the lens hinge is in the
fully open position. Lift lens up slightly and remove.
OR
• Press the release tabs on both side of the lens. Squeeze the light
lens clips to remove lens from end panel.
OR
• Remove the light lens by pulling the top sides of the light lens and
rotate the light lens down. Squeeze the light lens clips to remove
lens from end panel.
3. Disconnect the wires (A).
4. Remove the end panel.
• Unplug the wire harnesses from the receiver logic board (B).
• Remove the receiver logic board (C).
• Remove antenna wires from holes in the old end panel (D).
• Unplug the wires for the light socket (E).
5. A blank label has been provided with your replacement end panel.
Copy the MyQ
®
Serial Number and all other information from the
original end panel label to the new label. This information is needed
when connecting your garage door opener to the Internet. Apply new
label to replacement end panel (F).
6. Discard old end panel.
7. Install the new end panel.
• Connect the wire harnesses to the receiver logic board (B).
• Reinstall the receiver logic board (C).
• Insert the antenna wires through the holes in the end panel (D).
• Connect the wires to the light socket (E ).
• Attach the end panel.
8. Reinsert the wires (A).
Door control wires: • white wire into the white terminal.
• white/red wire into the red terminal.
Safety sensor wires: • white wires into the white terminal.
• white/black wires into the grey terminal.
9. Attach the light lens. Make sure the antenna wires are hanging
straight down.
10. Reconnect power to the garage door opener.
11. Test of the safety reverse system. Refer to the owner’s manual.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer
or birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov
