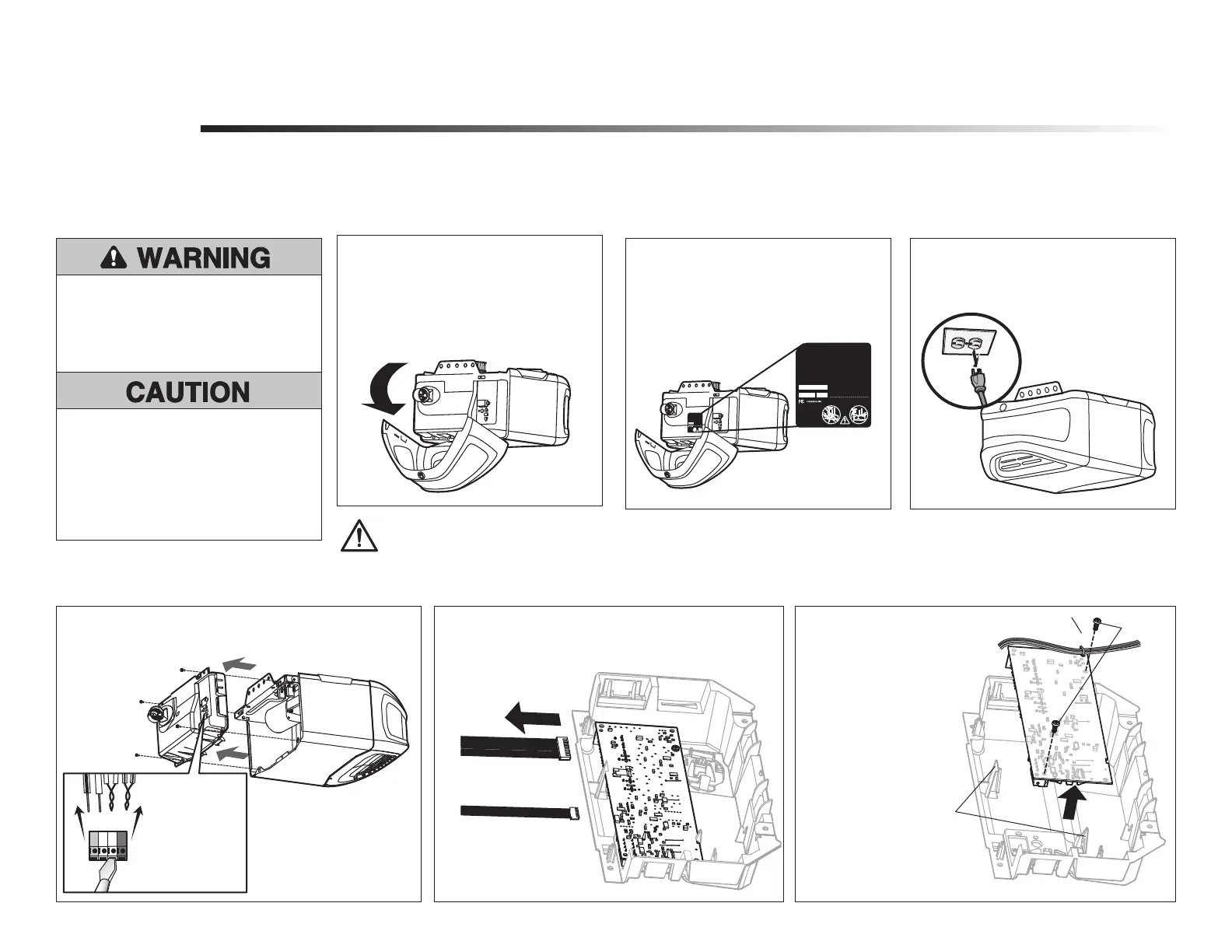

Before you begin

Installation

RECEIVER LOGIC BOARD REPLACEMENT

Models 050ACTBMC and 050ACTBLKMC

Replaces 050ACTWF and 050ACTWFLK

1.2 To maintain your warranty, place the

provided label over the existing label

on the end panel of the garage door

opener.

1.1 Remove the light lens by pulling the

top sides of the light lens and rotate the

light lens down. Squeeze the light lens

clips to remove lens from end panel.

Your garage door opener has an internal gateway located on the receiver logic board. After installing the new receiver logic board, use the myQ

serial number found on the provided label to add your

garage door opener to your myQ account. The products illustrated in the instructions are for reference. Your product may look different.

1.3 Disconnect power to the garage door

opener.

Remove the receiver logic board

2.1 Disconnect the wires from the quick-connect terminals (A).

Remove the receiver logic board end panel from the garage

door opener.

2.2 Unplug the wire harnesses from the receiver logic

board. You may need needle-nosed pliers to remove

the harnesses.

To prevent possible SERIOUS INJURY or

DEATH:

• Disconnect ALL electric and battery

power BEFORE performing ANY service

or maintenance.

To prevent damage to the receiver/logic

board, DO NOT touch printed circuit board

of replacement receiver/logic board during

installation.

ALWAYS wear protective gloves and eye

protection when changing the battery or

working around the battery compartment.

To insert or remove

the wires from the

terminal, push in the

tab with a

screwdriver tip.

Red

White

Grey

2.3 Remove the receiver

logic board from the

end panel by removing

the 2 screws and

releasing the 2 clips.

Screws

Wire clip

Clips

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth

defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
