DANGER s PELIGRO

132C2280-3D

TO ERASE ALL

RECEIVER CODES

1. Press and HOLD

receiver orange

ERASE button

6 seconds. Indicator

light will turn ON.

2. Release button

when light turns OFF.

CANADA:

PART NO.: NO. DE PIEZA:

DATE:

THE CHAMBERLAIN

GROUP, INC., USA

Ensamblado en México

Assembled in Mexico

ELIMINACIÓN DE

TODOS LOS CÓDIGOS DEL

RECEPTOR

1. MANTENGA PRESIONADO

el botón naranja "ERASE"

del receptor durante 6

segundos. La luz del

indicador se encenderá.

2. Suelte el botón cuando la

luz se apague.

DANGER s PELIGRO

132C2280-3D

TO ERASE ALL

RECEIVER CODES

1. Press and HOLD

receiver orange

ERASE button

6 seconds. Indicator

light will turn ON.

2. Release button

when light turns OFF.

CANADA:

PART NO.: NO. DE PIEZA:

DATE:

THE CHAMBERLAIN

GROUP, INC., USA

Ensamblado en México

Assembled in Mexico

ELIMINACIÓN DE

TODOS LOS CÓDIGOS DEL

RECEPTOR

1. MANTENGAPRESIONADO

el botón naranja "ERASE"

del receptor durante 6

segundos. La luz del

indicador se encenderá.

2. Suelte el botón cuando la

luz se apague.

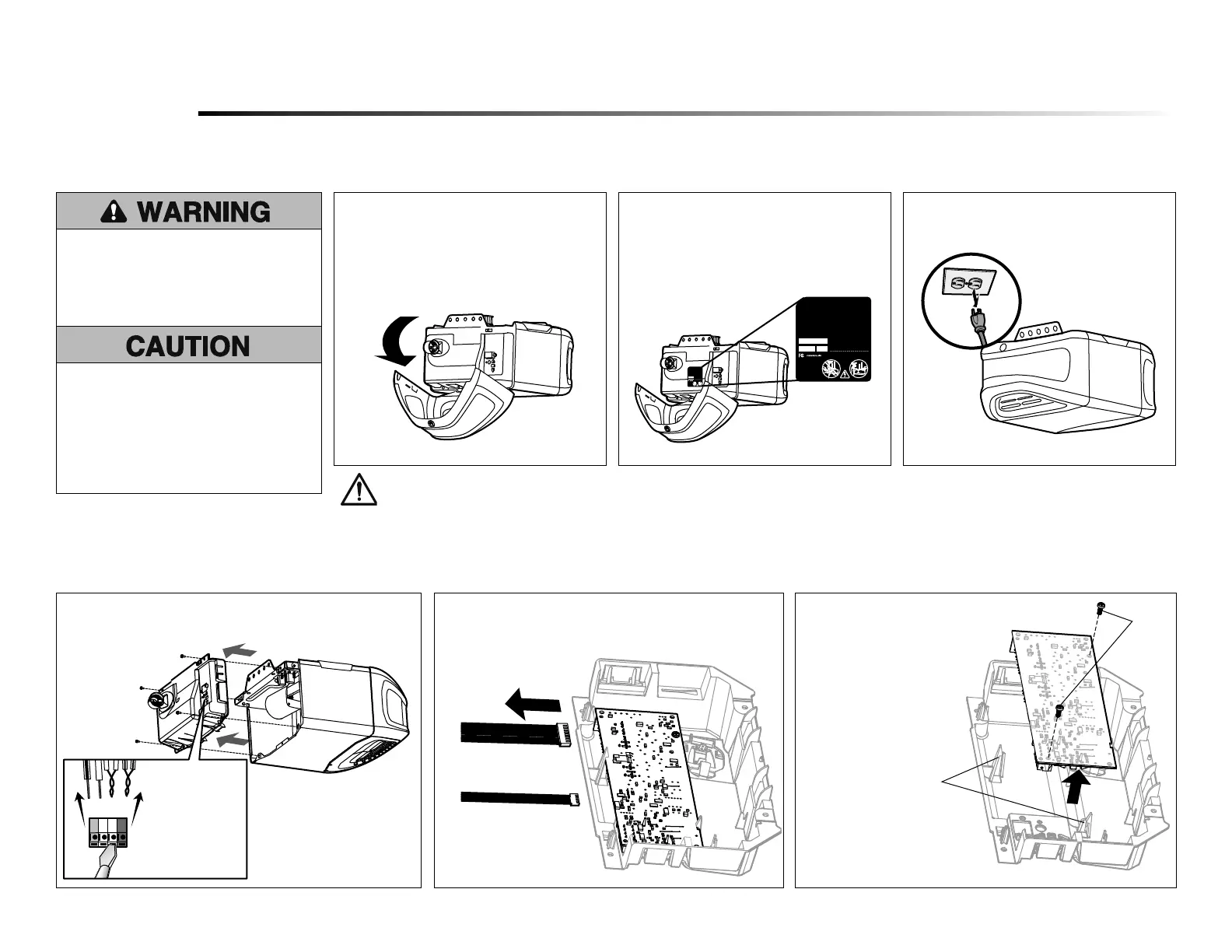

Before you begin

Installation

RECEIVER LOGIC BOARD REPLACEMENT

Model 45ACT

1.2 To maintain your warranty, place the

provided label over the existing label on

the end panel of the garage door opener.

1.1 Remove the light lens by pulling the top

sides of the light lens and rotate the light

lens down. Squeeze the light lens clips to

remove lens from end panel.

NOTE: The products illustrated in the instructions are for reference. Your product may look different.

1.3 Disconnect power to the garage door

opener.

Remove the receiver logic board

2.1 Disconnect the wires from the quick-connect terminals (A).

Remove the receiver logic board end panel from the garage

door opener.

2.2 Unplug the wire harnesses from the receiver logic

board. You may need needle-nosed pliers, to

remove the harnesses.

2.3 Remove the receiver

logic board from the

end panel by removing

the 2 screws and

releasing the 2 clips.

To prevent possible SERIOUS INJURY or

DEATH:

• Disconnect ALL electric and battery

power BEFORE performing ANY service

or maintenance.

To prevent damage to the receiver/logic

board, DO NOT touch printed circuit board

of replacement receiver/logic board during

installation.

ALWAYS wear protective gloves and eye

protection when changing the battery or

working around the battery compartment.

Screws

Clips

To insert or remove

the wires from the

terminal, push in the

tab with a

screwdriver tip.

Red

White

Grey

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth

defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
