Sida 1/4

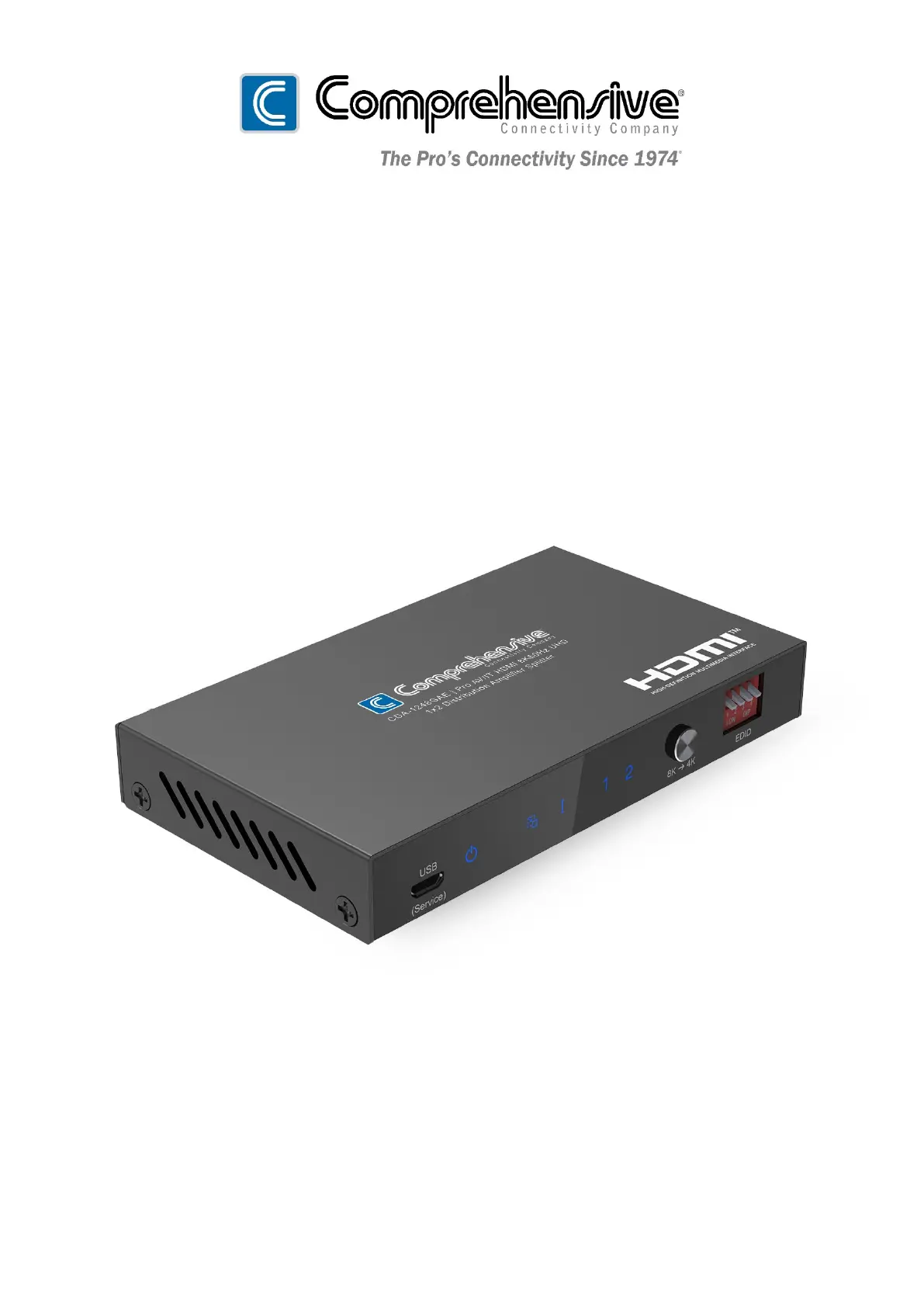

CDA-1248GAE
Pro AV/IT Integrator Series™ HDMI 8K60Hz UHD 1x2 Distribution Amplifier
Splitter with Audio Extraction, EDID Management
User Manual
Safety Instructions
Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual
for future reference:
• To prevent electric shock, do not attempt to open the product.
• Only qualified personnel should perform any repairs or maintenance.
• Always place the product on a stable, flat surface to prevent it from falling.
• Do not expose the product to water, moisture, or high-humidity environments to avoid the risk of damage.
• To prevent damage from direct sunlight or high temperatures, do not expose the product to such environments.
• Do not place the product near heat sources like radiators, heat registers, stoves, or other heat-producing apparatus.
• Do not place any objects on top of the product to avoid damage.
• Use only the attachments and accessories specified by the manufacturer.
• During lightning storms or prolonged periods of disuse, unplug the power supply to prevent damage.
Introduction
The Comprehensive CDA-1248GAE is a HDMI 1x2 Splitter that distributes one (1) HDMI source signal to two (2) HDMI displays
simultaneously which supports resolutions up to 8K@60Hz (4:4:4) 48Gbps. The CDA-1248GAE can extract audio from the HDMI
source to both optical and analog outputs simultaneously.
The CDA-1248GAE can handle and split 8K UHD content as it was meant to be seen! Supports 8K@60Hz, 4K@120Hz, and 1080p
@240Hz. Enjoy sharp, crystal-clear visuals and smooth motion without any compromise in quality.
Features
• HDMI 2.1, HDCP 2.3/2.2/1.4 complaint
• Supports 48Gbps video bandwidth
• Supports EDID management
• Supports video resolutions up to 8K@60Hz (4:4:4), 4K@120Hz, and 1080p@240Hz
• Supports High Dynamic Range (HDR) video pass-through
• Supports digital and analog audio extract output from HDMI source
• Supports Consumer Electronics Control (CEC) function
• EDID can be selected COPY and AUTO modes via the dial switch on panel
• Supports HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-
HD Master Audio, DSD
• 3 Year Worry-Free Warranty

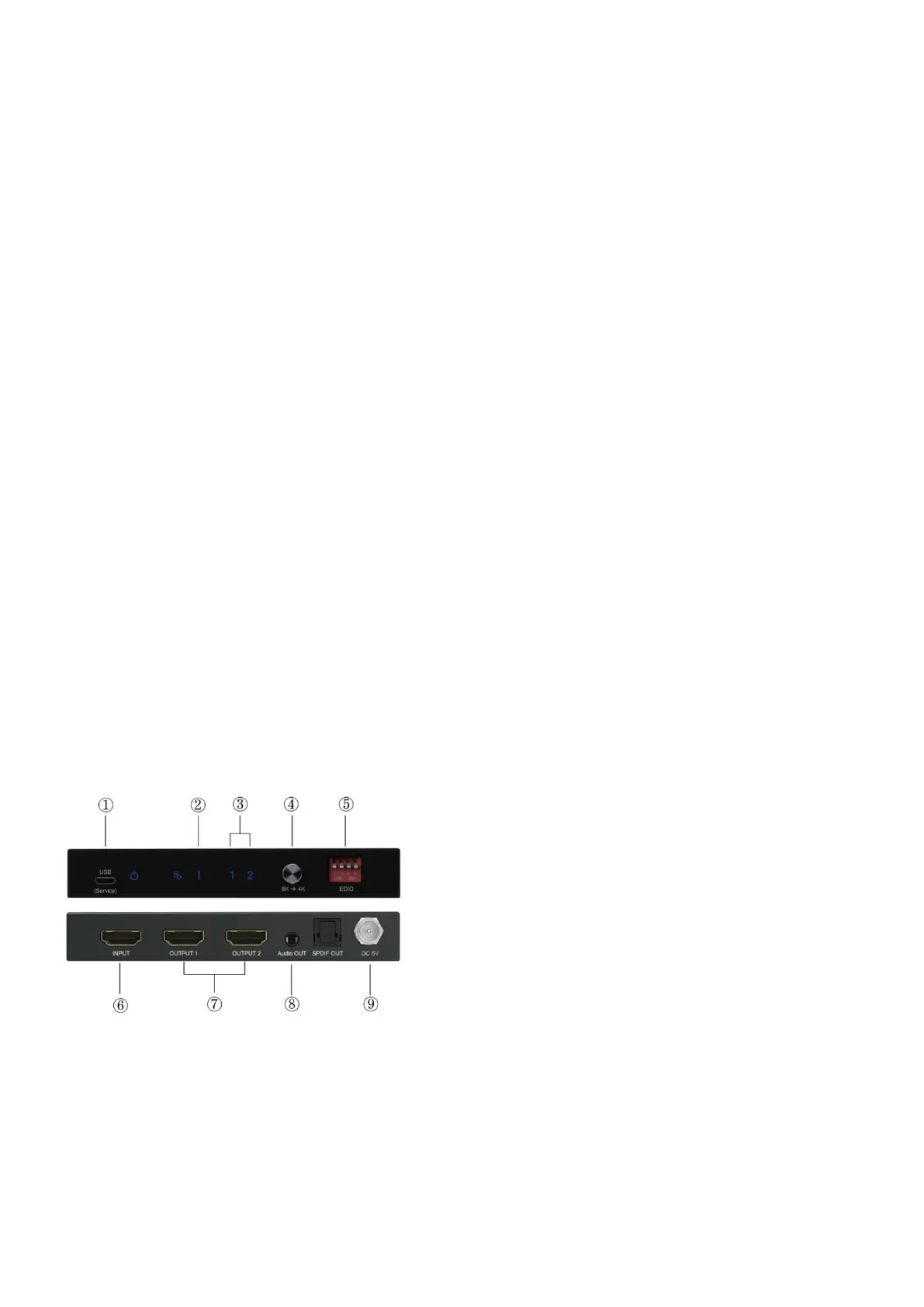

Panel Description
1. USB(Service): For Factory Use Only
2. I: HDMI Input LED Indicator
3. 1-2: HDMI Output 1-2 LED Indicator
4. 8K→ 4K: Down-scaler Mode Select Button
ON is In Down-scaler EDID Mode which can downscale the Input 8K Resolution to 4K or 1080p by the UHD (4K) or FHD (1080p)
Display for fixed connect to the output2 port and 8K Resolution to the 8K Displays Simultaneously for fixed connect to the
output1 port.
5. EDID: DIP Switch for Copy Output1 EDID and Fifteen Default EDID modes
6. INPUT: HDMI Input port
7. OUTPUT 1-2: HDMI Output 1-2 port
8. Audio Output and SPDIF Output: Connect to the Audio Output Devices via 3.5mm Cable and SPDIF Cable
9. DC/5V: DC 5V Input
