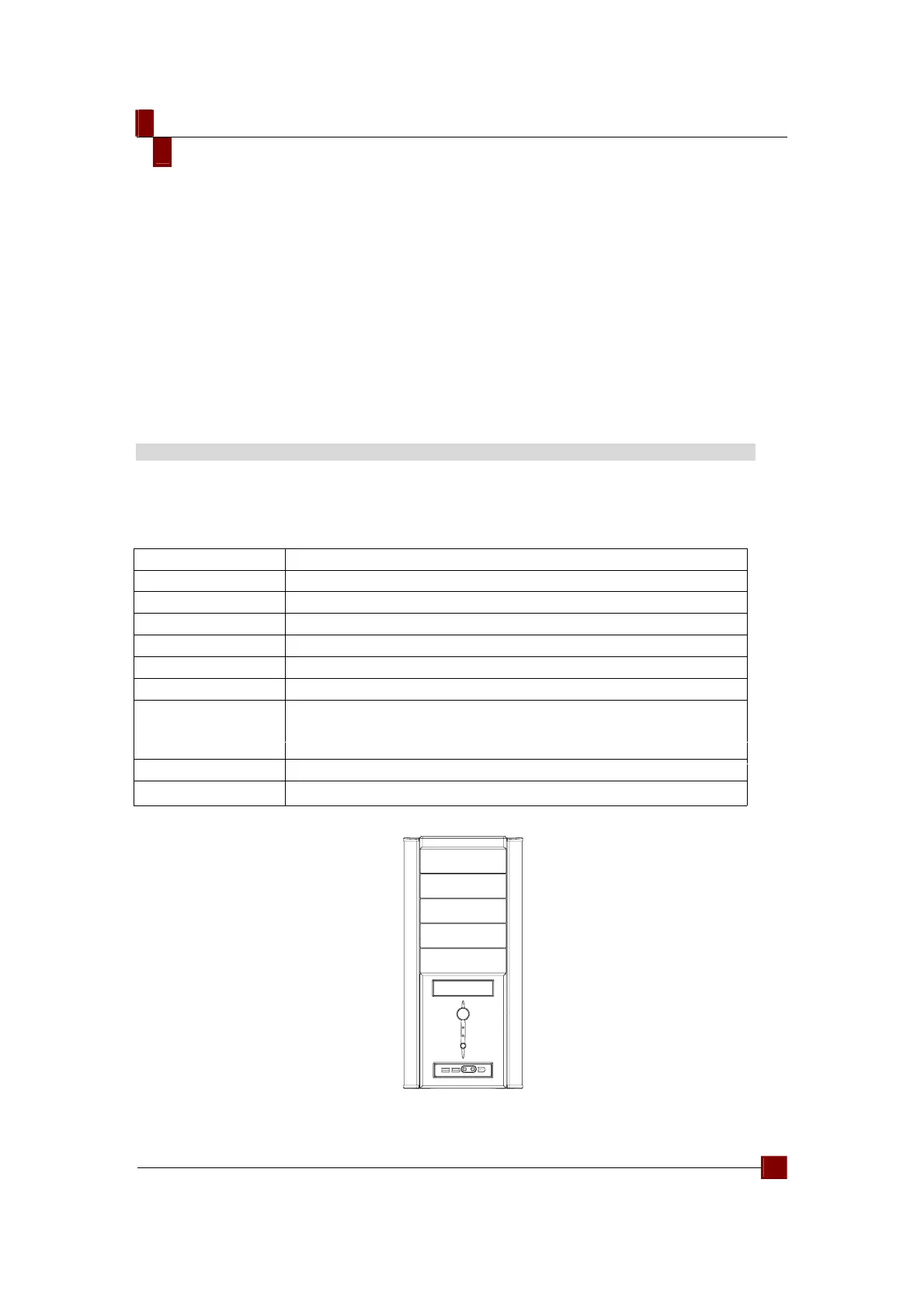

Centurion 534
English
1
Warranty Information
Cooler Master guarantees that this device is free of defect in material and
workmanship, and provides a two-year limited hardware warranty for the device
commencing from the date of purchase. Please keep your receipt for proof of
purchase.
This product is designed for computer usage only. Using this device in any other
capacity voids the warranty. If you are not familiar with computer hardware
installation, please ask for professional assistance.
The warranty offered covers normal use. Defect or damage that result from
improper operation, storage, misuse or abuse, accident or neglect, which are not
the fault of Cooler Master, are exclude from warranty coverage.
Note: the warranty is voided by removal or alternation of product or parts identification labels.
Chapter 1: Product Overview
Specifications:
Available Color Silver / Black
Dimensions L480 x W202 x H435 mm
Weight 9.7kg
Material Aluminum & Mesh bezel, SECC chassis
M/B Type ATX , m-ATX
5.25" Drive Bay 5 (Exposed)
3.5" Drive Bay 1 (Exposed); 4 (Hidden)
Cooling System One 120x120x25mm rear fan(exhaust);
One 120x120x25mm front fan (intake) (optional)
I/O Panel USB2.0 x 2; MIC x 1; SPK x 1; IEEE1394 x 1
Power Supply Standard ATX PS2, 380W. support LGA775 (optional)
Diagram:
One 120x120x25mm side fan (intake)
Centurion 534
English!
2
Parts list:
Item Part Name Q’ty Item Part Name Q’ty
1 Small Shield 1 8 Latch 1
2 Big Shield 5 9 Interface card Shield 7
3 I/O Module 1 10 Right Side Casing 1
4 Power Key 1 11 Left Side Casing 1
5 Reset Key 1 12 Manual Screw 4
6 Casing 1 13 Air Scoop 1
7 IO panel 1 14 120 Fan 2
Fittings Pack
Figure Name Q’ty Used for
6.5mm Outer thick
inner thin copper post 2 Used especially for positioning
the mainboard.
6.5mm Outer thick
inner thin copper post 7 Screw on the Mainboard tray
6.5mm Inner/outer
thick copper post 4 For Xeon Only
Screw Pack
Figure Name Q’ty Used for
M3*5 Screws 19 Screw on the Mainboard
tray ,FDD
6*10 Screws 4 Installed on the mainboard to
fix the CPU
M3*7 Screws 9 Secures CD ROM
Centurion 534
English
3
Chapter 2: Installation
Removing side panels
1. Loosen the screws manually; slide the side casing backward to remove it.
2. To assemble it, please follow the above step reversely.
Installing the Motherboard
1. Remove the side casing.
2. Lie down the casing.
3. Aiming at the holes on the PCB, and secure the alumnus post with screws.
4. Align the holes of PCB and casing. Secure them by fastening screws on the
PCB.
Install add-on card
1. Press to loosen the latch on the inner casing.
2. Insert the add-on card.
