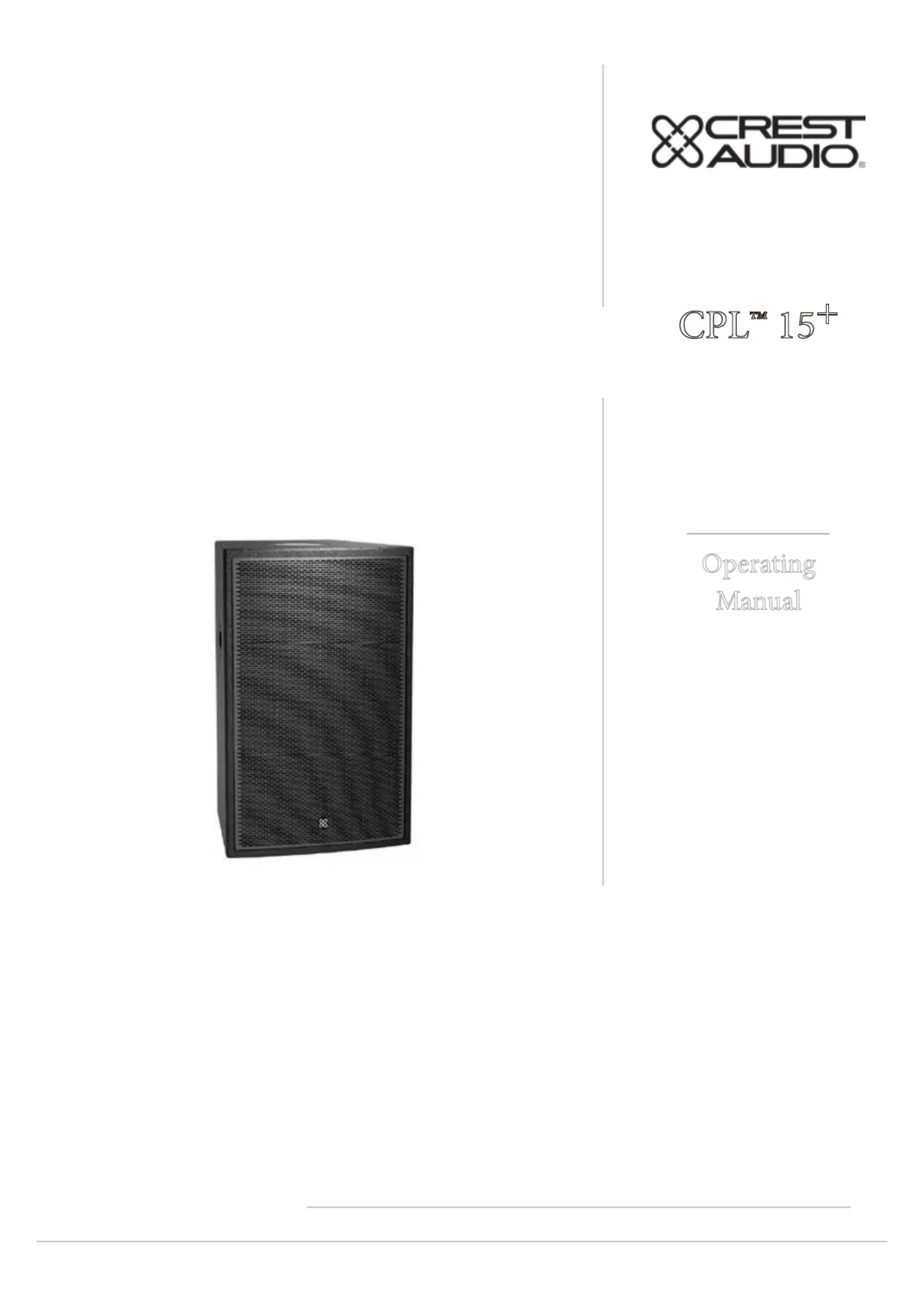

Passive 2-way
Loudspeaker System
Operating
Manual
CPL™ 15+
8
4 2-conductor cable -
4 2+-conductor cable
4- -conductor cable 1
4 1+-conductor cable
Poweramp
Combination Output
Channel B
Channel A
Poweramp
Channel B
1+
1-
2+
2-
1+
1-
2+
2-
1+
1-
2+
2-
Poweramp
Channel B
Poweramp
Channel A
1+
1-
2+
2-
1+
1-
2+
1+
1-
2+
2-
Poweramp
Channel A
2-
Speaker Speaker #1 #2
Speaker # #n Speaker 2
Signal Changer Cable Adapter
2+ -> 1+
2- -> 1-
1+1-
2-2+
1+
1-
2+
2-
1+
1-
2+
2-
Input Cup
4-pin twist-lock
IN T U / HRLO ROP TH U
1+
1-
2-
2+
4-pin twist-lock
IN T U / HRLO RUOP TH
1+
1-
2-
2+
IN T U / HRLO RUOP TH
1+
1-
2-
2+
4-pin Euroblock
X- sOver & Speaker
1+
1-
X-Over
+
-
+
-
HF
LF
1+
1-
2+
2-
Poweramp
Channel B
1+
1-
2+
2-
Poweramp
Channel A
Speaker #1
Speaker #n
Speaker n#: The number of speakers in
parallel must refer to the rated impedance.
It is recommended that the impedance in
parallel is not less than 4.
CPL+ Series Input & Loop Through Schematics
CPL+ Loop rough System Series Schematics
INPUT & LOOP THROUGH SCHEMATICSEN
10
e loudspeaker shall consist of a 15 inch (381 mm) low frequency transducer with 3 inch (76 mm) voice coil and
one 1 inch (25.4 mm) exit Neodymium compression driver with a 1.7 inch (44 mm) voice coil and a frequency
dividing network installed within the enclosure.
Performance specications of a typical production unit shall be: Measured sensitivity SPL at 1 m (3.3) with
2.83V input, shall be 97 dB-SPL. Usable frequency response shall extend from 47 Hz to 20 kHz (10 dB below rated
sensitivity, in full space, with no external equalization). Nominal impedance shall be 8 Ohms. Rated power
capacity shall be at least 500 Watts continuous power and 2,000 Watts peak power, dened as 6 dB above a test
signal of ltered random noise.
e system shall be protected against damage from occasional over-powering limiting the power to the network
and transducers. e compression driver shall be capable of even coverage at a nominal 90° horizontal through
60° vertical distributed pattern. e horn shall be rotatable.
e enclosure shall be constructed from prime-grade 18 mm plywood. e loudspeaker shall be equipped with a
total of sixteen (16) suspension points. e grille shall be of heavy-duty steel backed with acoustically transparent
foam. e external wiring shall be via either two 4-pin twist-lock or one 4-pin Euroblock connectors. e
loudspeaker shall be 27.36 inches (695 mm) high by 17.36 inches (441 mm) wide by 17.52 inches (445 mm) deep
weighing 67.2 pounds (30.5 kg). e nish shall be a paintable lightly textured black or white.
e loudspeaker shall be the Crest Audio CPL 15 +.
ARCHITECT'S & ENGINEER'S SPECIFICATIONSEN
Produktspecifikationer
| Varumärke: | Crest Audio |
| Kategori: | högtalare |
| Modell: | CPL 15+ |
