CAEN- MLO
In troduction
Crestron
®
- CAEN MLO Series automation enclosures provide a professional centralized dimming solution for residential and
commercial applications. CAEN MLO enclosures are available in three sizes for surface and flush wall- and allow -mount
installation. They provide a manageable installation with abundant provisions for wire termination and electrical knockouts.

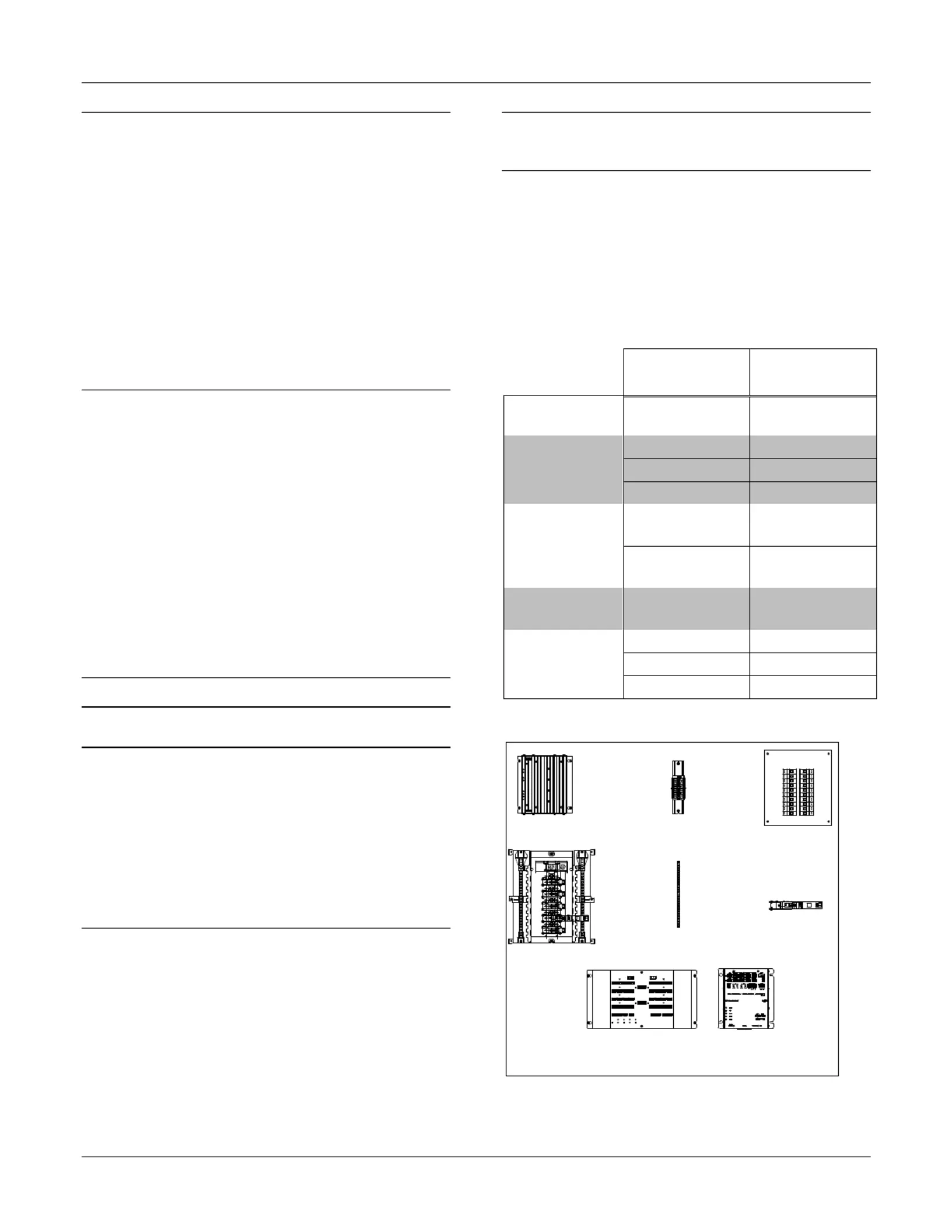

Features and Functions

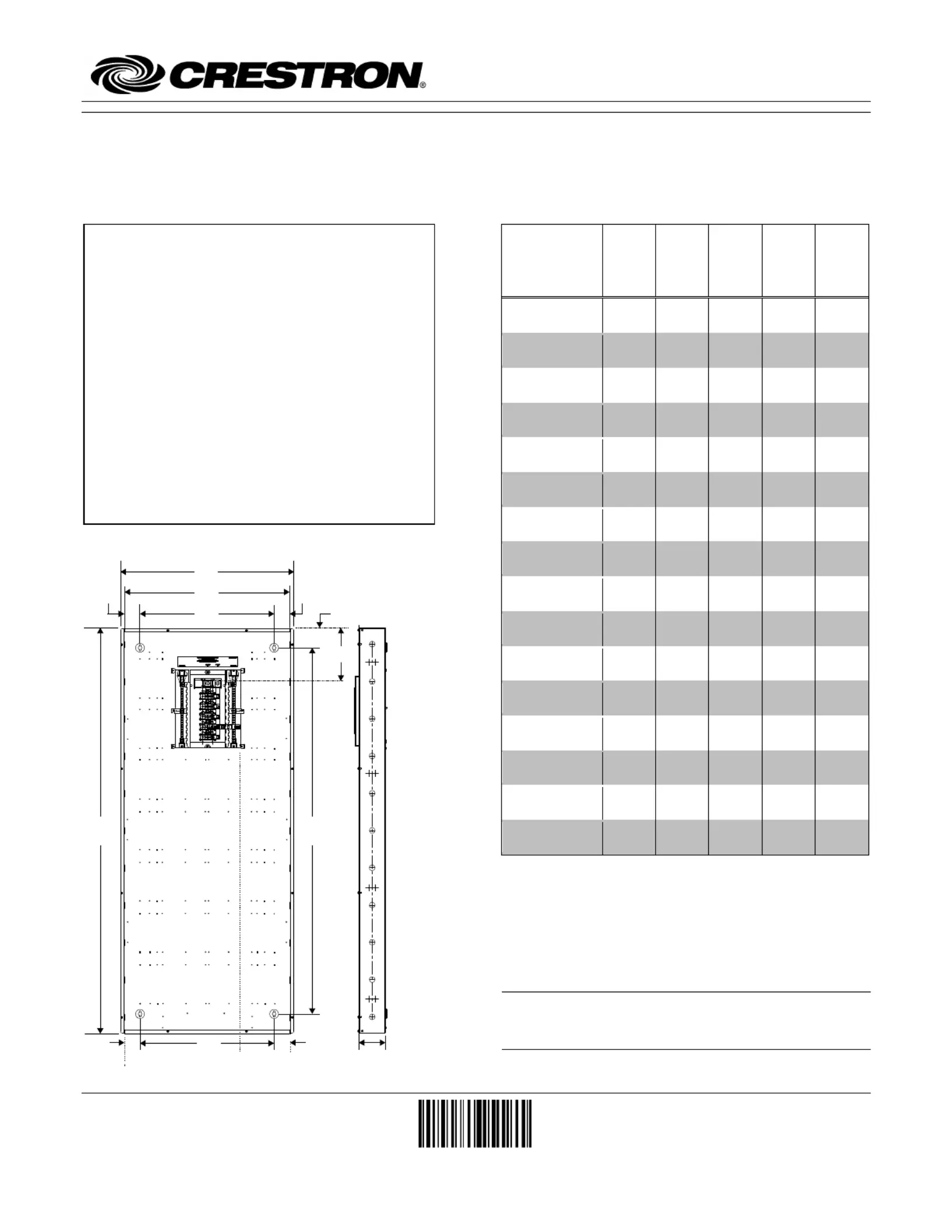

CAEN-MLO Overall Dimensions (Front and Side Views)
Specifications
DIMENSIONS
1
CAEN-
5x2-
MLO-
120/2P
CAEN-
5x2-
MLO-
120/3P
CAEN-
5x1-
MLO-
120/2P
CAEN-
5x1-
MLO-
120/3P
CAEN-
3x1-
MLO-
120/2P
H1
62
(1575)
62
(1575)
62
(1575)
62
(1575)
38 7/8
( )987
H2
2 11/16
(68)
2 11/16
(68)
2 11/16
(68)
2 11/16
( )68
2 1/8
(53)
H3
56
(1422)
56
(1422)
56
(1422)
56
(1422)
34
( )863
H4
7 5/8
(194)
7 5/8
(194)
7 5/8
(194)
7 5/8
(194)
6
(153)
W1
2 6 1/2
(673)
2 6 1/2
(673)
15 3/8
( )390
15 3/8
( )390
15 3/8
( )390
W2
25 1/2
(647)
25 1/2
(647)
14 3/8
(365)
14 3/8
(365)
14 3/8
(365)
W3
2 1/2
(63)
2 1/2
(63)
1 3/4
(44)
1 3/4
(44)
1 3/4
(44)
W4
20 1/2
(520)
20 1/2
(520)
10 7/8
(276)
10 7/8
(276)
10 7/8
(276)
W5
2
20 1/2
(520)
20 1/2
(520)
9 7/8
(250)
9 7/8
(250)
9 7/8
(250)
W6
2 1/2
(63)
2 1/2
(63)
2 3/4
(69)
2 3/4
(69)
2 3/4
(69)
D1
4 1/8
(104)
4 1/8
(104)
4 1/8
(104)
4 1/8
(104)
4 1/8
(104)
Cover
Thickness
3
1/16
(1)
1/16
(1)
1/16
(1)
1/16
(1)
1/16
(1)
Cover Height
62 3/4
(1593)
62 3/4
(1593)
62 3/4
(1593)
62 3/4
(1593)
39 5/8
(1006)
Cover Width
27 1/4
(692)
27 1/4
(692)
16 1/8
(409)
16 1/8
(409)
16 1/8
(409)
Weight (empty)
4
73
(33.2)
73
(33.2)
50
(22.7)
50
(22.7)
33
(15)
Maximum
Weight (filled)
141
(64)
141
(64)
88
(40)
88
(40)
53
(24.1)
1. Length is specified in inches and millimeters (in parentheses).
Weight is specified in pounds and kilograms (in parentheses).
2. The lower keyholes are not symmetrically spaced within
single- wide enclosures.
3. Thickness does not include breaker access door. The breaker
access door extends 11/16 inches (18 millimeters) above the cover
on all cabinets.
4. Weight (empty) is the weight of an empty enclosure with cover.
NOTE: Double-winged mounting holes are located on
the enclosure, which allow inverted mounting in flood
prone areas without violating breaker height standards.
W1
W2
W4
W3
W5
H1
H2
H3
H4
W6
D1
W3
W6
• Houses Crestron lighting modules, terminal blocks,
automation control system, circuit breaker panel, up
to 80 controlled circuits, up to 20 circuit breakers,
dead front, and third party products-
• Split phase (120/240 Vac) or three phase
(120/208 Vac) main lugs at 50/60 Hz phase- -to
neutral and 225 A max
• 16-gauge galvanized steel box, invertible
• Flush or surface mount installation
• Vented front cover with hinged breaker access door
• Eaton
®
CH circuit breakers (20 A, single- pole,
120 V, 10 kAIC, and 4 AWG max wire gauge):
CLB- -120 20A, CLB-120 20A- - AFCI, and
CLB- - -120 20A GFCI (all sold separately)
Crestron Electronics, Inc. Installation Guide – DOC. 7579C
15 Volvo Drive Rockleigh, NJ 07647 (2037330)
Tel: 888.CRESTRON 06.14
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
