Sida 1/2

DO GUIDE

The brightness of the SSW may be custom programmed as follows:

• If the SSW is connected to a touch screen, brightness is controlled by sending a custom

property to the touch screen in Crestron Fusion

software. For more information, refer to

the embedded Crestron Fusion help le.

• If the SSW is connected to a control system, brightness is controlled via custom

programming in SIMPL Windows or Crestron Studio. For more information, refer to the

embedded SIMPL Windows or Crestron Studio help les.

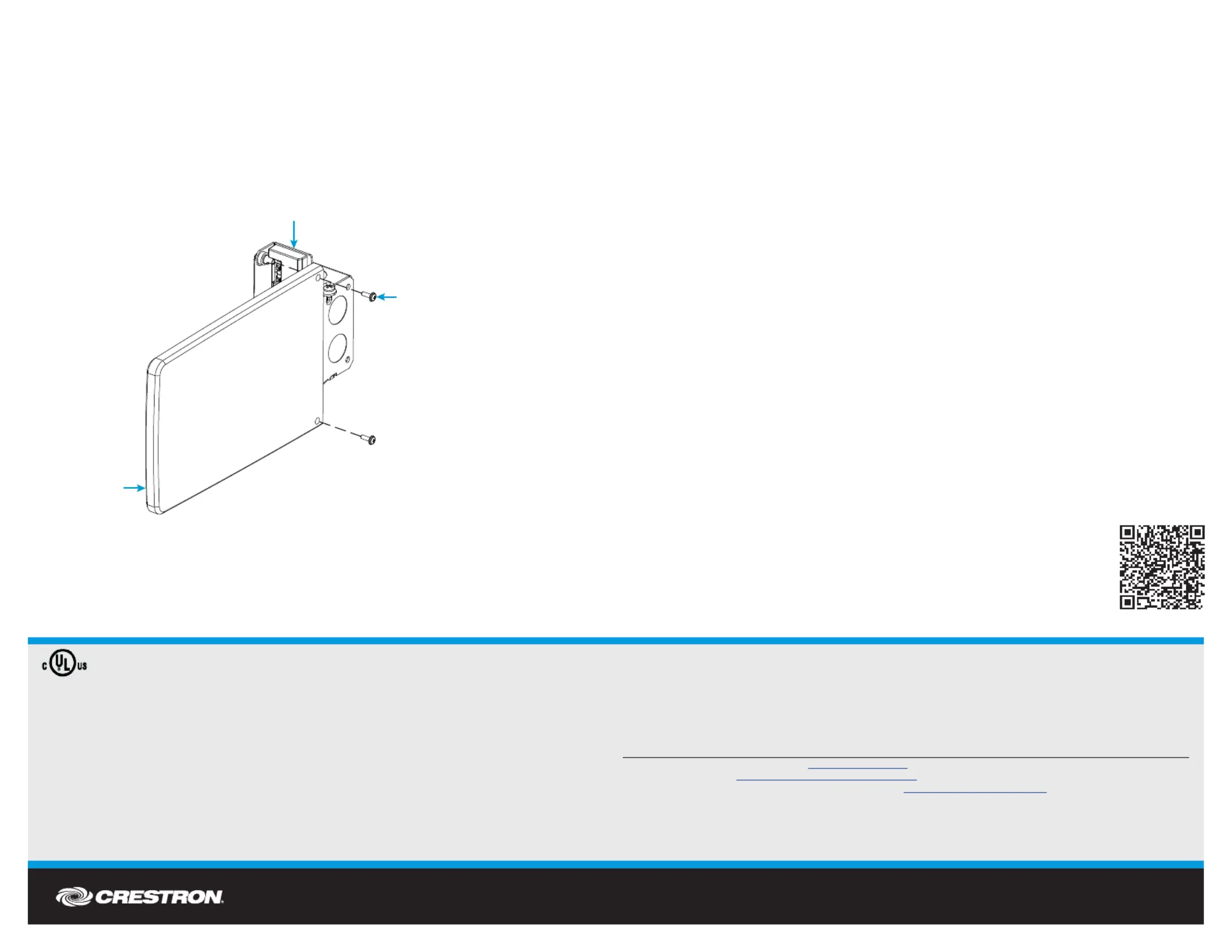

DO Install the Device

The SSW installs over a standard 1-gang U.S. electrical box. Once installed, the touch screen

protrudes 8.43 in (214 mm) from the mounting surface.

To install the SSW:

1. Once all cable connections have been made, attach the device assembly to the electrical

box using the two included 6-32 x 5/16 in screws and a Phillips screwdriver.

NOTE: For retrot installations, the SSW may be installed over a 1-gang plaster ring using

the same installation method described above.

SSW Series

Room Availability Hallway Sign, Wall Mount

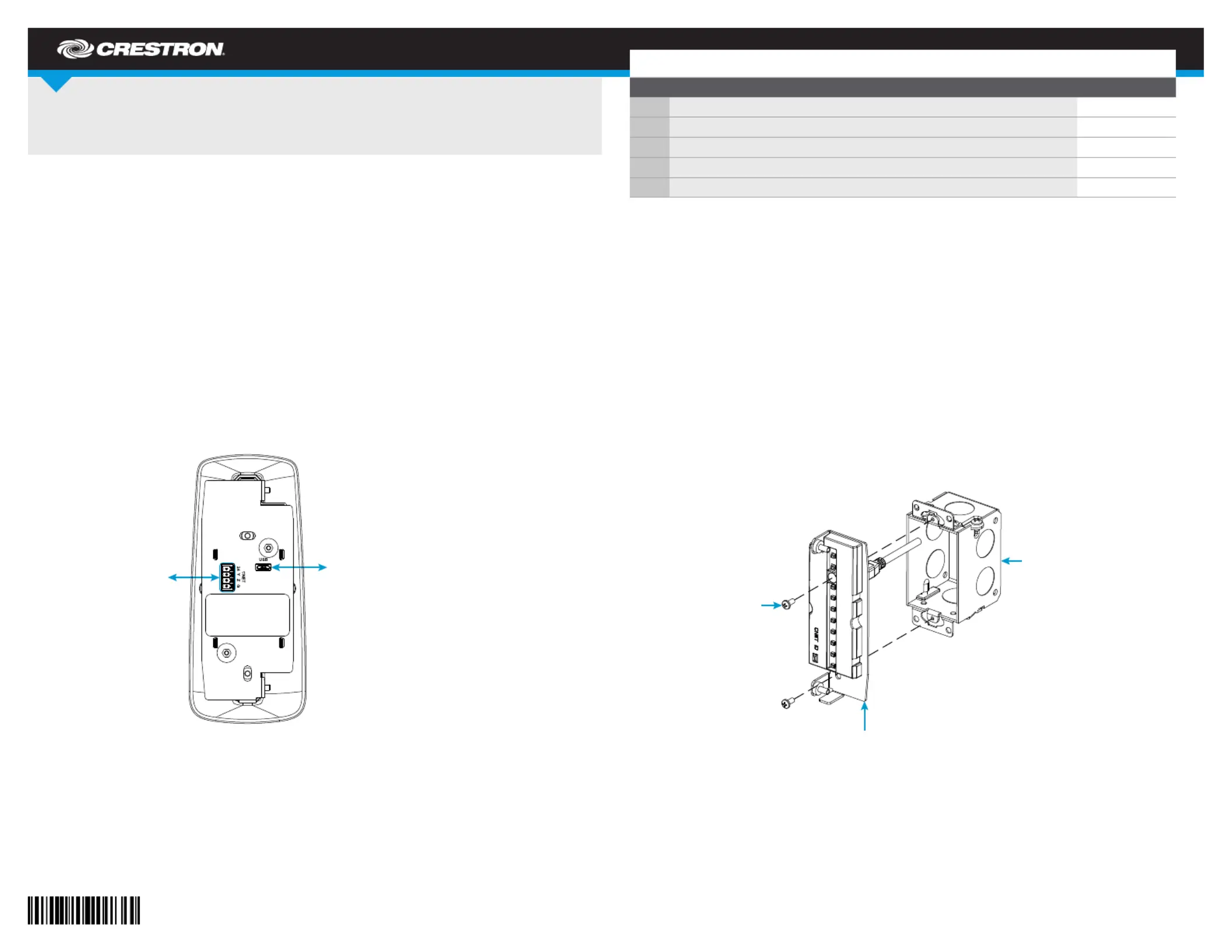

DO Connect the Device

The Crestron

SSW room availability hallway sign may be powered and controlled by a Crestron

TSS-7, TSS-10, TSW-760 or TSW-1060 touch screen via USB, or by a Crestron control system or

DMPS3 device via a Cresnet

network connection. Both connection methods are described below.

NOTE: All cable connections must be made prior to installing the SSW.

• Use the included USB cable to connect the SSW to the touch screen. Connect USB:

the cable’s USB A connector to the touch screen and the micro USB connector to the

SSW assembly. Out-of-the-box functionality is established via the touch screen room

scheduling application, with no programming required.

NOTE: The TSS-7 and TSW-760 may use either PoE (Power over Ethernet) or PoE+ to

supply power to the SSW over USB , but the TSS-10 and TSW-1060 must use only PoE+ to

supply power to the SSW.

• Use any standard Cresnet cable and the included 4-pin terminal block to Cresnet:

connect the SSW to a Crestron control system or DMPS3 device. The SSW is powered and

controlled over Cresnet via programming in SIMPL Windows or Crestron Studio

software.

NOTE: The button on the front of the assembly is used to identify the device on the CNET ID

network using the Network Device Tree View in Crestron Toolbox™ software. For more information,

refer to the embedded Crestron Toolbox help le.

DO Check the Box

QTY ITEM PART NUM.

1 Bezel, Wall Sign 4525866

1 Cable, USB 2.0, A - micro B, 6 ft (1.83 m) 2038114

1 Connector, 4-Pin 2003576

2 Screw, 4-40 x 1/2 in, SEMS, Pan Head, Phillips 2011592

2 Screw, 6-32 x 5/16 in, Pan Head, Phillips 2007221

CNET (24 Y Z G):

To Cresnet

network device

USB (Micro):

To touch screen

Assembly

1-gang U.S.

electrical

box

Screws (2):

6-32 x 5/16 in

Produktspecifikationer

Varumärke:	Crestron
Kategori:	ej kategoriserat
Modell:	SSW-100-EL
Vikt:	2600 g
Bredd:	71 mm
Djup:	218 mm
Höjd:	163 mm
Korrekt användning:	inomhus
Form:	Rektangel
Symboltyp:	Siffra
Temperatur vid drift:	5 - 45 ° C
Strömkälla av typen:	USB
