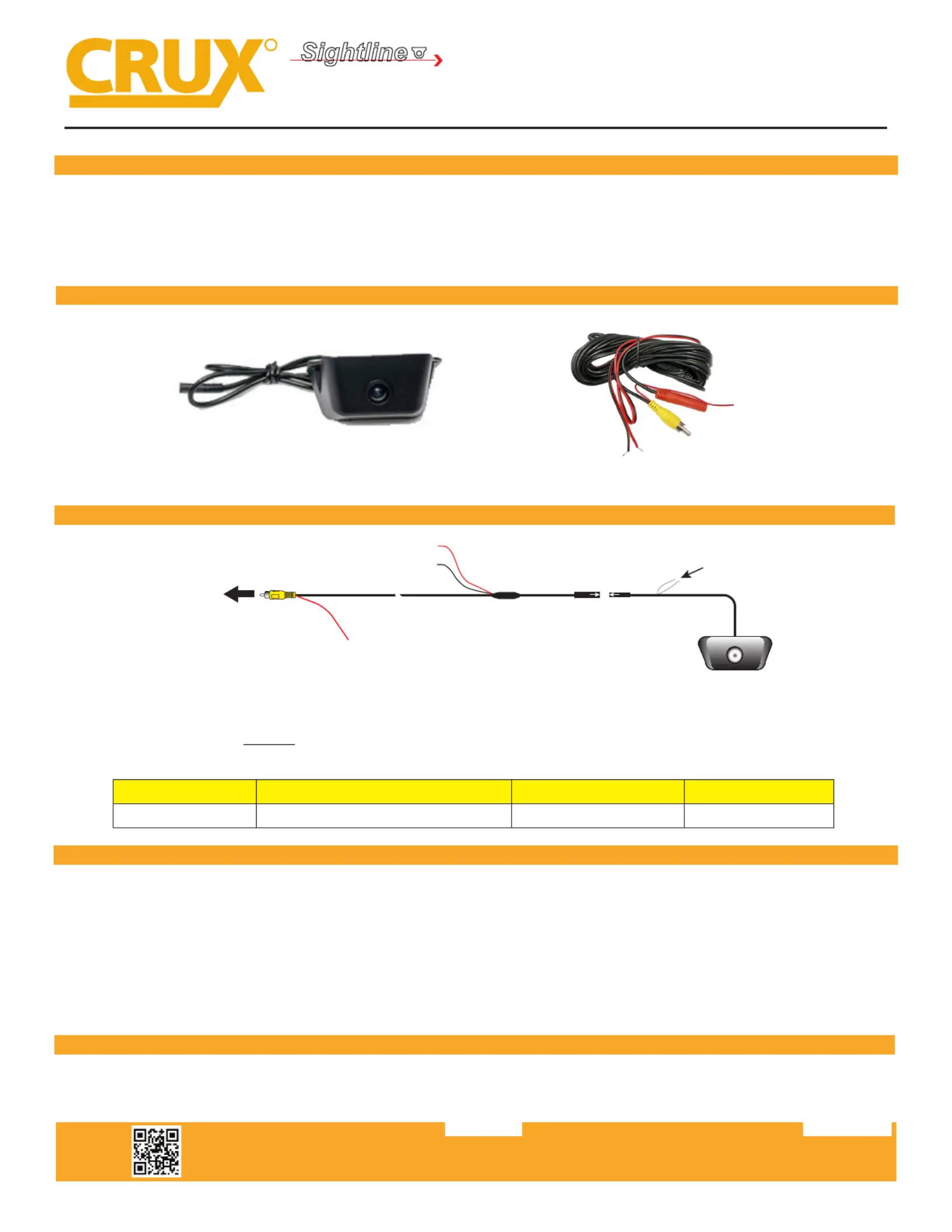

Sida 1/1
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100220
CCH-01G
Jeep Grand Cherokee Lip Mount Camera
2014 - 2017
- Installs on your Jeep Grand Cherokee’s rear hatch lip.
- 120° wide viewing angle.
- 0.4 Lux minimum for night driving.
- Selectable Parking Guide Line ON or OFF.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CCH-01G CAMERA EXTENSION CABLE
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
LIP MOUNT
CAMERA
1. The CCH-01G installs by the rear hatch release lever.
2. Run the camera cable to the inside of the rear hatch.
3. Connect the power of the camera according to the diagram above.
4. Connect the video cable of the camera to the extension cord provided.
5. Run the video extension cable to the back of the radio.
6. Connect the video cable to your aermarket radio’s camera input or to the rear view camera interface.
7. Put the gear in reverse to see the image from the camera.
INSTALLATION PROCEDURE:
1 of 1
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
Loop Wire Color Joined CutFuncon
White Parking Lines ON (default) OFF
VEHICLE APPLICATIONS:
2014 - 2017 Jeep Grand Cherokee
