Sida 1/12
RFM-APV
Multi View Integration Interface
for Select AUDI, PORSCHE & VOLKSWAGEN Vehicles
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0924191 of 12
- Adds reverse camera, front camera and 2 side camera inputs.
- Uses the steering wheel control buons or radio buons to toggle between the inputs.
- Turn signals automacally trigger the corresponding side camera.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacve parking guide lines with calibraon funcon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacve lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
PRODUCT FEATURES:

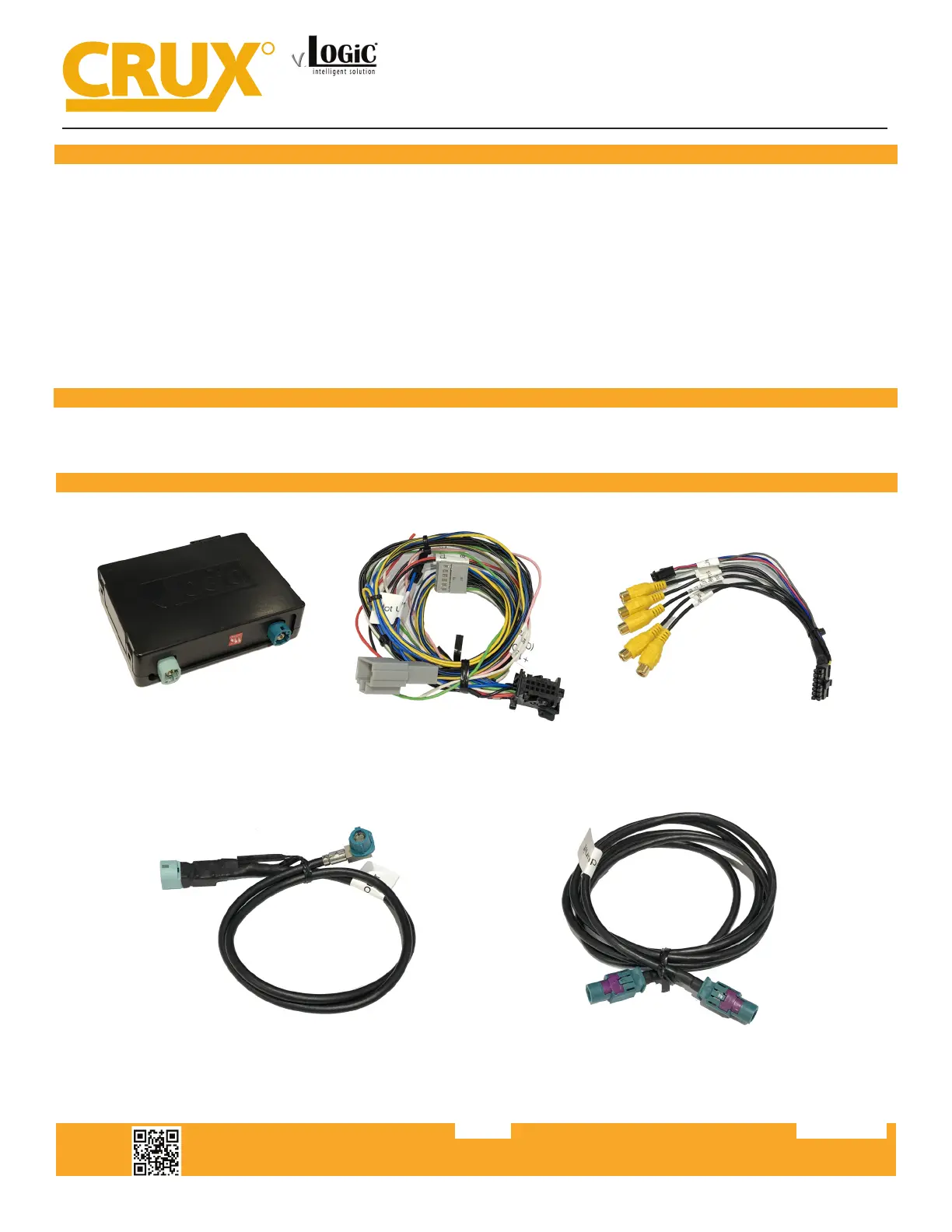

PARTS INCLUDED:
RFM-APV Module RFM-APV Harness Video Harness
LVDS1 Cable (to vehicle) LVDS 2 Cable (to radio)
NOTE:
The RFM-APV connects at the mulmedia player located in the glove box.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0924192 of 12
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
Audi A3 (8V) 7” OFF OFFON
Audi A4 (8W) 8.3” ON ON ON
Audi Q7 (4M) 8.3” ON ONOFF
Porsche Cayenne/Boxster 7” OFFON ON
VW Golf 7 / Sportsvan 6.5” OFF OFFON
VW Passat (B8) 6.5” OFF ON ON
VW Passat (B8) 8” ON ON OFF
RFM-APV
Multi View Integration Interface
for Select AUDI, PORSCHE & VOLKSWAGEN Vehicles
Rear Camera
(not included)
Front Camera
(not included)
Right Camera
(not included)
Left Camera
(not included)
LVDS 1 Cable
LVDS 2 Cable
4-pin HSD
Female LVDS Vehicle Harness
+12V Power Output (Pink)
Connect to camera power
Female Quadlock
Vehicle Harness
Multimedia player
in glove box
Video1 Video2 Video3
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.092419
3 of 12
R
INTERFACING SOLUTIONS
RFM-APV
Multi View Integration Interface
for Select AUDI, PORSCHE & VOLKSWAGEN Vehicles
INSTALLATION INSTRUCTIONS:
1. Installaon is done behind the media
player in the glove compartment.
2. Remove the dashboard side panel. 3. Remove the screw that holds the
glove compartment.
4. Remove the other screws holding
the glove compartment.
5. Pull down the glove compartment to
show the media player.
6. Remove the media player to gain
access to the connectors on the back.
7. Unplug the Gray connector from the
Quadlock connector.
8. Plug in the Gray connector to the
mate on the RFM-APV harness.
9. Locate the Pink LVDS connector and
unplug this.
