RVCCH-75DC
Rear View Integration Interface with VIM
for DODGE RAM Trucks
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.010319
1 of 3
• Adds reverse camera input to the Uconnect Touchscreen Radio
• Aermarket tailgate handle camera included
• Automacally switches to Rear-view when car is in Reverse mode
• Plug & Play Installaon
PRODUCT FEATURES:
PARTS INCLUDED:
RVCCH-75DC ModuleRVCCH-75DC HarnessCDR-02 Camera

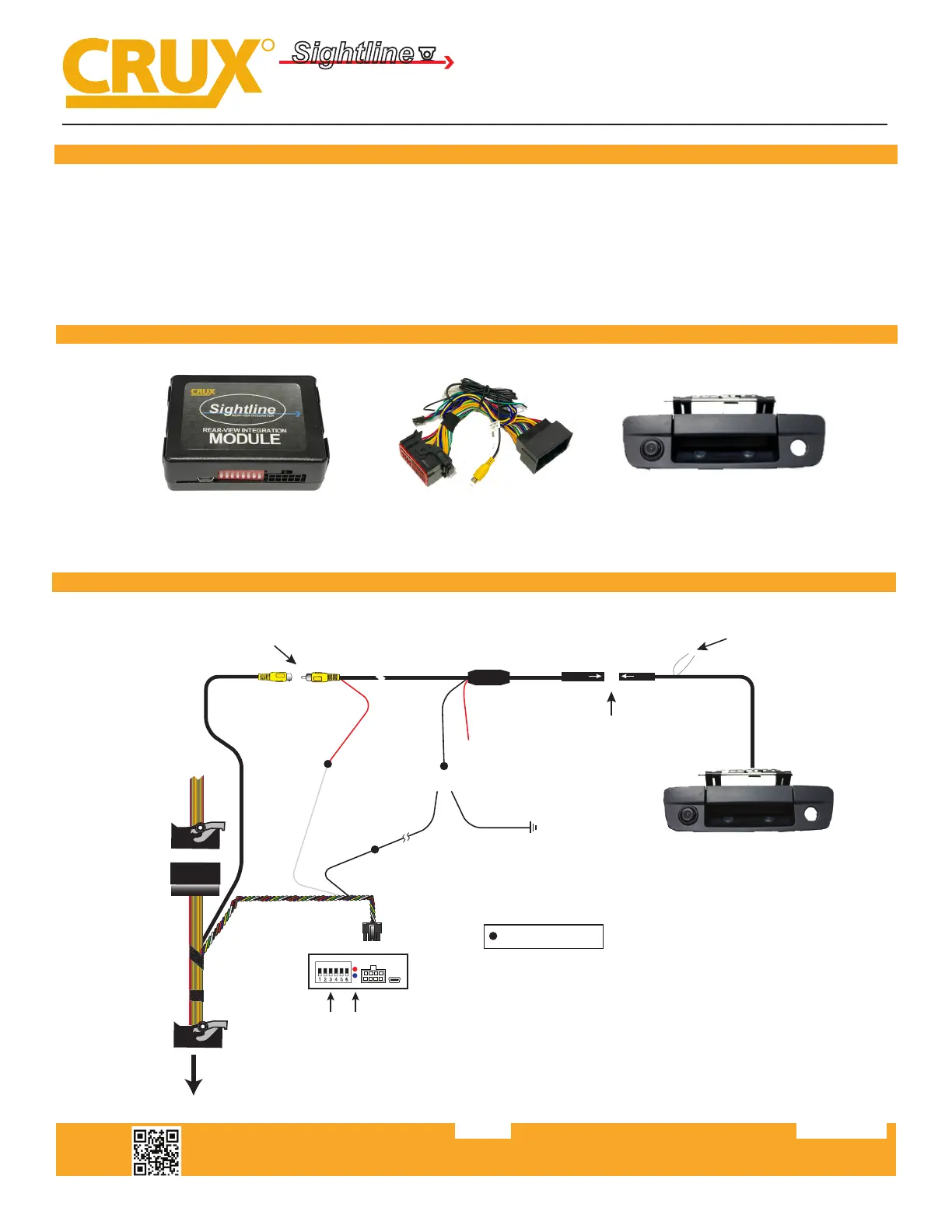

INSTALLATION DIAGRAM:
WHITE Wire
Parking Guideline
To Radio
OEM Radio
Harness
DP
ON
DIP
SWITCH
LED*
*LED RED = Power ON Status
LED BLUE = Data Bus ON Status
RVC Video
Signal Input
RED Wire
Push in Connectors
all the way
Line up Arrows
Regulator
20 Ft. Coax Cable
RED Wire
Tape O
(Not Used)
BLACK
Wire
BLACK
(Ground)
8-Pin Molex
Represents Solder Joint
Connect RCAs and secure
with tape all around
WHITE Wire
(Camera Power Output
+12V 250mA)
OR*
*Connect BLACK (ground) wire to chassis ground.
If video noise is present, we recommend connecting the
ground wire to the BLACK ground wire on the RVCCH-75DC harness.
Chassis Ground
