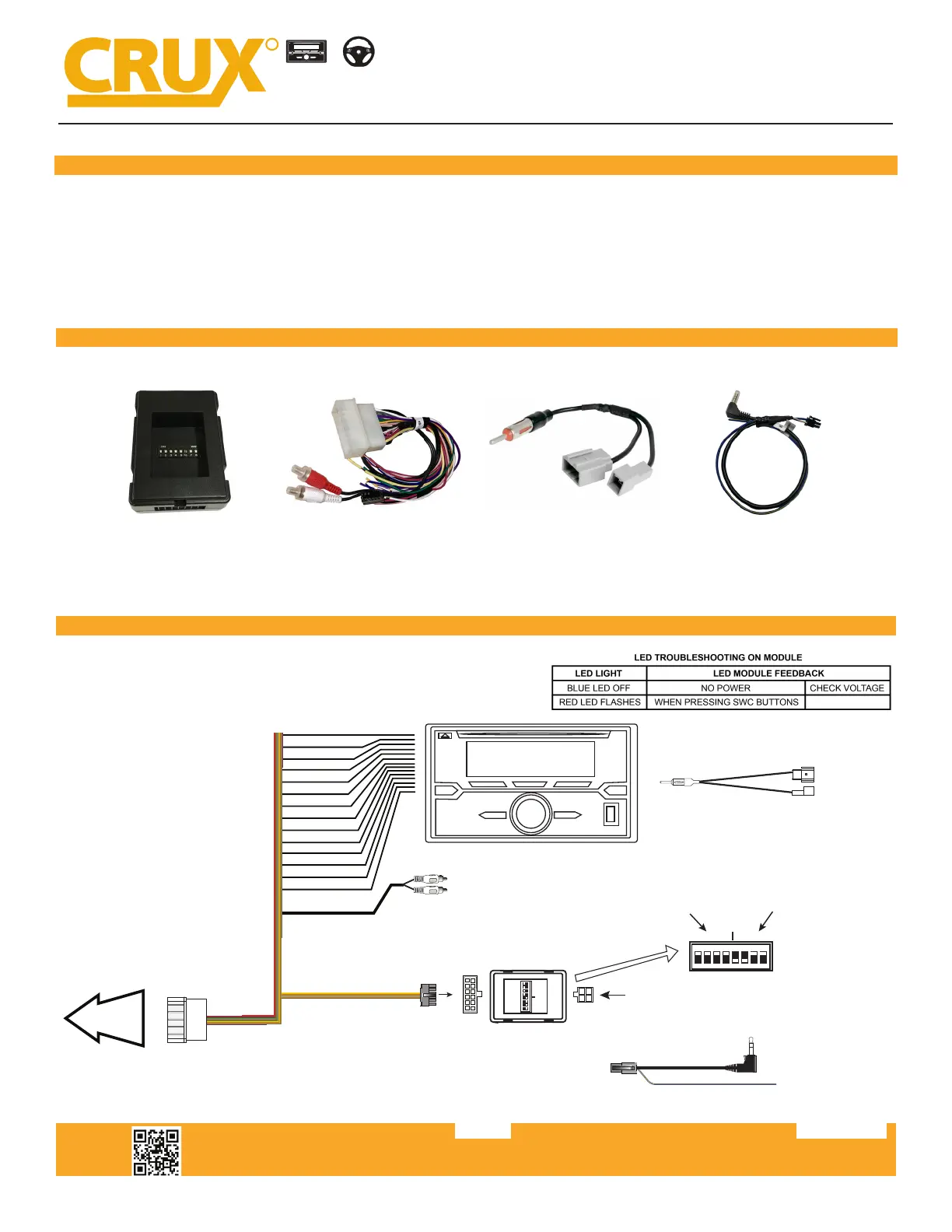

SWRHK-65P

Radio Replacement with Steering Wheel Retention for

HYUNDAI and KIA Vehicles with 24 Pin Connector

1 of 2

RADIO REPLACEMENT

SWC RETENTION

+

R

INTERFACING SOLUTIONS

-Retains factory features in select Hyundai and Kia vehicles while functioning with an aftermarket radio.

-Retains factory 3.5mm Aux Input Jack (if equipped).

-Pre-programmed to retain factory Steering Wheel Controls.

-Includes Hyundai/Kia antenna adapter.

-EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

SWRHK-65P MODULESWRHK-65P HARNESSANTENNA ADAPTERSWC CABLE

24-PIN

Connector

AFTERMARKET

RADIO

SWC

MODULE

illumination (+)Orange

Vehicle Speed Sensor Red/White

Antenna Turn ONBlue

+12V ConstantYellow

+12V ACCRed

GroundBlack

Right Front (+)Gray

Right Front (-) Gray/Black

Left Front (+)White

Left Front (-) White/Black

Right Rear (+)Violet

Right Rear (-) Violet/Black

Left Rear (+)Green

Left Rear (-) Green/Black

Audio Signal from 3.5mm Jack Aux-InRed & White RCA

TO FACTORY

HARNESS

12-Pin Black

Connector

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

Note:

Output signal(s) stated above may not cover all Year/Model.

HYUNDAI/KIA ANTENNA

ADAPTOR (Included)

AFTERMARKET

RADIO SELECTOR

(See Chart)

HYUNDAI / KIA TYPE

SWC SETTING

(OFF OFF ON ON)

ON RADIOVEHICLE

1 2 3 4 5 6 7 8

ON RADIOVEHICLE

1 2 3 4 5 6 7 8

4-Pin

Connector

Insulate with tape

if not used

Kenwood / JVC
