Articulating Sleek Desk Mount Arm
w/ Security Enclosure
PAD-ADMAEW
INSTALLATION - MANUAL
3. Base clamp security setup :
x4
E
M5 x 12
x
4
F
M5 Nut
x4
C
Acrylic Security
Enclosure
x1
B
x4
D
K
x2
Security
Star Key
J
M5 Allen
Key
x1
1. Base mount installation :2. Arms & base clamp adjustments :

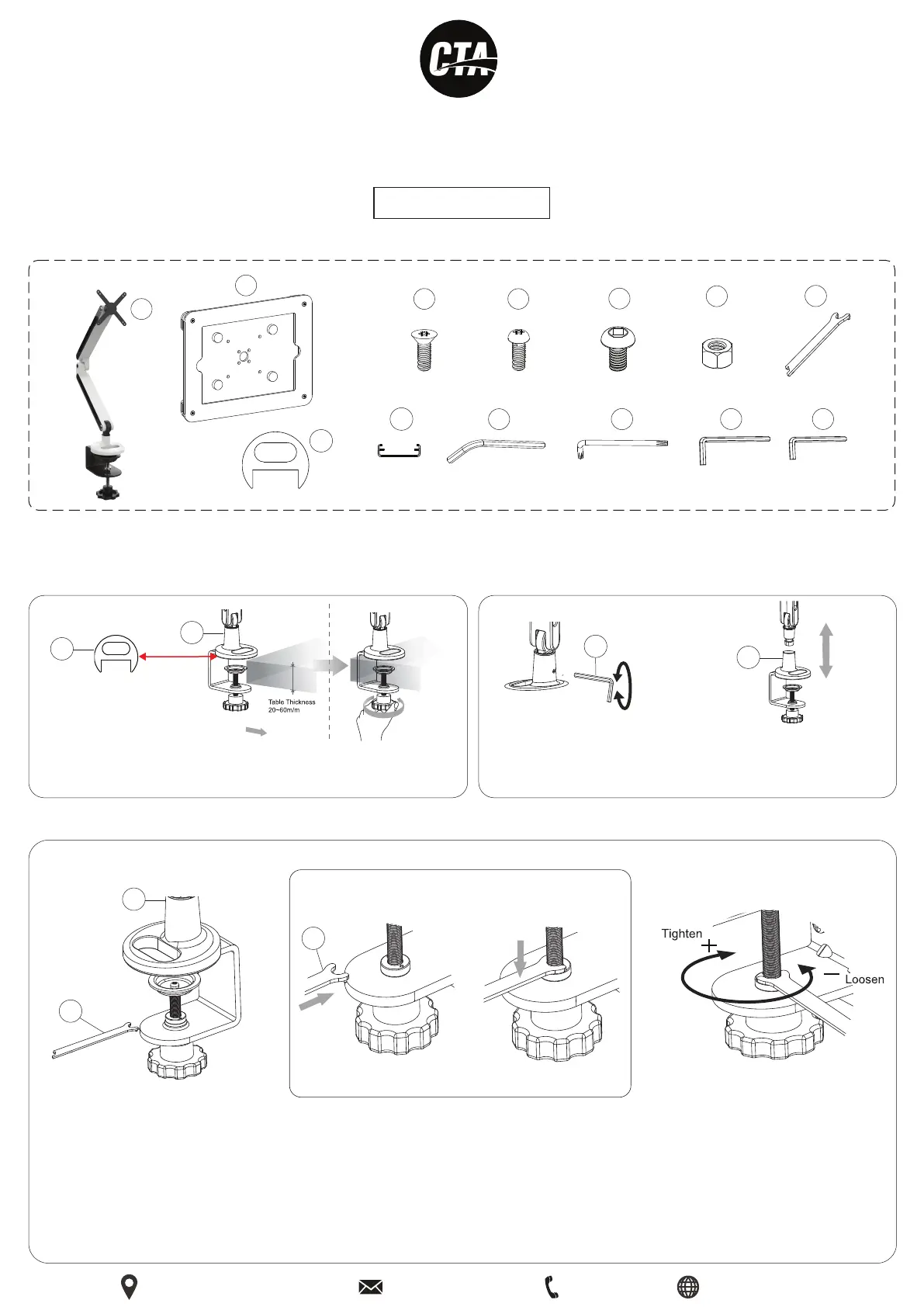

CONTENTS :
INSTALLATION:
x1
A
x1
G
I
x2
H
x1
L
x1
M
x1
1A. Find the included base
pad (H) and peel off the
backing. Align to the
underneath of the C-Clamp
(A) and apply pad.
1B. While the clamp is in unlocked mode, rotate
the knob at the bottom (as shown above) to
loosen or securely tighten to the table top.
H
A
2B. Remove arm (A) from the
base clamp mount. Repeat
steps in reverse order to
re-install connection.
2A. If you need to remove the arm
from the base clamp, take the
provided tool (M), rotate, and
loosen connection.
M
A
3A. When the C-Clamp (A) is securely
attached to a surface, use the provided
security tool (G), attach to security
component, and rotate closewise to put
the C-Clamp in an ‘locked’ state. To
loosen, rotate counterclockwise with
the security tool.
3B. Align the (2) dimples on the underneath of the
security tool (G) into the two holes on the security
component on the clamp as shown above
3C. Rotate security tool (G)
counter-clockwise to loosen and
place the clamp in an ‘unlocked’
state. Continue rotating until there is
enough slack to rotate the knob.Turn
it clockwise to tighten and place the
clamp in a ‘locked’ state.
Aligning Security tool with security component
A
G
G
(718) 963-9845 www.ctadigital.comsuppo@ctadigital.com36 Taaffe Place Brooklyn, NY 11205
