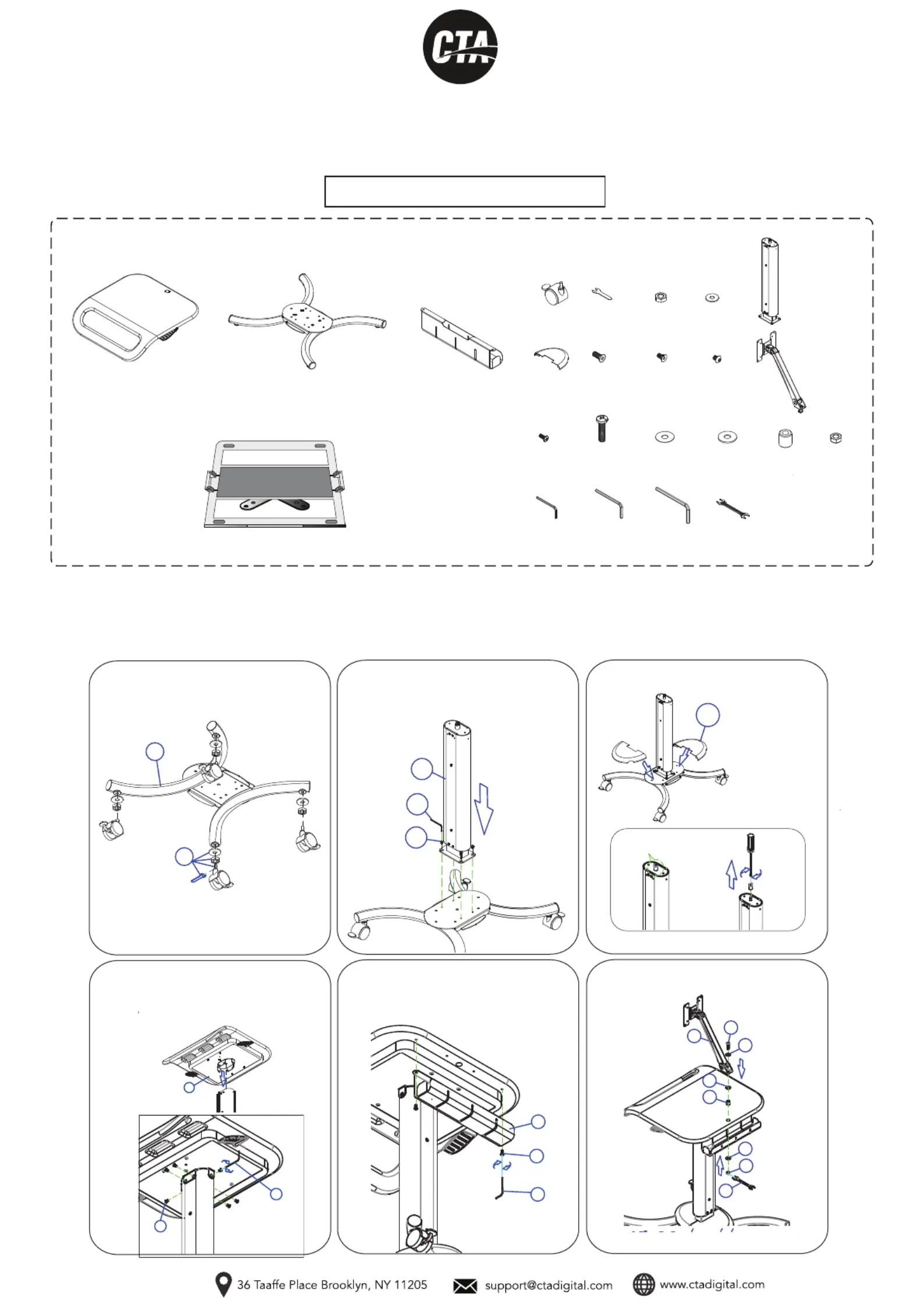

QPAD-HRSWLT

INSTRUCTION - MANUAL

Height-Adjustable Rolling Workstation Cart

with Laptop Holder

PACKAGE CONTENTS:

INSTRUCTIONS:

A.1pc

E.1pc

C.1pc

F.2pcs

H.6pcs

I.2pcs

G.4pcs

J.1pc

K.4pcs

L.1pc

M.2pcs

O.1pc

P.1pc

T.1pc

N.1pc

Q.1pc

M3 wrench

R.1pc

M4 wrench

S.2pcs

M6 wrench

B.1pc

D2.1pc

D1.4pcs

D3.4pcs

D4.4pcs

M6x12

M5x8

M5x6

M4x10

3/8" washer

M8 Copper washer

M8 washer

M8x35

Open spanner

1. Insert and tighten the wheels

2. Line up and screw in the body

5. Insert and tighten screws

6. Screw in accessories holder

4. Line up tray with body

Insert (6) flat screws

first, then lock each

screw tightly.

**If necessary, please add nuts and washers

to level the base

3. Attach Base Cover

7. Install arm, screws, washers and

accessories as shown

A. Setting up the Floor Stand

B. Attaching Holder to VESA

Rotate screws through VESA from

above as shown while holding hex nuts

from behind with hand until securely

tightened.

**Press lever to adjust height

**Detatch the cable tray cover. Align cable to device and along the neck down to

power surge. Replace the cable tray cover as shown.

**Using provided tool, loosen joint as

shown to adjust arm. Rotate opposite

direction to to tighten once arm is

adjusted to preferred position.

C. Adjusting Floor Stand Height

D. How to Cable Route

E. Adjusting Table Arm

F. Inserting Laptop

**Sliding open the arms of the plate,

place the laptop in position then release

the holders to grip the laptop in place

**Once laptop holder is connected to the

VESA, you will be able to turn portrait or

landscape for preferred orientation as

well as tilting for preferred angle

Produktspecifikationer

Varumärke:	CTA Digital
Kategori:	Platt panelstöd
Modell:	QPAD-HRSWLT
Vikt:	19504.47 g
Bredd:	558.8 mm
Djup:	482.6 mm
Höjd:	1320.8 mm
Modell:	Multimediavagn
Rekommenderad användning:	Bärbar dator
Låsbara hjul:	Ja
Antal hjul:	4 hjul
Produktens färg:	Vit
Höjdjustering:	279.4 mm
Fackstorlek (L * B * H):	307.98 x 219.08 x 50.8 mm
Bredd, sängstomme:	558.8 mm
Djup vid basen:	508 mm
