Sida 1/50
K01-0001023-00 EN

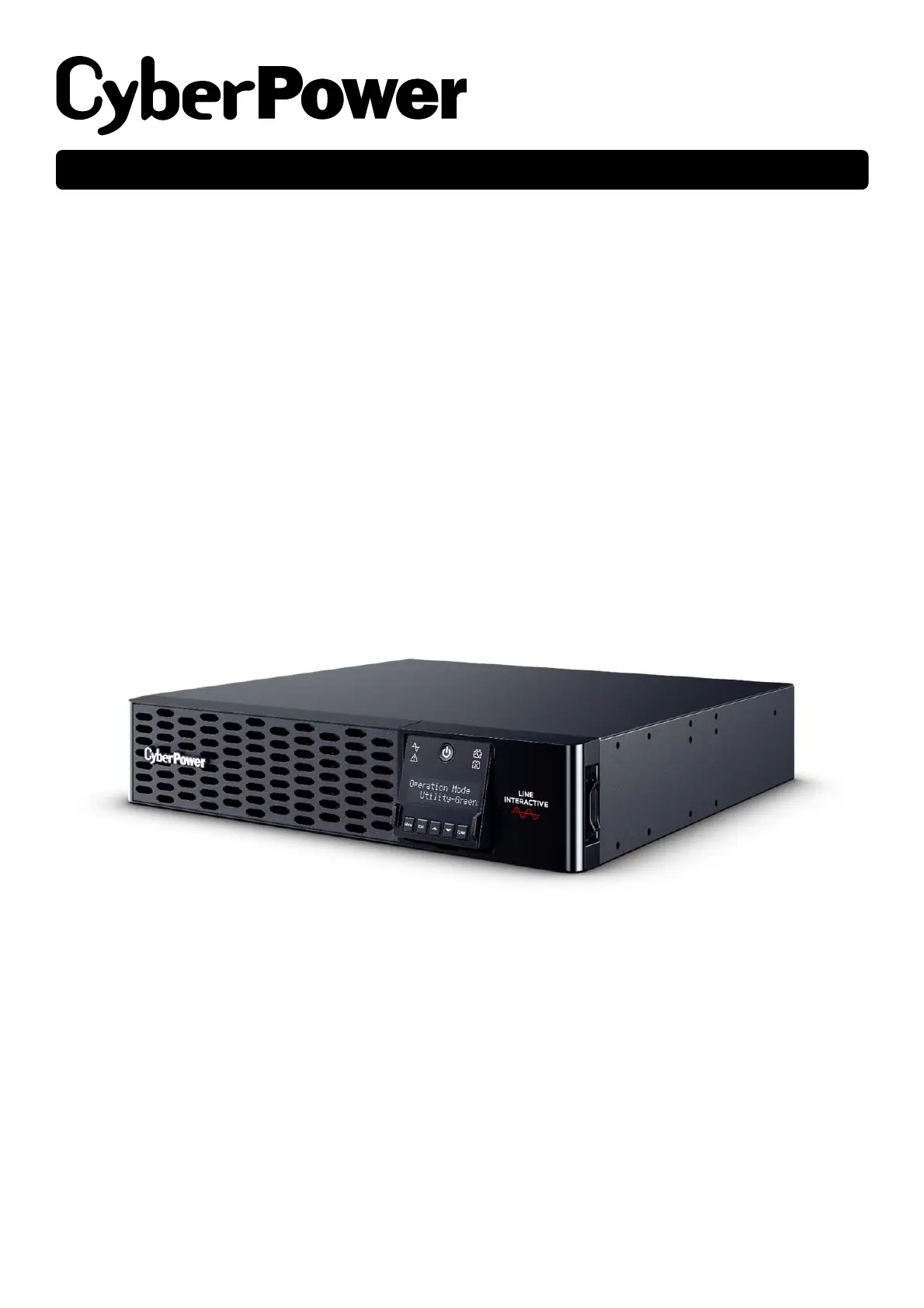

SMART APP SINEWAVE UPS SERIES – PROFESSIONAL RACKMOUNT SERIES
PR750ERT2UC PR750ERTXL2UC
PR1000ERT2UC PR1000ERTXL2UC
PR1500ERT2UC PR1500ERTXL2UC
PR2000ERT2UC PR2000ERTXL2UC
PR2200ERT2UC PR2200ERTXL2UC
PR3000ERT2UC PR3000ERTXL2UC
USER’S MANUAL
1
Thank you for purchasing the CyberPower Smart App Sinewave PR750ERT2UC/ PR1000ERT2UC/ PR1500ERT2UC/
PR2000ERT2UC/ PR2200ERT2UC/ PR3000ERT2UC/ PR750ERTXL2UC/ PR1000ERTXL2UC/ PR1500ERTXL2UC/
PR2000ERTXL2UC/ PR2200ERTXL2UC/ PR3000ERTXL2UC Uninterruptible Power Supply!
The product features 2430 Joules of surge protection, provides battery backup during power outages and is Active
PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that
require seamless sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a
consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. This
UPS is GreenPower UPS™ Bypass circuitry patented to save on energy costs by reducing energy consumption and heat
buildup.
The UPS unit incorporates microprocessor-based full digital control and includes PowerPanel Business software
providing the user unsurpassed flexibility and control. An optional SNMP/HTTP Remote Management adapter
(RMCARD) supports remote management and control of the machine through a standard web browser.
System Block Diagram
CyberPower GreenPower UPS
TM
Technology
CyberPower’s patented GreenPower UPS
TM
with Bypass Technology are ENERGY STAR®
complainant ensuring lower power consumption and energy costs compared to conventional UPS
models. Even when utility power is normal, conventional UPS models constantly pass power
through a transformer. By contrast, under normal conditions the advanced circuitry of a
GreenPower UPS
TM
bypasses the transformer. As a result, the power efficiency is significantly
increased while decreasing waste heat, using less energy, and reducing energy costs.
When an abnormal power condition occurs, the GreenPower UPS
TM
automatically runs power
through its transformer to regulate voltage and provide “safe” power. Since utility power is normal
over 88% of the time, the GreenPower UPS
TM
operates primarily in its efficient bypass mode.
The GreenPower UPS
TM
is also manufactured in accordance with the Restriction on Hazardous Substances (RoHS)
directive making it one of the most environmentally-friendly on the market today.
Input
EMI
Filter
Surge
Suppressor
AVR
Charger
AC/DC
Inverter
Output
Battery
Normal Mode
Battery Mode
INTRODUCTIONS
AUTOMATIC VOLTAGE REGULATOR (AVR)
The incoming utility power may be damaging to important data and hardware, but with Automatic Voltage Regulation, the
computer will not experience damaging voltage levels. The AVR automatically increases low or decreases high voltage to a safe
and consistent output voltage.
2
This manual contains important instructions that should be followed during installation and maintenance of the UPS
and batteries. Please read and follow all instructions thoroughly before and during the installation and operation of the
product.
CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker protection. DO
NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug
the UPS.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free
of conductive contaminants. Please see specifications for acceptable temperature and humidity range.
CAUTION! For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily
accessible.
CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery. There are no
serviceable parts inside, except for the battery.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source and disconnect external
battery connector before servicing the battery.
CAUTION! When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected
equipment does not exceed 3.5mA.
CAUTION! Do not unplug the unit from AC Power during operation, as this will invalidate the protective ground
insulation.
CAUTION! To reduce the risk of fire, connect the UPS to a circuit with maximum rated 20 amperes and short-circuit
current minimum rated 1000 amperes over-current protection in accordance to CE requirement.
CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit
overcurrent protection in accordance with the National Electric Code, ANSI/NFPA 70.
CAUTION! Please use only VDE-tested, CE-marked mains cable, (e.g. the mains cable of your equipment), to connect
the UPS to the AC outlet.
CAUTION! Please use only VDE-tested, CE-marked power cables to connect any equipment to the UPS.
CAUTION! For detachable input power cord with NEMA plug, use UL Listed detachable power supply cord – Min. No.
18 AWG, 3 conductors, flexible cord, rated min. 10A, VW-1, min. 80°C, min. 1.5m, maximum 4.5m long. Provided with a
molded-on, polarized attachment plug with a 15A, 250V (NEMA 6-15P) configuration and a molded-on connector
which mates with the Power Inlet. The following cord type may be used: SV, SVE, SVO, SVOO, SP-2, SPE-2, SPT-2,
NISP-2, NISPE-2, NISPT-2, SP-3, SPE-3, SPT-3, SJ, SJE, SJO, SJOO, SJT, SJTO, SJTOO, S, SE, SO, SOO, ST, STO, STOO.
(PR750ERT2UC/ PR1000ERT2UC/ PR1500ERT2UC/ PR2000ERT2UC/ PR750ERTXL2UC/ PR1000ERTXL2UC/
PR1500ERTXL2UC/ PR2000ERTXL2UC)
CAUTION! For detachable input power cord with NEMA plug, Use UL Listed detachable power supply cord – Min. No.
16 AWG, 3 conductors, flexible cord, rated min. 16A, VW-1, min. 80°C, min. 1.5m, maximum 4.5m long. Provided with a
molded-on, polarized attachment plug with a 20A, 250V (NEMA 6-20P) configuration and a molded-on connector
which mates with the Power Inlet. The following cord type may be used: SV, SVE, SVO, SVOO, SP-2, SPE-2, SPT-2,
NISP-2, NISPE-2, NISPT-2, SP-3, SPE-3, SPT-3, SJ, SJE, SJO, SJOO, SJT, SJTO, SJTOO, S, SE, SO, SOO, ST, STO, STOO.
(PR2200ERT2UC/ PR2200ERTXL2UC)
CAUTION! For detachable input power cord with NEMA plug, Use UL Listed detachable power supply cord – Min. No.
14 AWG, 3 conductors, flexible cord, rated min. 16A, VW-1, min. 80°C, min. 1.5m, maximum 4.5m long. Provided with a
molded-on, polarized attachment plug with a 20A, 250V (NEMA 6-20P) configuration and a molded-on connector
which mates with the Power Inlet. The following cord type may be used: SV, SVE, SVO, SVOO, SP-2, SPE-2, SPT-2,
NISP-2, NISPE-2, NISPT-2, SP-3, SPE-3, SPT-3, SJ, SJE, SJO, SJOO, SJT, SJTO, SJTOO, S, SE, SO, SOO, ST, STO, STOO.
(PR3000ERT2UC/ PR3000ERTXL2UC)
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! DO NOT use in any circumstance that would
affect operation or safety of any life support equipment, with any medical applications, or patient care.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near aquariums.
Condensation from the aquarium can come in contact with metal electrical contacts and cause the machine to short
out.
IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS)
