Sida 1/6

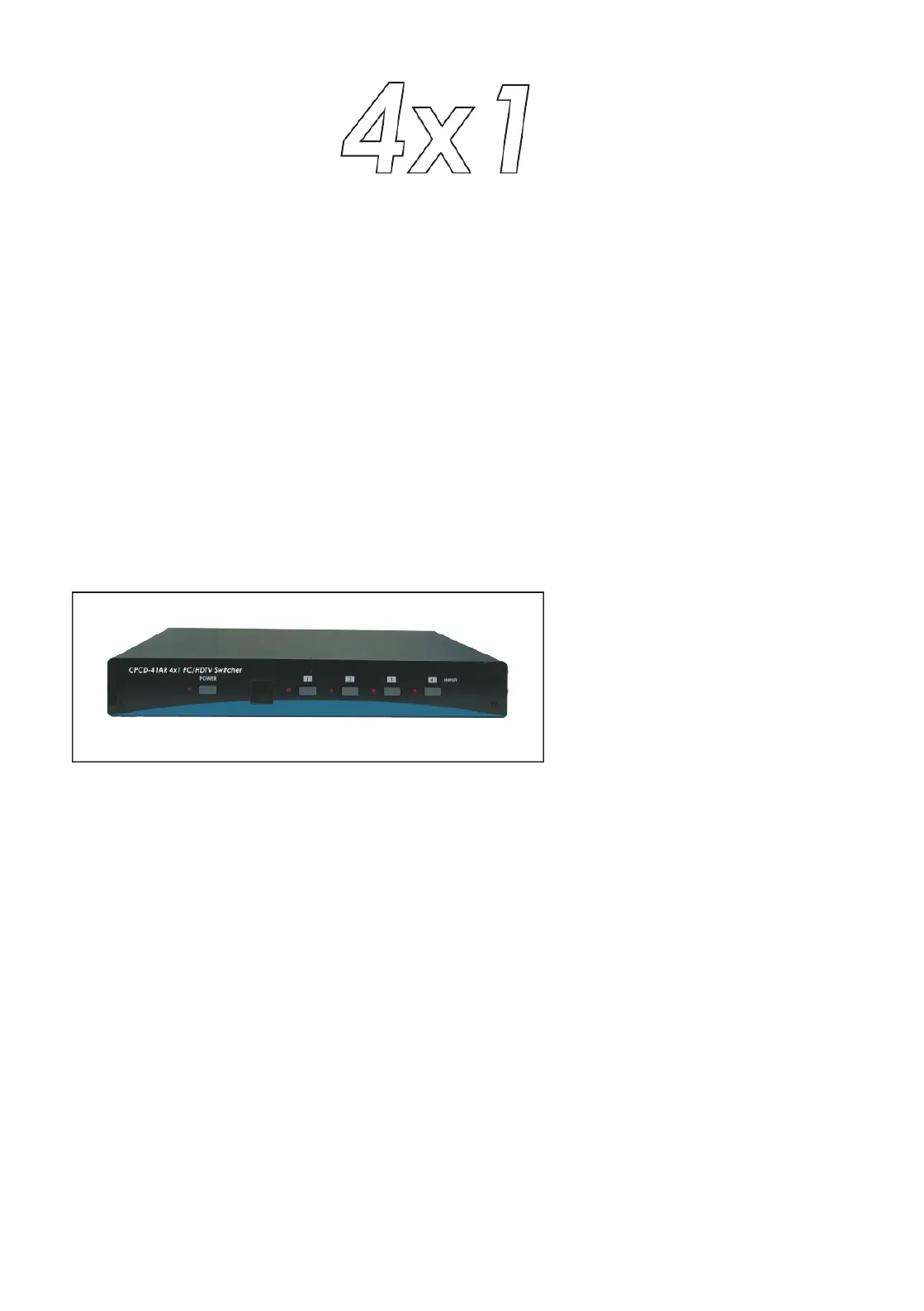

PC/HDTV Switcher

Operation Manual

4x1

CPCD-41AR

Applications:

Cypress CPCD-41AR PC/HDTV is perfect solution for

switching between various PC/HDTV sources such as PCs, DVD...

to share one display monitor, TV or projector with resolution up

to WUXGA/1080p.

Features:

- LED indicators

- IR remote control.

- Supports high resolution input:

PC:

VGA, SVGA, XGA, SXGA,UXGA(1600x 1200) and WUXGA(1920x1200),&

HDTV: 480i, 576i, 480p, 576p, 720p. 1080i and 1080p.

- Bandwidth: 650 MHz.

- Plug and play, easy to install and operate.

- Built-in advance circuit ensures a smooth transition when

switching from one PC/HD source into another.

- RS-232 interface allows control from a distant device.

- Ideal for presentation and large shop intergration.

- Audio format: L/R analog.

Package includes:

- CPCD-41AR unit.

- IR remote control

- 5VDC power supply, center +

- User manual

- A 3V lithium battery

- One set of 3.5mm phone jack to 2R audio cable.

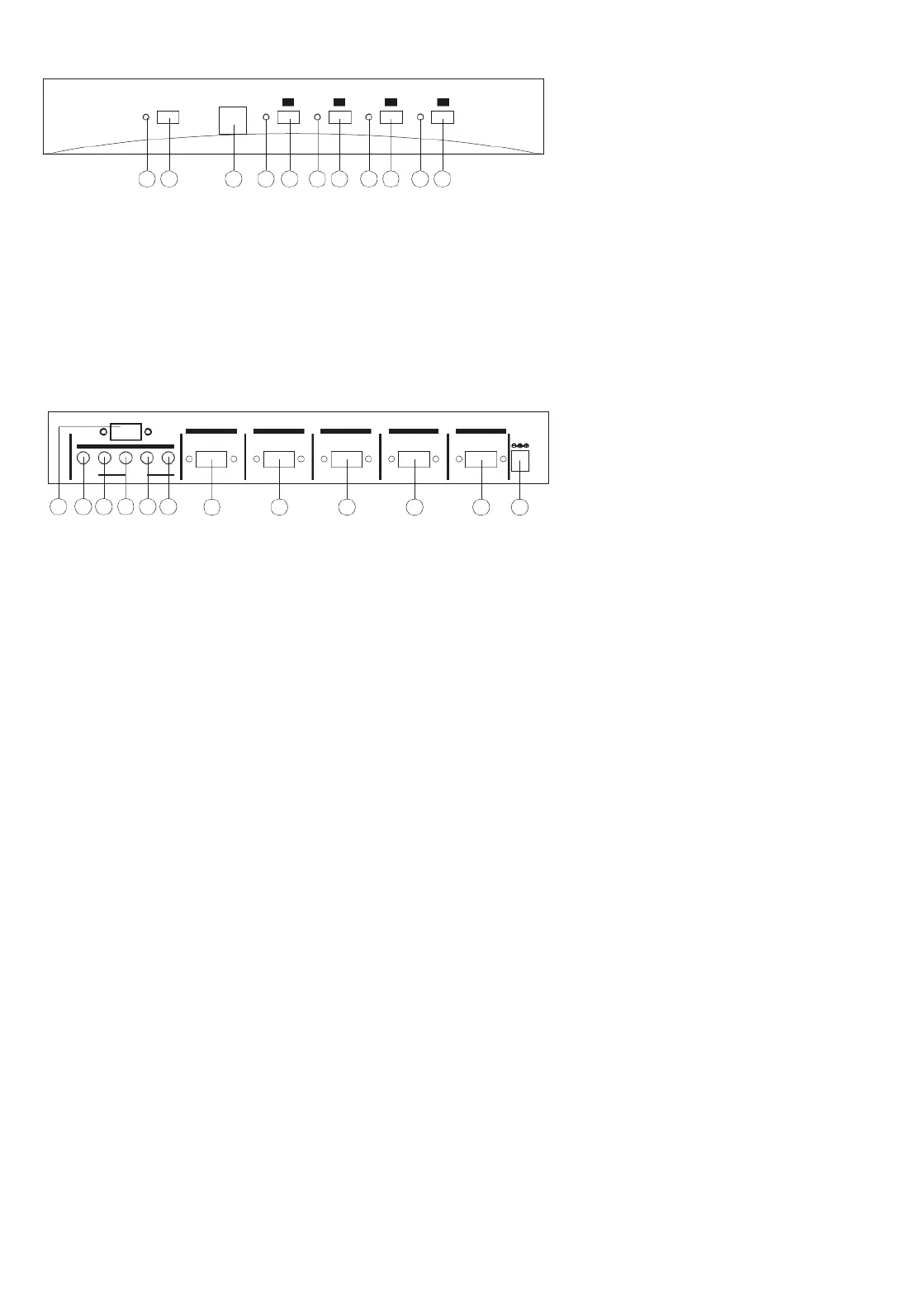

Operation Controls and Functions

Front Panel

1 2 3

4 5 6 7

8 9

10 11

1. Power indicator LED.

2. Power ON/OFF switch: Push the button to turn ON/OFF the power.

3. IR sensor: Infrared remote control sensor.

4. Input 1 indicator LED .

5. Input 1 switch: Push the button, LED lights up, source 1 is selected.

6. Input 2 indicator LED.

7. Input 2 switch: Push the button, LED lights up, source 2 is selected.

8. Input 3 indicator LED .

9. Input 3 switch: Push the button, LED lights up, source 3 is selected.

10. Input 4 indicator LED.

11. Input 4 switch: Push the button, LED lights up, source 4 is selected.

Rear Panel

DC 5V

INPUT 1INPUT 2INPUT 3INPUT 4OUTPUT

AUDIO

PC 1/YPbPr 1PC 2/YPbPr 2PC 3/YPbPr 3PC 4/YPbPr 4PC/YPbPr

12345

INPUTOUTPUT

RS-232

POWER

1 2 3 4

INPUT

CPCD-41AR 4x1 PC/HDTV Switcher

456

101112

1. DC 5V: 5 Volt, 5W DC input , center +.

2. Input 1 connector: Input connector for PC 1/YPbPr 1.

3. Input 2 connector: Input connector for PC 2/YPbPr 2.

4. Input 3 connector: Input connector for PC 3/YPbPr 3.

5. Input 4 connector: Input connector for PC 4/YPbPr 4.

6. Output connector: Output connector for PC/YPbPr.

7. Audio input 1 connector: Audio input connector for

Audio (L+R) 1 via 3.5mm phone jack to 2R audio cable.

8. Audio Input 2 connector: Audio input connector for

Audio (L+R) 2 via 3.5mm phone jack to 2R audio cable.

9. Audio input 3 connector: Audio input connector for

Audio (L+ R) 3 via 3.5mm phone jack to 2R audio cable.

10. Audio input 4 connector: Audio input connector for

Audio (L+R) 4 via 3.5mm phone jack to 2R audio cable.

11. Audio output connector: Audio output connector for

Audio(L+R) via 3.5mm phone jack to 2R audio cable.

12. RS-232 interface: DB-9 female connector for connecting

to your other control console for remote control.

Produktspecifikationer

Varumärke:	CYP
Kategori:	Växla
Modell:	CPCD-41AR
Vikt:	1720 g
Bredd:	290 mm
Djup:	175 mm
Höjd:	50 mm
Ljudutgång:	3,5 mm
Uteffekt:	1 A
Ljudutgångskanaler:	- kanaler
Strömförsörjning ingår:	Ja
Utgångsspänning:	5 V
Ljudingång (vänster och höger):	4
Ljudanslutning:	3,5 mm
Audio ingångskanaler:	- kanaler
Antal ljudutgångar:	1
Antal ljudingångar:	4
