Sida 1/12

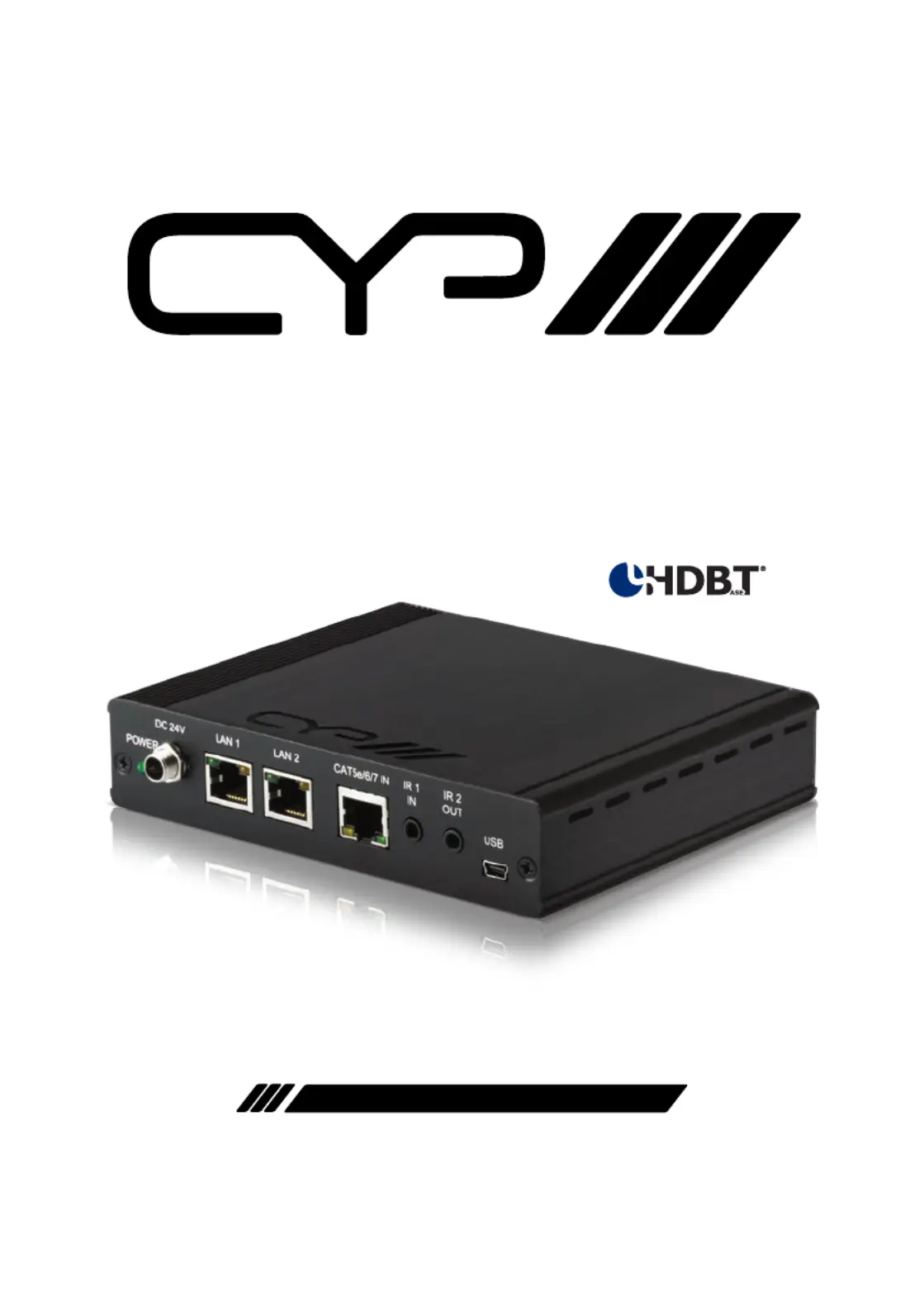

PU-515PLTX-1H
HDBaseT™ LITE Transmitter with simultaneous HDMI output
(HDMI, IR & RS-232 with POC, up to 60m)
OPERATION MANUAL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. SUMMARY OF CHANGEDATE DD/MM/YY
VR0 10/01/14 Preliminary Release
CONTENTS
1. Introduction 1 ............................................
2. Applications 1 ...........................................
3. Package Contents 1 ................................
4. System Requirements 1 ............................
5. Features 2 ..................................................
6. Operation Controls and Functions 3 .......
6.1 Front Panel 3 ........................................
6.2 Rear Panel 4 .........................................
6.3 IR Cable Pin Assignment..................5
6.4. D-Sub 9-Pin Defi nitions ....................5
7. Connection Diagram 6 ............................
8. Specifi cations ........................................ 7
8.1 CAT5e/6/7 Cable Specifi cation .....8
9. Acronyms 8 ...............................................

Produktspecifikationer

Varumärke: CYP
Kategori: AV extender
Modell: PU-515PLTX-1H
Vikt: 540 g
LED-indikatorer: Link, Power
Videolägen som stöds: 480i, 480p, 576p, 720p, 1080p
Maximal upplösning: 4096 x 2160 pixlar
Material: Metall
Grafikupplösningar som stöds: 4096 x 2160
Modell: Sändare för AV-utrustning
USB-anslutning: Mini-USB B
Ljudutgångskanaler: 7.1 kanaler
Bandbredd: 10.2 Gbit/s
RJ-45 utgångsportar: 1
Antal HDMI-utgångar: 1
Driftspänning: 24 V
HDBaseT-port: Ja
Kabeltyper som stöds: Cat5e, Cat6, Cat6a, Cat7
Produktens färg: Svart
Förpackningstyp: Låda
Vikt inkl. förpackning: 660 g
Strömförbrukning (vanlig): 6.3 W
Produktstorlek (BxDxH): 105 x 115 x 26 mm
Temperatur vid drift: 0 - 40 ° C
Temperaturintervall (förvaring): -20 - 60 ° C
Intervall för relativ operativ luftfuktighet: 20 - 90 %
Likströmsingång: Ja
Ström: 1.25 A
Maximal överföringshastighet avstånd: 60 m
Fjärrstyrd IR-utgång: 1
HDMI-in: 1
Fjärrstyrd (IR) ingång: 1
RS-232-ingångar: 1
