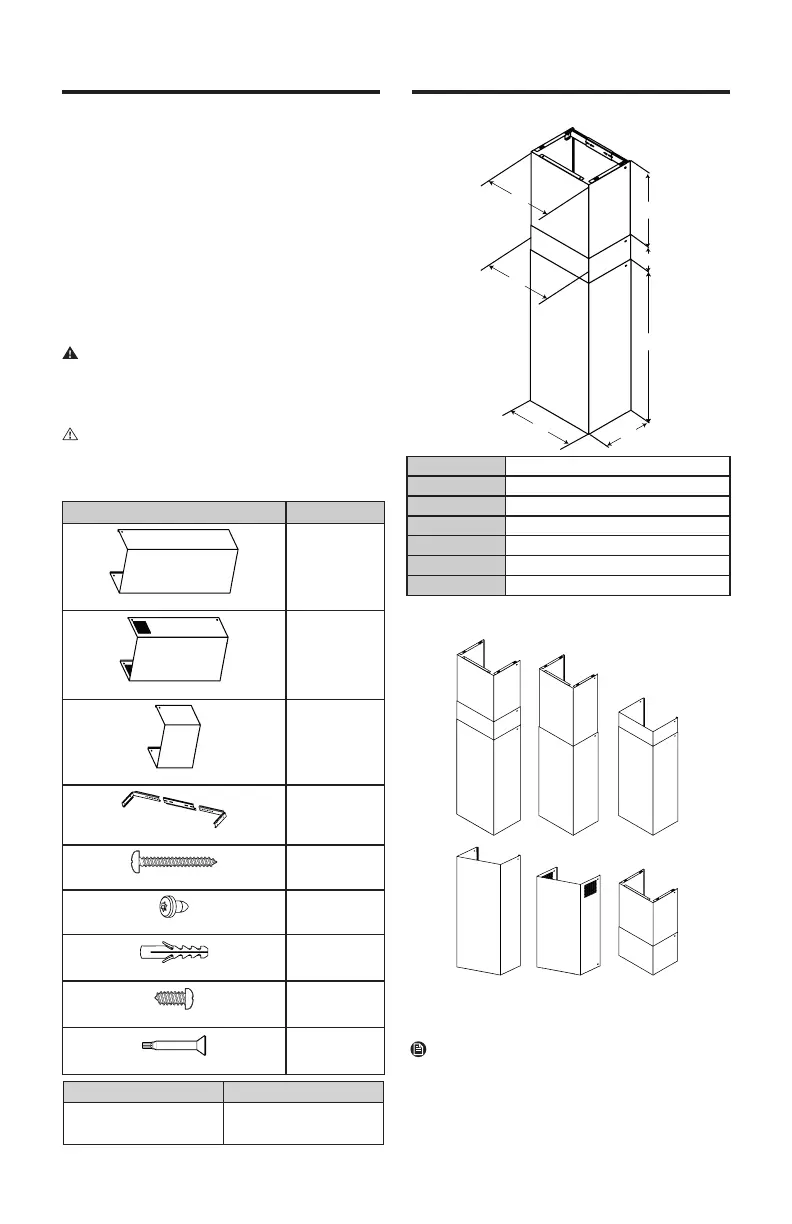

Sida 1/8
FOG0185263
Duct Cover Kit
Kit de Couverture de Conduit
Kit de Cubierta de Ducto
DHD-D0000CS/DA
DHD-D0000CM/DA
Installation Instructions
Instructions D’installation
Instrucciones de Instalación
Important Safety Instructions Installation
APPROVED FOR RESIDENTIAL APPLIANCES
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTALLATION GUIDE
BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL
CODES.
IMPORTANT:
INSTALLER:
OWNER:
Save these instructions for the local
electrical inspector’s use.
Please leave these Instructions with
this unit for the owner.
Please retain these instructions for
future reference.
WARNING
Turn off power circuit at service panel and lock out panel
before installing this kit to the appliance.
Installation must comply with all local codes.
CAUTION
Remove the carton carefully. Wear gloves to protect
against sharp edges.
Tools and Parts
Part Qty
Large Duct Cover
1
Medium Duct Cover
1
Small Duct Cover
1
Duct Cover bracket
1
5 x 45 mm
2
4.2 x 8 mm
8
8 x 40 mm
2
3.5 x 9.5 mm
2
Torx 20 adapter
1
DHD-D0000CS/DA DHD-D0000CM/DA
DHD30U990CS/DA
DHD36U990CS/DA
DHD48U990CS/DA
DHD30U990CM/DA
DHD36U990CM/DA
DHD48U990CM/DA
General Dimensions
A
B
C
D
E
G
F
A 11 ¹⁵/₁₆” (30.4 cm)
B 30” (76.2 cm)
C 36 ¹⁵/₁₆” (93.9 cm)
D 11 ¹⁵/₁₆” (30.4 cm)
E 16 ¹/₂” (42 cm)
F 16 ⁵/₁₆” (41.4 cm)
G 16 ⁷/₁₆” (41.7 cm)
Choose the duct cover conguration appropriate to the
ducting length.
Place the duct cover lying on a at surface and pull the
medium cover outwards, nally slide the small cover to
the outside too.
NOTE
When using large and small duct covers together,
assemble both pieces with 4 - 4.2 x 8 mm screws before
nxing to the bracket.
ENGLISH2
