Installation manual
Joint kit for the BS unit
English
Installation manual
Joint kit for the BS unit
EKBSJK
1 About the documentation
Installation manual
2
EKBSJK
Joint kit for the BS unit
4P686837-1 – 2022.02
WARNING
Improper installation or attachment of equipment or
accessories could result in electrical shock, short-circuit,
leaks, fire or other damage to the equipment. ONLY use
accessories, optional equipment and spare parts made or
approved by Daikin and have them installed by a
professional.
If unsure of installation procedures or use, always contact
your Daikin dealer for advice and information.
1 About the documentation
The instructions delivered with the kit are intended to guide you
through the installation of the joint kit. Damage caused by non-
observance of these instructions are not under the responsibility of
Daikin.
The original documentation is written in English. All other languages
are translations.
Read this installation manual prior to use and keep it for future
reference.
See also the installation manual of the BS unit (branch selector unit).

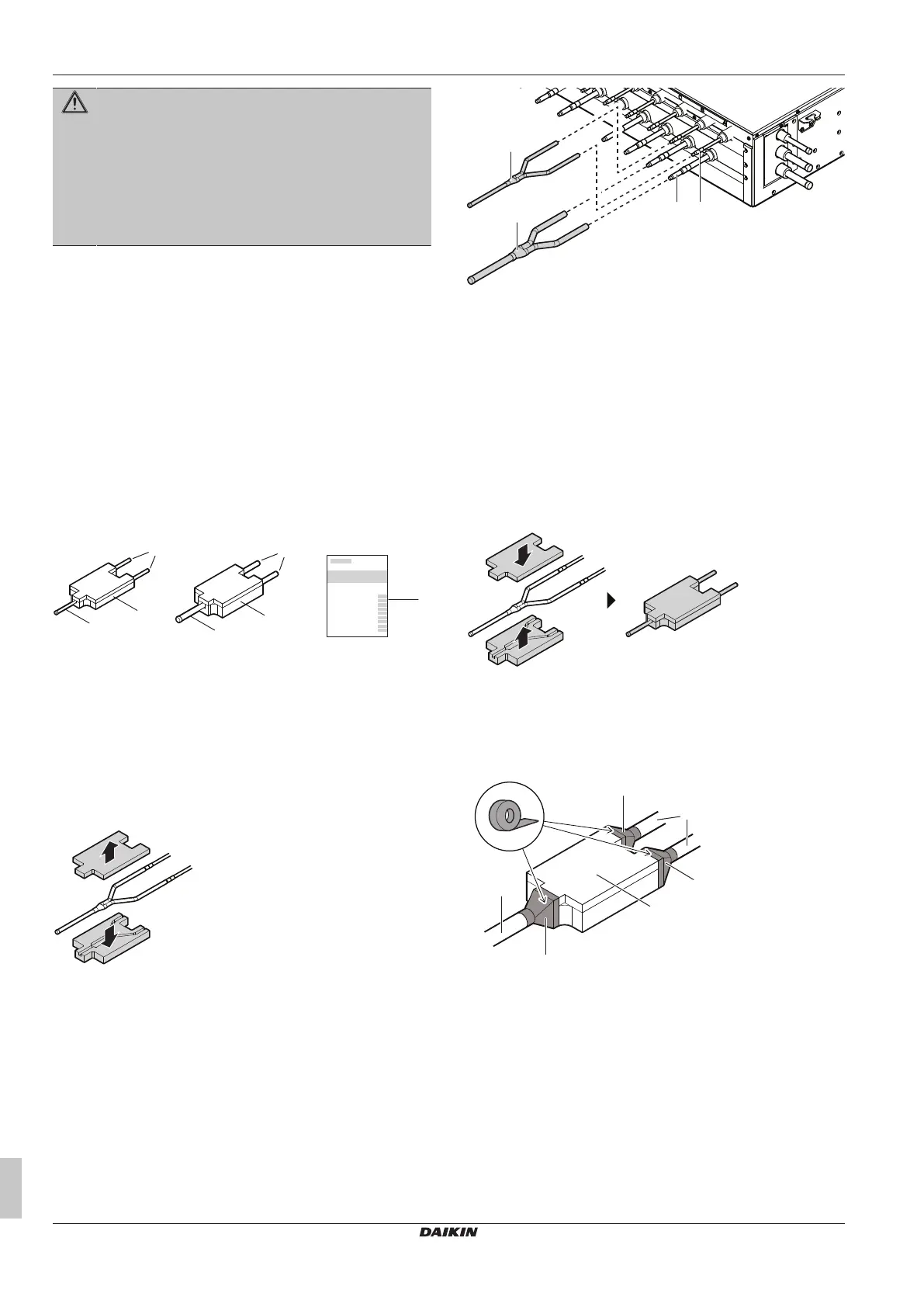

2 Contents of the kit
a2
c
a1
b1
a
b
b2
a Liquid pipe branch assembly (1×)
a1 Ø9.5mm (3/8inch)
a2 Ø9.5mm (3/8inch)
b Gas pipe branch assembly (1×)
b1 Ø15.9mm (5/8inch)
b2 Ø19.1mm (6/8inch)
c Installation manual (1×)
3 To install the joint kit
1 Open the sealings and remove the branches.
2 Install the branches to the BS unit and the field piping.
▪ Connect the branches to the BS unit and the field piping.
c b
a
e
d
a BS unit
b Liquid pipes
c Gas pipes
d Gas pipe branch
e Liquid pipe branch
▪ Fill the pipes with nitrogen gas to avoid copper corrosion
during brazing.
▪ Braze the connections. Cool the copper tubes during brazing
with a wet rag.
3 Install the sealings.
▪ Remove the adhesive release paper from the sealing.
▪ Install the sealing around the correct branch. As the
diameter of the copper tubes differ for each branch, make
sure to use the correct sealing set for each branch.
▪ Push both sealing sides firmly together.
▪ Repeat for the other sealing.
4 Insulate the connections of both branch assemblies with the BS
unit and the field piping and seal off with insulation tape.
b
a
b
c
b
d
a Field side insulation
b Insulation tape
c Branch assembly
d BS unit side insulation
5 Apply the field settings for the BS unit. See the BS unit's
installation manual for more information.
