EKBSVQLNP
Noise insulation kit
4PW38434-1A
Instruction manual
1
I
NTRODUCTION

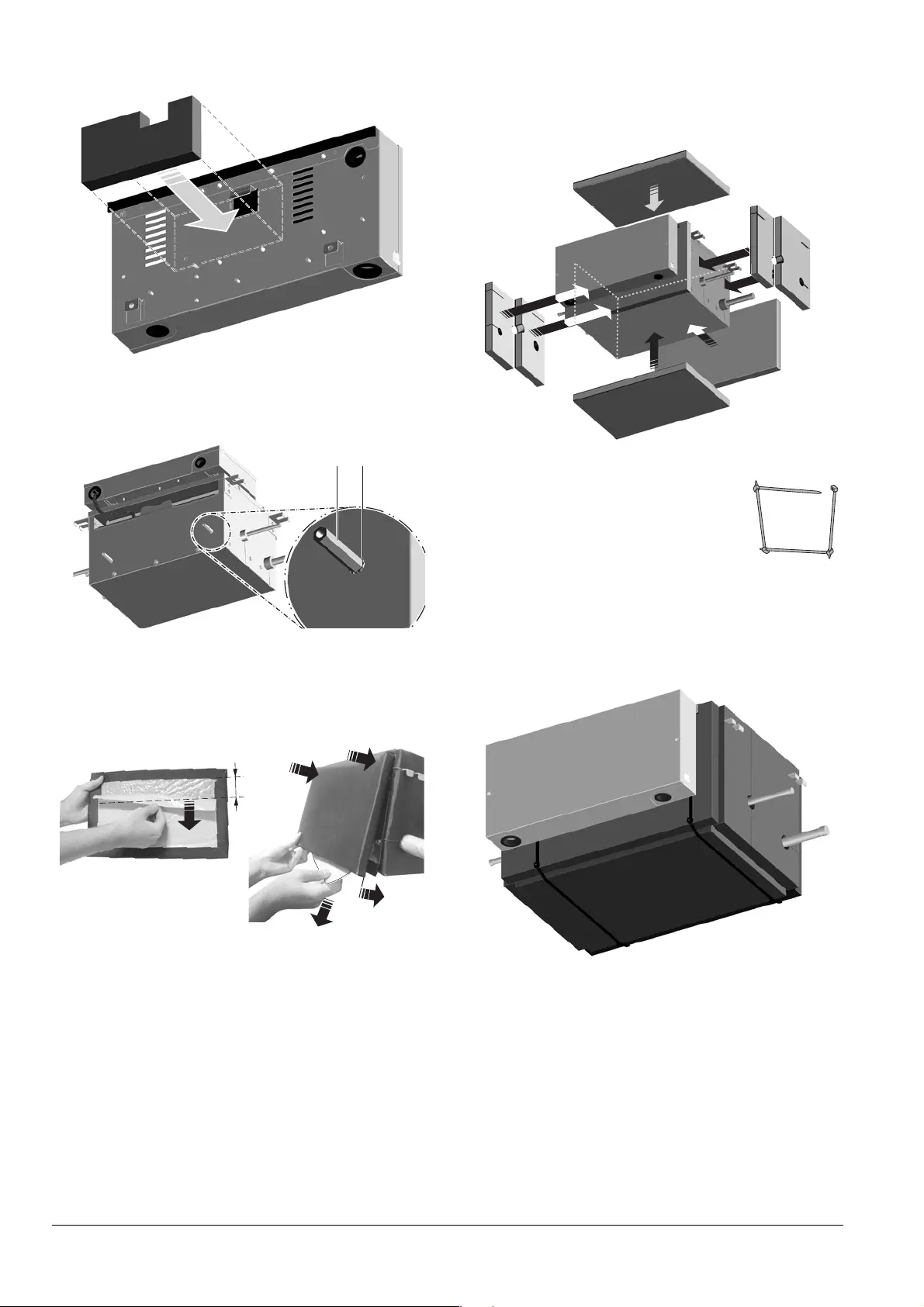

This kit includes all necessary parts and instructions for building the
noise insulation on and around your branch selector box.
C
ONVENTION
Further in this instruction "branch selector box" will consistently be
referred to as BSB and "branch selector box switch box" will be
referred to as SB.
C
ONTENT
OF
THE
KIT
N
ECESSARY
TOOLS
FOR
PROCESSING
I
NSTALLATION
PROCEDURE
2
Remove the SB service cover (1) by unscrewing the 2 screws
(XX) as indicated in
picture 1
. Keep the 2 screws for later re-
installation.
3
Refer to
picture 2
for visualizing how to first unscrew the 2
screws (XX) fixing the SB to the BSB. Lift the SB vertically
upward for about 15 mm (1) until you can unhook it away from
the BSB (2).
Let the SB hang with great
care as indicated in
picture 3
.
Better solution of course is in
case cables power supply,
wiring to indoor and outdoor
units, and cool/heat selector
are long enough and you have
the service space, is to put the
SB as indicated in
picture 5
on top of the BSB top plate.
Keep the 2 screws for later re-
installation.
EKBSVQLNP
Noise insulation kit
Instruction manual
A
Insulation to stick in between the BSB and the SB
B
Left hand side insulation to stick on the 2-pipe side of the BSB
C
Right hand side insulation to stick on the 2-pipe side of the BSB
D
Left hand side insulation to stick on the 3-pipe side of the BSB
E
Right hand side insulation to stick on the 3-pipe side of the BSB
F
Insulation to stick on the top plate of the BSB
G
Insulation to stick on the bottom plate of the BSB
H
Insulation to stick on the rear plate of the BSB
J
Smaller insulation to stick on the back of the SB
K
2 x Spacer for distancing SB away from the BSB
L
2 x Lock washer to secure the spacers
M
8 x Tie-wrap to make 2 straps for securing the insulations
KL
AB
C
FG
DE
J M
H
1
Make sure to switch off power supply to the complete
system before starting this procedure. Installation of
the kit must be executed by a licensed refrigeration
technician.
X
X
1
Picture 1
X
±15 mm
1
1
2
X
1
2
Picture 2
Picture 3
