Operation manual

Split system air conditioners English

Operation manual

Split system air conditioners

FNA25A2VEB

FNA35A2VEB

FNA50A2VEB

FNA60A2VEB

FNA25A2VEB9

FNA35A2VEB9

FNA50A2VEB9

FNA60A2VEB9

Table of Contents

Operation manual

FNA25~60A2VEB(9)

Split system air conditioners

4P456953-1B – 2018.08

Table of Contents

1 About this document 2

2 About the system 2

2.1 Components .............................................................................. 2

2.2 Information related to units using R32 refrigerant ..................... 3

3 Operation 3

3.1 Operation range ........................................................................ 3

4 Energy saving and optimum operation 4

5 Maintenance and service 4

5.1 Overview: Maintenance and service ......................................... 4

5.2 To clean the drain pan............................................................... 5

5.3 Cleaning the air filter, suction grille, air outlet and outside

panels ....................................................................................... 5

5.3.1 To clean the air outlet and outside panels .................. 5

5.3.2 To clean the air filter ................................................... 5

6 Troubleshooting 6

6.1 Symptoms that are NOT system malfunctions .......................... 7

6.1.1 Symptom: The system does not operate .................... 7

6.1.2 Symptom: White mist comes out of a unit (Indoor

unit) ............................................................................. 7

6.1.3 Symptom: Dust comes out of the unit......................... 7

6.1.4 Symptom: The units can give off odours..................... 7

6.1.5 Symptom: The operation stopped suddenly

(Operation lamp is on) ................................................ 7

6.1.6 Symptom: The outdoor fan rotates while the air

conditioner is not in operation ..................................... 7

6.1.7 Symptom: The heating operation stops suddenly and

a flowing sound is heard ............................................. 7

7 Disposal 8

1 About this document

Thank you for purchasing this product. Please:

▪ Read the documentation carefully before operating the user

interface to ensure the best possible performance.

▪ Keep the documentation for future reference.

Target audience

Endusers

INFORMATION

This appliance is intended to be used by expert or trained

users in shops, in light industry, and on farms, or for

commercial and household use by lay persons.

Documentation set

This document is part of a documentation set. The complete set

consists of:

▪General safety precautions:

▪ Safety instructions that you must read before operating your

system

▪ Format: Paper (in the box of the indoor unit)

▪Operation manual:

▪ Quick guide for basic usage

▪ Format: Paper (in the box of the indoor unit)

▪User reference guide:

▪ Detailed step-by-step instructions and background information

for basic and advanced usage

▪ Format: Digital files on http://www.daikineurope.com/support-

and-manuals/product-information/

Latest revisions of the supplied documentation may be available on

the regional Daikin website or via your installer.

The original documentation is written in English. All other languages

are translations.

2 About the system

INFORMATION

The sound pressure level is less than 70dBA.

WARNING: FLAMMABLE MATERIAL

The R32 refrigerant (if applicable) in this unit is mildly

flammable. Refer to the outdoor unit specifications for the

type of refrigerant to be used.

WARNING

▪ Do NOT modify, disassemble, remove, reinstall or

repair the unit yourself as incorrect dismantling or

installation may cause an electric shock or fire. Contact

your dealer.

▪ In case of accidental refrigerant leaks, make sure there

are no naked flames. The refrigerant itself is entirely

safe and non-toxic. R410A is a non-combustible

refrigerant, and R32 is a mildly flammable refrigerant,

but they will generate a toxic gas when they

accidentally leak into a room where combustible air

from fan heaters, gas cookers, etc. is present. Always

have qualified service personnel confirm that the point

of leakage has been repaired or corrected before

resuming operation.

NOTICE

Improper installation or attachment of equipment or

accessories could result in electric shock, short-circuit,

leaks, fire or other damage to the equipment. Only use

accessories, optional equipment and spare parts made or

approved by Daikin.

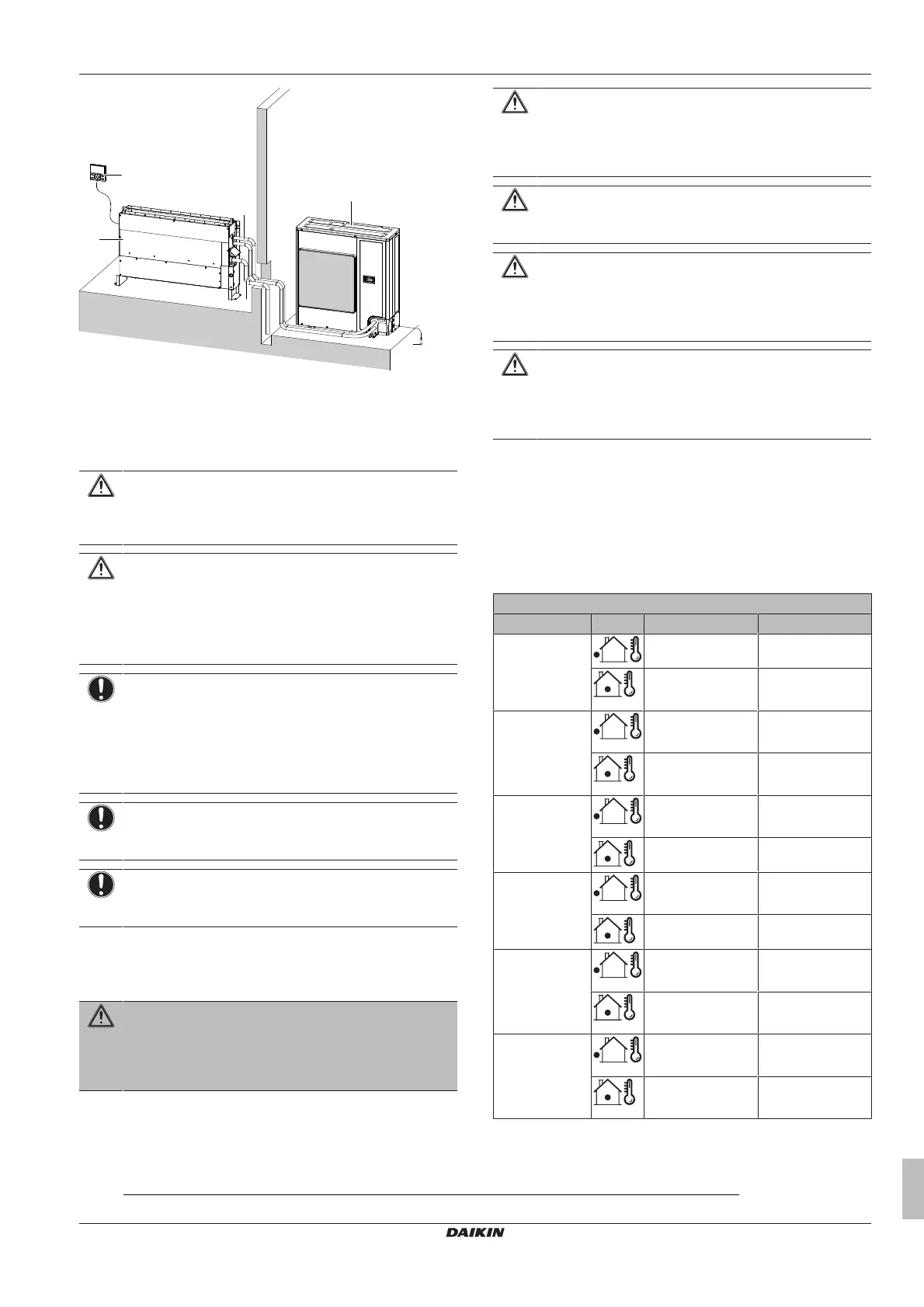

2.1 Components

INFORMATION

The following illustration is an example and might NOT

match your system layout.

3 Operation

Operation manual

FNA25~60A2VEB(9)

Split system air conditioners

4P456953-1B – 2018.08

aIndoor unit

bOutdoor unit

cUser interface

dRefrigerant piping and electric wiring

eDrain pipe

fEarth wire to ground outdoor unit to prevent electric

shocks.

CAUTION

Do NOT insert fingers, rods or other objects into the air

inlet or outlet. Do NOT remove the fan guard. When the

fan is rotating at high speed, it will cause injury.

CAUTION

▪ NEVER touch the internal parts of the controller.

▪ Do NOT remove the front panel. Some parts inside are

dangerous to touch and appliance problems may

happen. For checking and adjusting the internal parts,

contact your dealer.

NOTICE

Do NOT wipe the controller operation panel with benzine,

thinner, chemical dust cloth, etc. The panel may get

discoloured or the coating peeled off. If it is heavily dirty,

soak a cloth in water-diluted neutral detergent, squeeze it

well and wipe the panel clean. Wipe it with another dry

cloth.

NOTICE

NEVER press the button of the user interface with a hard,

pointed object. The user interface may be damaged.

NOTICE

NEVER pull or twist the electric wire of the user interface. It

may cause the unit to malfunction.

2.2 Information related to units using

R32 refrigerant

WARNING

Never use a flammable spray such as hair spray, lacquer

or paint near the unit. It may cause a fire, or, in case of

R32 refrigerant, misdetection by the refrigerant leakage

sensor.1

CAUTION

Do NOT turn off the breaker, unless you smell something

burning, or during a short repair period, inspection, or

cleaning of the unit. Otherwise, refrigerant leakage

CANNOT be detected.1

CAUTION

Do NOT install or use in highly airtight spaces, e.g.

soundproof chambers or rooms with sealed doors.

CAUTION

This unit is equipped with electrically powered safety

measures, such as a refrigerant leak detector. In order to

be effective, the unit must be electrically powered at all

times after installation, except for short service periods.

CAUTION

Do NOT install or use in places filled with smoke, gas,

chemicals etc. Sensors inside the indoor unit may detect

these substances, and display a refrigerant leak

abnormality.1

3 Operation

3.1 Operation range

Use the system in the following temperature and humidity ranges for

safe and effective operation.

Outdoor units using R410A refrigerant

Outdoor unit Cooling Heating

RR71~125 –15~46°CDB —

18~37°CDB

12~28°CWB

—

RQ71~125 –5~46°CDB –9~21°CDB

–10~15°CWB

18~37°CDB

12~28°CWB

10~27°CDB

RXS25~60 –10~46°CDB –15~24°CDB

–16~18°CWB

18~32°CDB 10~30°CDB

3MXS40~68

4MXS68~80

5MXS90

–10~46°CDB –15~24°CDB

–16~18°CWB

18~32°CDB 10~30°CDB

RZQG71~140 –15~50°CDB –19~21°CDB

–20~15.5°CWB

18~37°CDB

12~28°CWB

10~27°CDB

RZQSG71~140 –15~46°CDB –14~21°CDB

–15~15.5°CWB

20~37°CDB

14~28°CWB

10~27°CDB

(1) Only for units using R32 refrigerant. Refer to the outdoor unit specifications for the type of refrigerant to be used.
