WARNINGCAUTION

Read through this Installation Manual before installing.

WARNING

Installer must apply for standard installation guidance.

• Please perform the installation work, select insulation, and perform heat insulation construction in accordance with

the laws and regulations of each country.

• For speciﬁcations of connection piping, refer to Table 1 below.

• Piping is limited to newly installed piping.

Even with newly installed piping, remove places to which brazing material is adhered, or which have been burnt by the burner.

• Please keep minimum wall thickness of the pipe for installation.

• Do not disassemble the GAS TIGHT JOINT.

• When working in high places, work must be performed with a stable scaffold.

• Carry out the work of connecting the GAS TIGHT JOINT one location at a time, making sure each location is secure.

(Do not perform simultaneous work on 2 or more locations between the same outdoor and indoor unit)

• Do not use the GAS TIGHT JOINT which has been dropped.

•

The GAS TIGHT JOINT cannot be re-used if it has already been inserted into the piping, temporarily ﬁxed, and removed.

•

Do not turn the nut in the loosening direction.

INSTALLATION MANUAL

SDGTB06

SDGTB0906

1209

1512

1915

2219

2522

2825

3428

BDGTA34

41, SDGTLB22

3V022006-1A

GAS TIGHT JOINT

The case which may cause

dangerous situation such as

death or severe injury, at the

same time, it may cause

property damage when

mis-operated.

The case which may cause

dangerous situation such as

injury or minor injury, at the

same time, it may cause

property damage when

mis-operated.

R410A, R32 UNIT ONLY

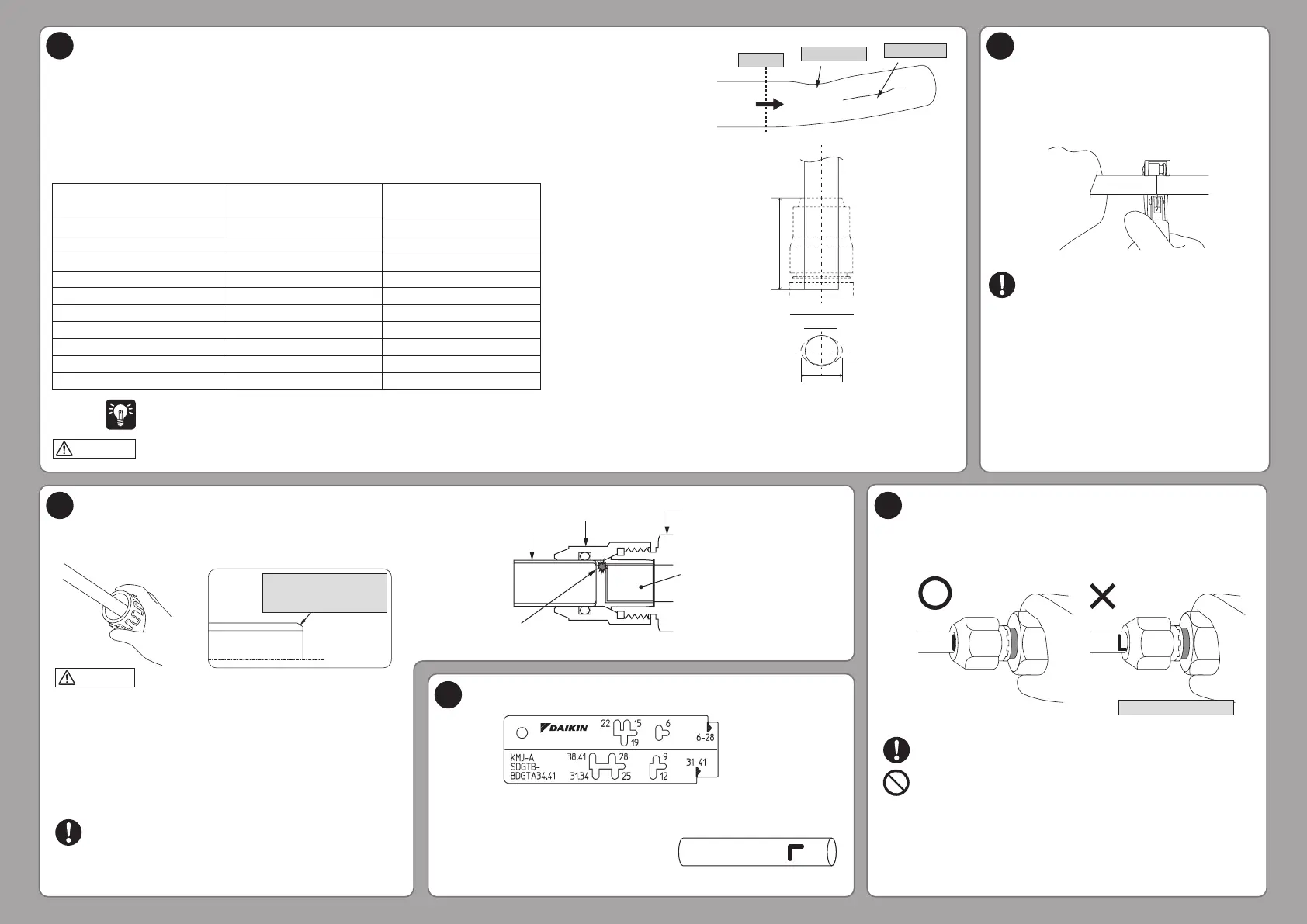

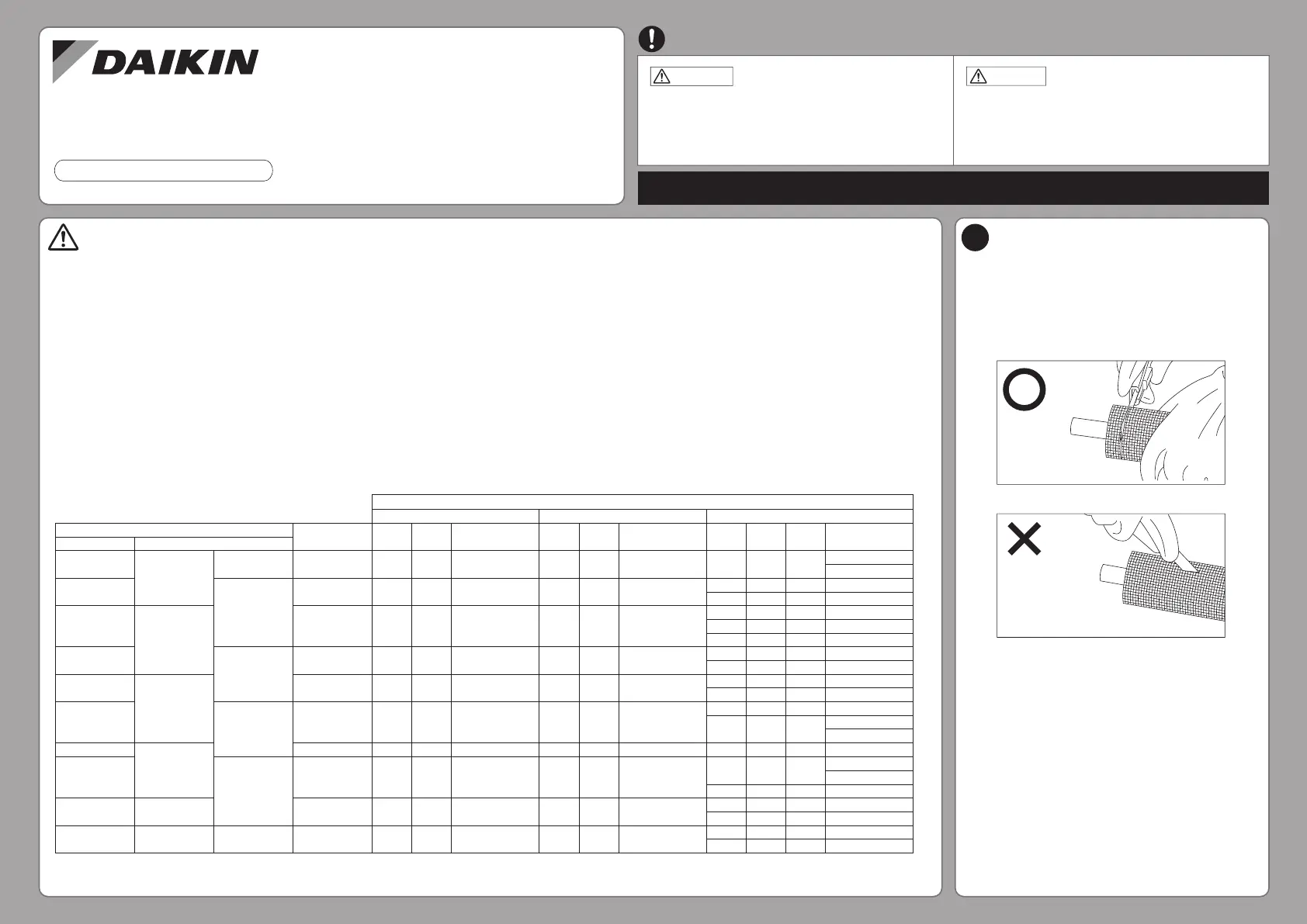

Removing the thermal insulation

material (copper pipe)

1) Be careful not to damage the pipe.

2) If using insulated copper pipe, cut in a

cylindrical direction, not in a lengthwise

direction.

(Cylindrical direction)

(Lengthwise direction)

R32: Type BDGTA34/41 are not applicable in the EU

Table 1 : Specication of connection piping

Standard

ASTM B280ASTM B88 (Type L)EN12735

Model name

Size (O.D.)O60H58Thickness (mm)

O60

O50

H58Thickness (mm)R220R250R290Thickness (mm)

Same diameterDifferent diameter

SDGTB06

SDGTB0906

–

φ6.35



–

0.762±0.08

–––



––

0.80±0.08

1.00±0.13

SDGTB09

SDGTB1209

φ9.52



–

0.813±0.08



–

0.762±0.08



–

0.80±0.08



––

1.00±0.13

SDGTB12

SDGTB1512

φ12.7



–

0.813±0.08



–

0.889±0.11



––

0.80±0.08

–



–

0.91±0.09



–

1.00±0.13

SDGTB15

SDGTB1915

φ15.88



–

0.889±0.11



–

1.016±0.11

–



–

0.91±0.09



–

1.00±0.13

SDGTB19

SDGTB2219

φ19.05

–



1.07±0.10

–



1.07±0.11



–

1.00±0.13

–



–

1.25±0.19

SDGTB22

SDGTLB22SDGTB2522

φ22.22

–



1.14±0.10

–



1.14±0.11



––

1.00±0.13

–



–

1.25±0.19

1.63±0.25

–

SDGTB2825

φ25.4 *2

–––––––



–

1.00±0.13

SDGTB28

SDGTLB28

SDGTB3428

φ28.58

–



1.27±0.10

–



1.27±0.13

–



1.00±0.13

1.25±0.19

–



–

1.63±0.25

BDGTA34

–

φ34.92

–



1.40±0.15

–



1.40±0.15

–



1.25±0.19

–



–

1.63±0.25

BDGTA41

––

φ41.28

–



1.52±0.15

–



1.52±0.15

–



1.25±0.19

––



1.63±0.25

Notes) 1. “–” : No settings

2. *2 : For connection to the stop valve outlet pipe only.

01_EN_3V022006-1A.indd 12021/08/23 9:40:49
