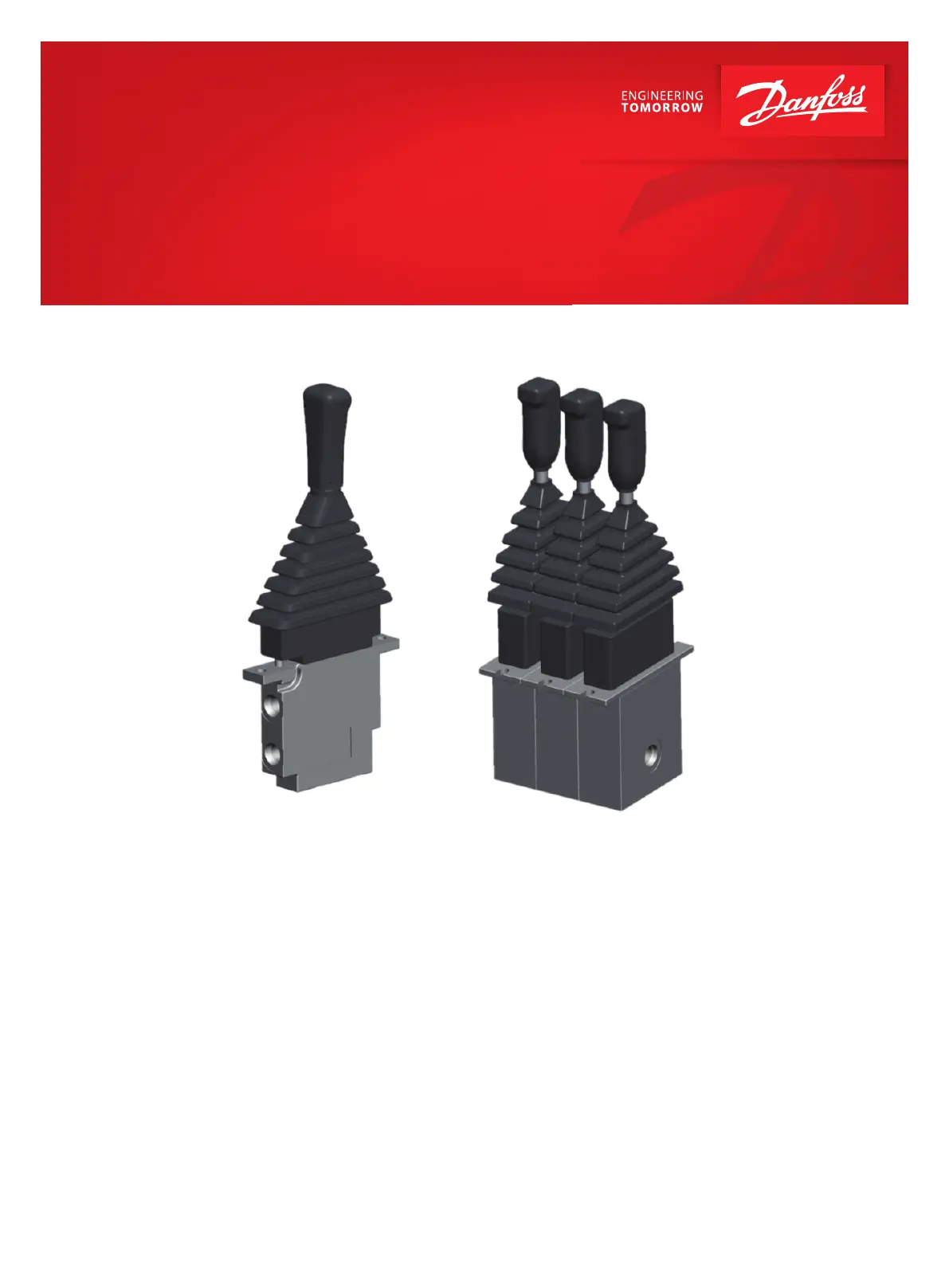

DHRCD
Technical Information
Hydraulic Pilot Sectional valve
DHRCD is part of D-HRC series.
D-HRC means Danfoss Hydraulic Remote Control valves which include:
DHRCJ — — Hydraulic Joystick
DHRCD — — Hydraulic Pilot Sectional Valve
DHRCP — — Hydraulic Foot Pedals
Excavator
Crane
Loader
AWP
Forklift
Drilling machine
Special vehicles
BC482581234885en-000101
1
Contents
General Description ........................................................................................................................................................................................................................... 3
General Specication ........................................................................................................................................................................................................................ 4
Conguration ....................................................................................................................................................................................................................................... 5
Options .................................................................................................................................................................................................................................................. 6
Dimensions ........................................................................................................................................................................................................................................... 9
Revision history ................................................................................................................................................................................................................................. 12
2
BC482581234885en-000101
DHRCD General Description
Description
Hydraulic Remote Controls (HRCs) are used to activate and control
directional valves or pumps from a remote and single operating
station. HRCs come in hand, foot and mechanically operated
versions, like the DHRCD series, sectional hydraulic pilot valve.
Each section can achieve single axis direction pilot control. There
are options for single and multi section type. Suitable for various
applications such as excavators, cranes, forklifts, and backhoe
loader. Flexible conguration with multiple valve bodies, handles,
and function options. It has excellent handling performance, sturdy
and durable design, and reliable quality.
Operation
HRCs are fed a constant input pressure, from which they create
reduced output pressures that vary proportionally with lever or
pedal stroke. When the HRC is operated, output pilot pressure
ows to the main directional control valves, precisely controlling
main spool position and direction.
D-HRC Features
• Market leader with over 30 years of industry experience.
• Precision control with less leakage, close to at hysteresis and
excellent linearity.
• Reliability and Quality.
• Ergonomic eciency and customization capabilities provide
unparalleled exibility.
*HRC
Main Valve
BC482581234885en-000101
3
*Schematic exemplification can be either one of the DHRC products.
