Sida 1/16

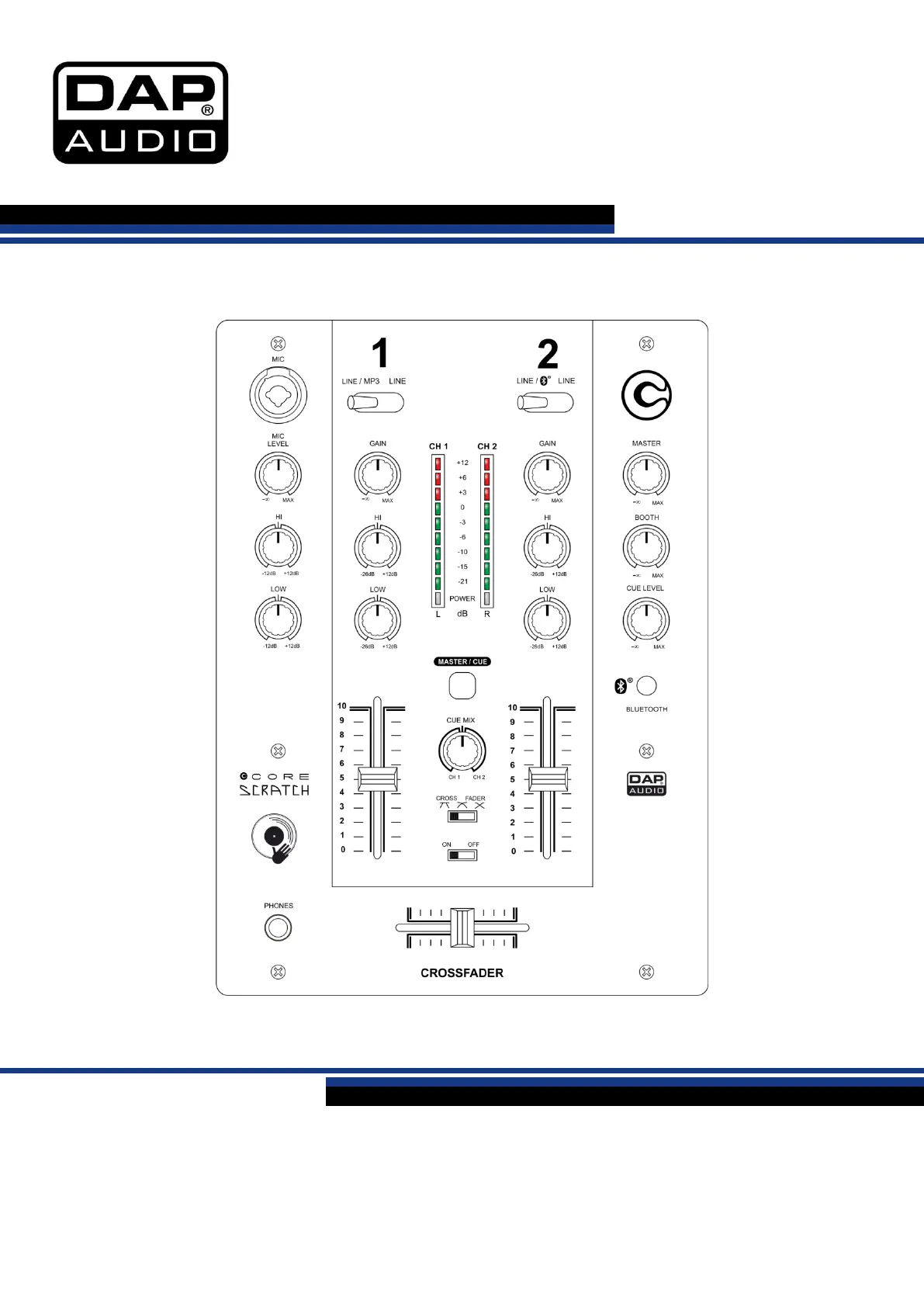

Core Scratch
Highlite International B.V. Vestastraat 2 6468 EX Kerkrade the Netherlands – – – –
Ordercode: D2312
MANUAL
ENGLISH
1
Core Scratch
D2312
Table of contents
Warning ............................................................................................................................................................................... 2
Unpacking Instructions ................................................................................................................................................. 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Overview ............................................................................................................................................................................. 4
Microphone channel ................................................................................................................................................... 5
Monitor section .............................................................................................................................................................. 5
Main channels ............................................................................................................................................................... 6
Master section ............................................................................................................................................................... 7
Bluetooth section .......................................................................................................................................................... 7
Rear ...................................................................................................................................................................................... 8
Connection Example ........................................................................................................................................................ 9
Connection Cables .........................................................................................................................................................10
Connect a Bluetooth device .........................................................................................................................................11
Maintenance ....................................................................................................................................................................11
Troubleshooting ...............................................................................................................................................................11
Product Specifications ....................................................................................................................................................12
Dimensions ........................................................................................................................................................................13
Notes ..................................................................................................................................................................................14
2
Core Scratch
D2312
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
DAP Audio Core Scratch
AC Power adapter
User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
be qualified
follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this device away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
