SDI-202

Highlite International B.V. Vestastraat 2 6468 EX Kerkrade the Netherlands – – – –

Ordercode: D1947

MANUAL

ENGLISH

Stereo Active DI Box

SDI-202 Stereo Active DI Box

D1947

Warning

Every person involved with the installation, operation and maintenance of this system has to:

 be qualified

 follow the instructions of this manual

Description

The SDI- provides two independent high quality active interfaces, that lets you connect instrument, 202

line, or speaker level signals to a mixer or other balanced inputs The instrument mode has a high .

impedance input, which makes it possible to connect an instrument with a high output impedance, like

an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. This mode also allows you

to connect electric devices with an unbalanced output like keyboard or Dj mixer. The RCA inputs are a

ideal for th kind of setup. It also has a speaker mode, which allows you to connect guitar amplifiers is

direct with the SDI-202. The SDI- has a very clean and neutral sound with a wide variety of signal 202

sources and over long signal runs in high noise environments. The SDI-202 will provide an even frequency

response on any input signal connected, with the benefit of cancellation of interference, hum and buzz.

 Jack & RCA inputs

 9V power supply ore 18-48V phantom power

 Ground lift

 Instrument & speaker inputs

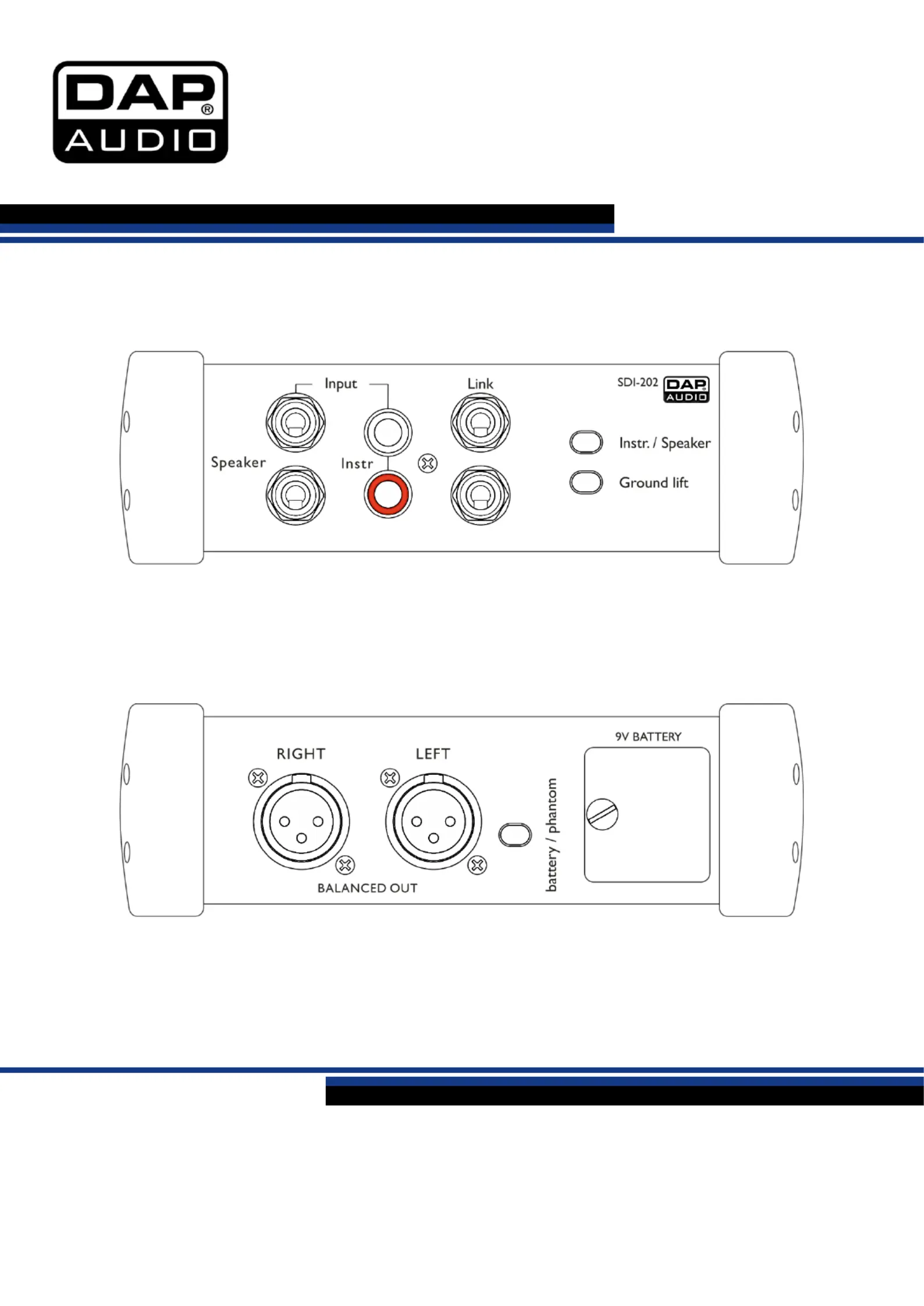

Overview

Unbalanced input 1/4" TRS sockets.

Unbalanced stereo RCA pin jacks.

Link out.

Switch between speaker or unbalanced instrument input.

Ground lift switch.

Balanced XLR output connector (R).

Balanced XLR output connector (L).

Switch between battery or phantom power.

(9V battery LED blinks, +48V phantom power LED is lit continuously) – –

Battery compartment.

CAUTION!

Keep this device away from rain and moisture!

SDI-202 Stereo Active DI Box

D1947

Connection Example
