Quick start user manual
Section 1
The warnings in this manual must be observed together with the "USER MANUAL - Section 2".
Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”.
Die Warnungen in diesem Handbuch müssen in Verbindung mit der "BEDIENUNGSANLEITUNG - Abschnitt 2" beobachtet
werden”.
Les avertissements specifiés dans ce manuel doivent être respectés ainsi que les "CARACTERISTIQUES TECHNIQUES -
Section 2"
Las advertencias del presente manual se deben tener en cuenta conjuntamente con las del “MANUAL DEL USUARIO” -
Sección 2”.
A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA)
Tel +39 051 969870 Fax +39 051 969725 www.dbtechnologies.com info@dbtechnologies-aeb.com
www.dbtechnologies.com info@dbtechnologies-aeb.com
SUB 612 Rev 1.1 cod. 420120266Q
Thank you for choosing a dBTechnologies Product!
The new SUB 612 is an active subwoofer. It is equipped with one 12” transducer (2.5” voice coil).
It is portable, thanks to the compact size, low weight and the convenient handle.
It allows a mono or stereo input and output connections, and a complete configuration with different parameters
controls. Thanks to the settings of polarity, low-frequencies enhancement, and of possible crossover filtering in
output, it is possible to use it in different scenarios. A typical configuration is the matching with B-Hype and Opera
series speakers, thanks to the M20 pole mount on the top. The subwoofer is also stackable.
Check the site for the complete user manual! www.dbtechnologies.com
1) Unpacking
The box contains:
N°1 SUB 612
N°1 Mains cable (VDE)
This quick start and warranty documentation

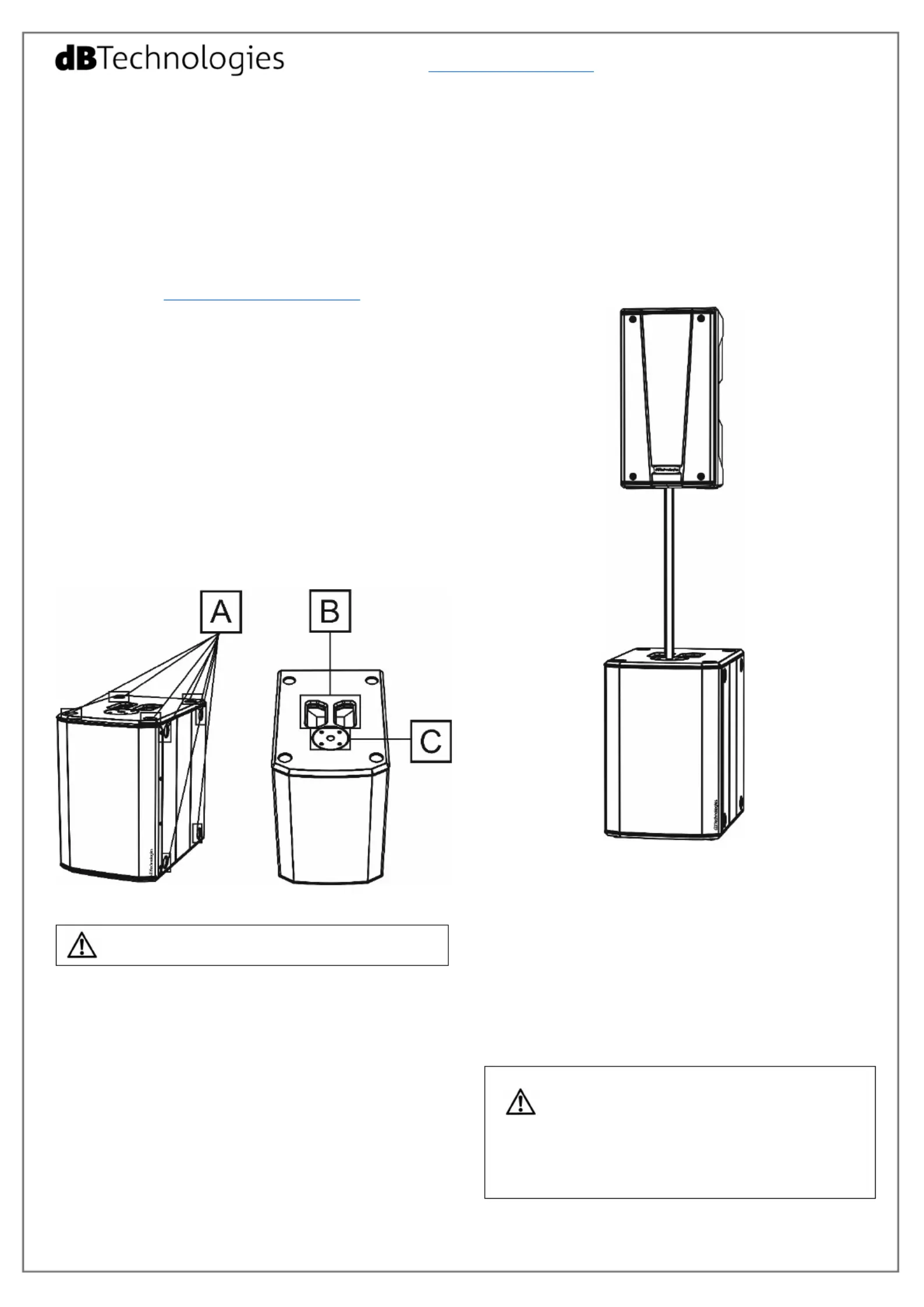

2) Easy installation
SUB 612 is equipped with:
A – Houses for stack mounting
B – Handle (1 on the top)
C – M20 pole mount
Those mechanical particulars were thought for an easy
use and for different configuration needs.
In the pictures above is shown an example of
configuration for the use of SUB 612.
The matching with a speaker (like one of the OPERA or
B-HYPE series) allows a perfect performance in an
extended frequency range. SUB 612 is perfect for
gigging bands, like for small-medium venue
installations. The design allows the user also to install
the subwoofer stacked (max 2 elements) in vertical or
in horizontal position. For further information check
the complete user manual.
IT IS MANDATORY TO READ AND FULLY
UNDERSTAND THE COMPLETE USER
MANUAL FOR THE ADMITTED CONFIGURATIONS
OF THE PRODUCT, SAFETY INFORMATION, AND
THE PROPER USE OF ACCESSORIES (IF ANY).
NEVER USE THE HANDLES TO SUSPEND
THE SPEAKER!
www.dbtechnologies.com info@dbtechnologies-aeb.com
SUB 612 Rev 1.1 cod. 420120266Q

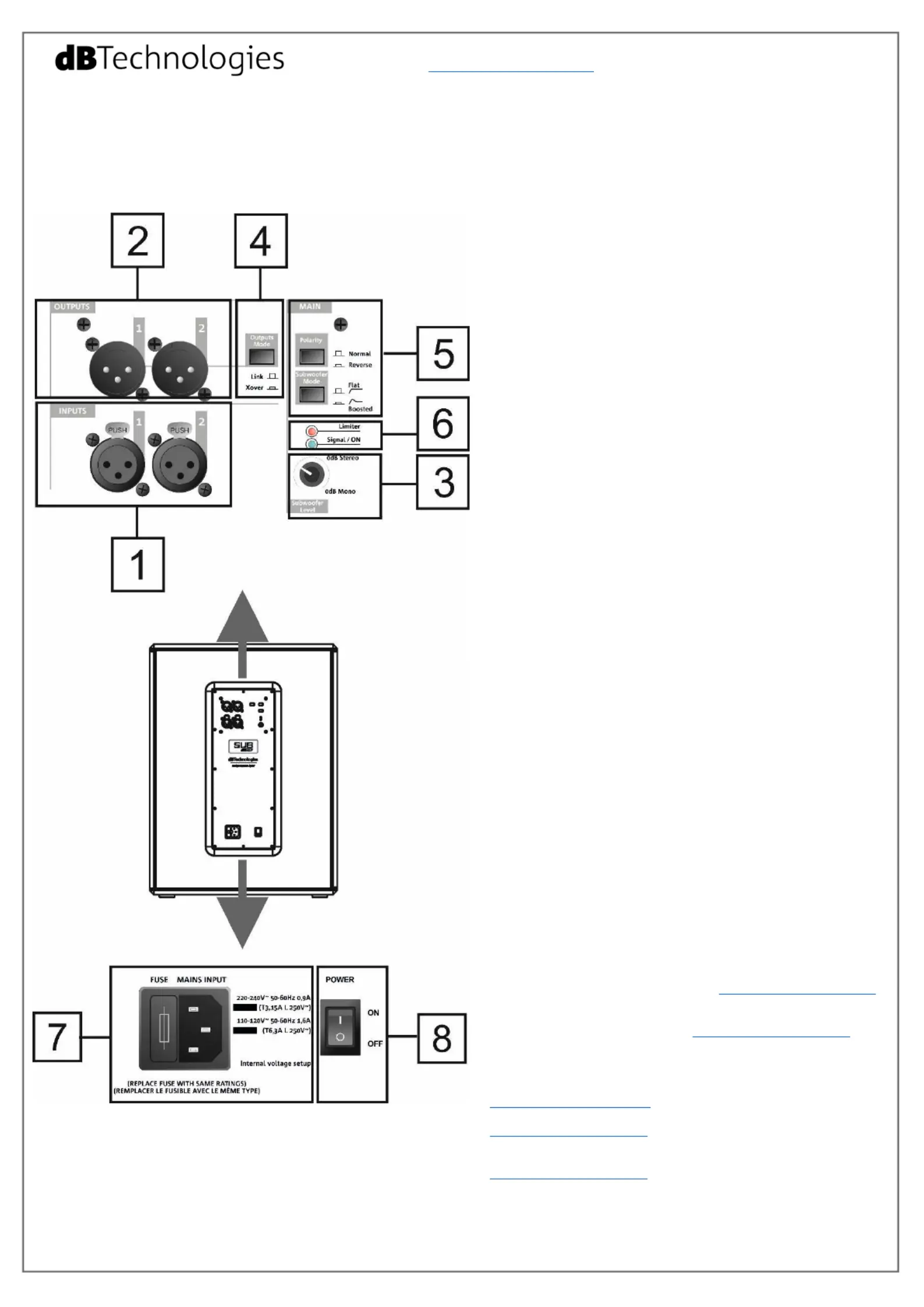

3) Connections and controls
All the connections and controls are in the amplifier
panel side:
1 – Balanced XLR inputs
2 – Balanced XLR outputs
3 – Subwoofer level rotary
4 – Outputs Mode (Link or Xover mode)
5 – Subwoofer Setup (Polarity switch) and
Subwoofer Mode button (Flat/Boosted)
6 – LEDs (Limiter, Signal / ON)
7 – Mains input connector
8 – Power switch (ON, OFF)
a) Once you have properly set up the desired
configuration (see also the complete user manual and
accessories instructions for further information),
connect the audio input (mono) or inputs (stereo) ( ). 1
Connect the output (mono) or outputs (stereo) ( ) and 2
consequently set the Subwoofer level to 0 dB in the
right position ( ). 3
b) Set properly the Outputs Mode ( ): “Link” in case of 4
direct link connection, “Xover” for example in case of
use with a OPERA or B-HYPE series model.
c) Choose the Subwoofer Polarity (Normal or Reverse)
( ) to obtain the proper behavior. It is possible to add 5
a low-frequencies boost (5) with the related Subwoofer
Mode switch.
d) Connect the VDE cable to the related connector ( ). 7
Then turn ON the power switch ( ). The, the 8
“Signal/ON” LED ( ) turns on, signaling the proper 6
power connection, and starts blinking at the presence
of audio signal (greater than -20 dBu).
Check the complete user manual on www.dbtechnologies.com
for further information about the system and available
accessories.
Scarica il manuale completo da www.dbtechnologies.com per
ogni ulteriore informazione sul sistema e sugli accessori
disponibili.
Für weitere Informationen und verfügbares Zubehör lesen sie
bitte die vollständige Bedienungsanleitung unter
www.dbtechnologies.com.
Vérifiez le manuel de l'utilisateur complet sur
www.dbtechnologies.com pour des informations
complémentaires du système et des accessoires disponibles.
Compruebe el manual de usuario completo sobre
www.dbtechnologies.com para la información adicional sobre el
sistema y accesorios disponibles.
