Sida 1/7

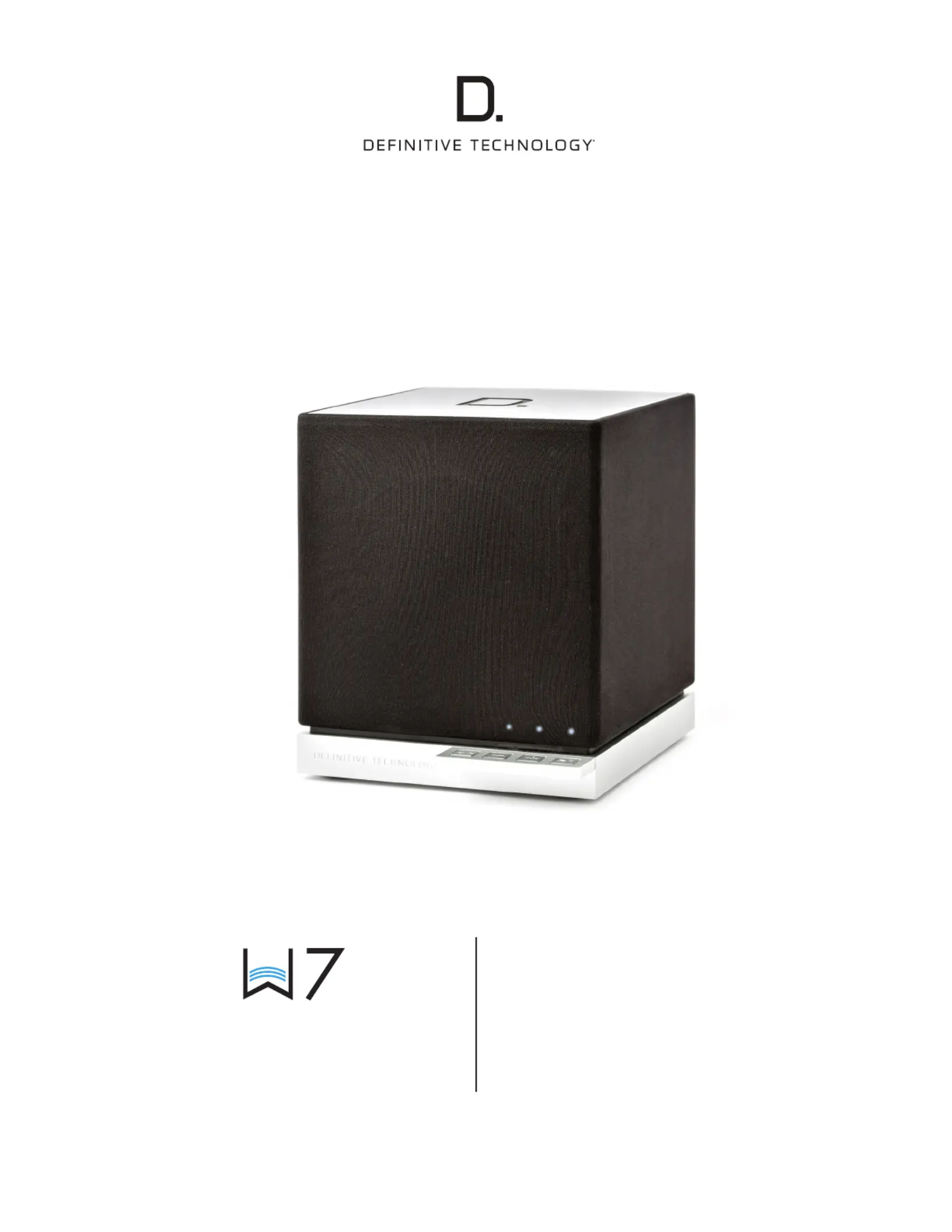

Wireless Collection

Owner’s Manual

High-performance

Wireless Speaker

www.definitivetech.com

www.definitivetech.com 2

Contents

What’s in the Box 3

Getting Started with Wireless Streaming 3

Apps 4

Playing Music 4

Adding Multiple Devices 5

Specications 5

Technical Assistance & Contact 6

Audiophile Grade Wireless Speaker

The W7 is Denitive Technology’s ultra-compact, audiophile-grade wireless

speaker, perfect for those who won’t compromise on performance, even in

smaller living spaces. The W7’s “Tri-Polar” conguration radiates sound off of

surrounding walls and gives it the unique cube-shape design. As a result, the

soundstage has a rich, room-lling signature.

The Denitive Technology Wireless Collection

The W7 is part of Denitive Technology’s Wireless Collection which is an

all-encompassing solution for distributing audiophile-grade music anywhere

or everywhere in your home. The W7 can be used as a stand-alone wireless

speaker or as part of a family. Stream your favorite music services, internet

radio and your personal digital music library all from your smartphone, tablet

or computer. What’s more, the streamlined setup process allows you to be

up and running in a matter of minutes. And because you can Mix and match

speakers with the open DTS Play-Fi

technology standard, future-proong your

technology has never been easier.

owner’s manual

www.definitivetech.com

Getting Started

Home Network Basics

In general, Wi-Fi is the wireless streaming of data over a network. Here,

Wi-Fi audio is the streaming of music throughout a home network by connecting

multiple speakers and/or devices together. The controller for the Denitive

Technology Wireless Collection is the Denitive Technology App, which sends

music information to each DTS Play-Fi enabled speaker or device.

Network and System Requirements

It all begins by building a wireless home network, preferably one with a

high-speed Internet connection. Here’s what you’ll need to connect your W7 to

your network:

• A Wireless Network connected to the internet with an 802.11g router

or better.*

• An Android device with version 2.2 operating system or newer OR

an iOS device with version 6.0 operating system or newer.

• The password for your wireless network (if required).

*Router type is usually listed on the router, itself. Please call the dedicated

Denitive Technology Acionado hotline at for further 1-800-223-5246

questions related to router type.

For The Best Music Streaming Experience

To ensure your system is operating under the best environment possible, here

are a few additional tips:

• For the fastest streaming performance, especially when connecting

to multiple speakers simultaneously, an 802.11n router or better is

recommended.

• Ensure the DTS Play-Fi device is within wireless reach of your router,

or that the signal is not blocked by concrete, brick, or other walls. The

quality of your connection can be observed in the Denitive App by

the Wireless Strength icon.

What’s in the Box

1. W7

2. Power cable

3. Setup Guide

Connecting your W7

Wi-Fi Setup

1. To ensure easy setup, place your W7 near your internet-

connected wireless router. When setup is complete, you can move

your device anywhere you want to.

2. Connect the included power cable to the W7 and a power

outlet. The device will power on automatically.

3. The white light on the back will blink quickly for about 20 seconds,

after which it will begin to pulse slowly.

4. The slowly pulsing light means your device is ready to connect to your

Wi-Fi network.

NOTE: if the Wi-Fi LED is not pulsing slowly, Press and hold the

Wi-Fi setup button (for 8 seconds), until you hear the second

set of tones.

5. Download the Definitive Technology App from the Apple App Store or

Google Play Store.

6. Launch the app and follow the instructions.

Utility App

W7 Buttons Controls

Source (Optical, Analog, Ethernet)

Volume Down

Volume Up

Play/Pause

W7 Back Panel

• Audio Inputs—DIGITAL and AUX

• ETHERNET—for a wired connection to your router.

• USB—for firmware updates only.

• Wi-Fi SETUP Button—to connect wirelessly to your Wi-Fi network.
