KITCHENAIRE

SOLID PLATES STOVE

DSS693 & DSS694

Cooking

Instruction manual

Part number: 073234D

PAGE 2 OF16

Dear Customer,

Your new Defy oven was manufactured in a state of the art facility and has passed the strictest

quality control procedures.

Please read this manual carefully before using your oven for the first time and then store it

within easy reach for future reference.

This manual will provide you with information on how to operate and care for your oven to gain

the maximum benefit from it.

We trust you will enjoy years of trouble free use.

EXPLANATION OF SYMBOLS

Important information

Warning—Hazardous situations

Warning—Electric shock

Caution; Warning for fire hazard

Caution; Warning for hot surfaces

Contents

PLEASE REGISTER YOUR PRODUCT AT

www.defy.co.za

DEFY APPLIANCES (PTY) LTD

P.O.BOX 12004

JACOBS

DURBAN

4026

SOUTH AFRICA

1. General Information 3

Introduction 3

Unpacking 3

Installation 3

Anti-tilt Mechanism 4

2. Important Safety Instruction 5

Safety advice 5

General Safety 5

3. How to use the oven 7

The control panel 7

Tips for baking 7

Tips Grilling 7

Selector switch 7

How to operate the electric oven 8

How to operate the grill 9

4. Maintenance and care 11

General cleaning 11

Cleaning the oven 11

Steam assisted cleaning 11

Removing the Oven light 11

Removing the oven door 12

5. Trouble Shooting 13

6. Branches 15

7. Warranty 16

PAGE 3 OF16

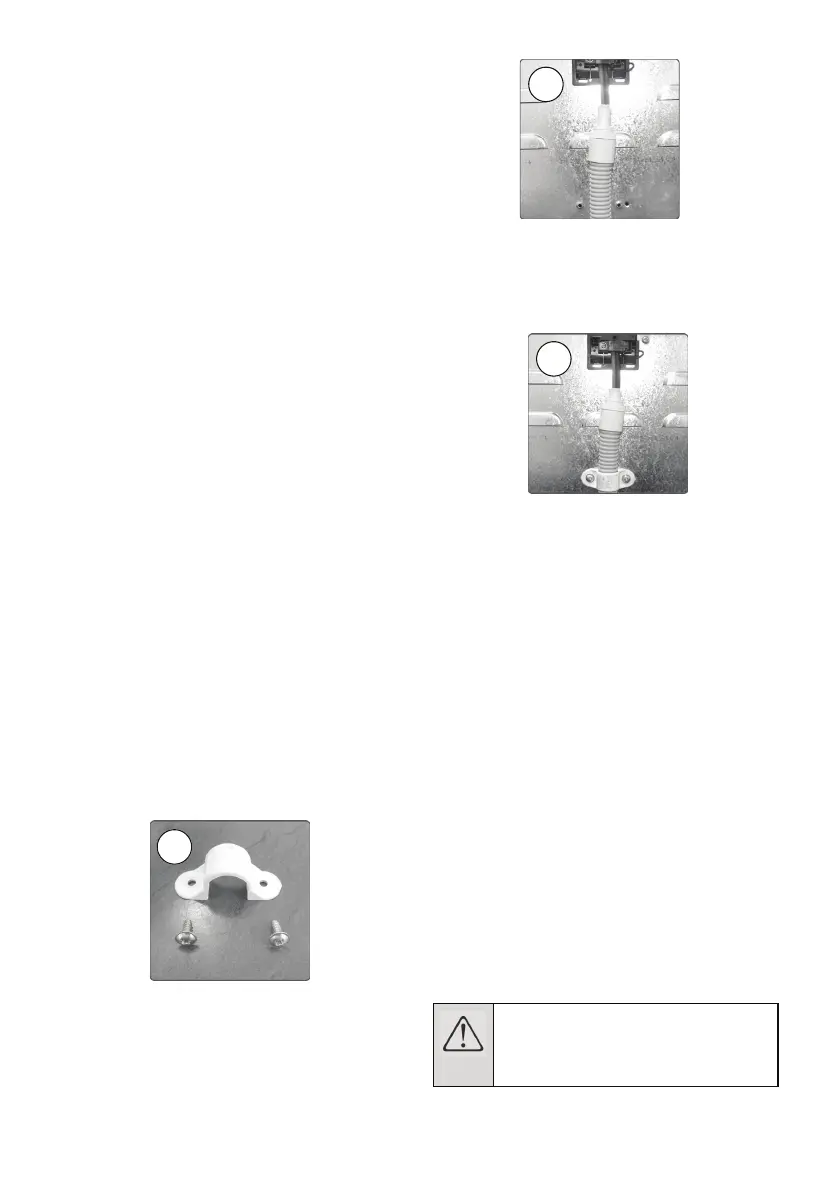

Connecting the sprague to the oven

1.) Purchase a standard plastic/metal saddle

type bracket, capable of going around the

20 mm diameter sprague and with a hole

pitch of 38 mm (Plastic) 45 mm (Metal),

from your local hardware and 2 off 4.2

mm x 12 mm self tapping screws.

2.) Feed the cables through the Sprague and

connect to the mains terminal block of the

appliance.

3.) Place the plastic/metal saddle around the

sprague and fasten via the 2 self tapping

screws onto the factory pre punched

holes adjacent to the mains terminal block

of the appliance.

WARNING! ELECTRICAL

CONNECTION MUST ONLY BE

DONE BY A QUALIFIED

ELECTRICIAN!

Introduction

Congratulations on the purchase of this

quality product.

We trust that you will enjoy many years of

trouble free use. Please read these

instructions carefully before using the stove.

This manual will provide you with

information on how to operate and care for

your product in order that you gain the

maximum benefit from it.

Unpacking

• Please ensure that packaging material is

disposed of in a responsible manner.

• Plastic bags should be cut up to prevent

children playing with them and

accidentally suffocating.

• Remove all packing from the oven cavity

and position the accessories.

• If the appliance is damaged in any way,

do not use it. Report the damage to your

dealer, who will take the necessary

corrective action.

Installation

• Levelling feet are provided to assist you

in positioning your stove, so that it will

stand firm and level. To adjust the level,

turn the relevant foot to either raise or

lower the stove.

• Surfaces immediately adjacent to the

oven should be able to withstand

temperatures of up to 100°C without

delaminating or discolouring.

Electrical installation

This appliance must be earthed and the

manufacturer and the seller do not accept

responsibility for any damage due to

incorrect installation or electrical connection.

This appliance should not be connected

through an earth leakage system. Refer to

S.A.N.S. 10142

Connection to the power supply

This appliance has a ‘Y’ type supply cord

connection and must be installed by a

licensed electrician, who will ensure that the

stove is correctly connected and safely

earthed. The rated current is printed on the

serial number label attached to the stove

upper back panel. The appliance must be

connected to the mains through an All pole

isolating switch which has a minimum

clearance between the contacts of 3 mm in

All poles. A means for disconnection must

be provided in the fixed wiring.

1. General information

Produktspecifikationer

Varumärke:	Defy
Kategori:	Ugn
Modell:	DSS694
Produkttyp:	Fristående köksspis
Inbyggd display:	Nej
Bredd:	600 mm
Djup:	655 mm
Höjd:	1210 mm
Grill:	Ja
Ugnens strömkälla:	Elektrisk
Antal ugnar:	1
Energiförbrukning (konventionell):	- kWh
Ugnsstorlek:	Stor
Självrengörande:	Ja
Produktens färg:	Svart
Kontrolltyp:	Rotations-
Ugnens nettokapacitet:	78 l
Rengöringstyp:	Ånga
AC-inspänning:	220 - 240 V
Växelström Frekvens:	50 hz
Ström:	35 A
Tittfönster:	Ja
Grill styrka:	1200 W
Typ av spishäll:	Gjutjärnsplatta
Antal brännare / zoner matlagning:	4
Antalet elektriska kokzoner:	4
Normalkokning:	Ja
Anslutningseffekt (elektrisk):	8075 W
Löstagbart glas i ugnsluckan:	Ja
Ugnspanna:	Ja
