Dell™ E1713S/E2013H/E2213H/E2313H Monitor
User's Guide
Setting the display resolution to (for E1713S) or (for E2013H) or (for E2213H/E2313H) (Maximum)1280 x 1024 1600 x 900 1920 x 1080
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: and the logo are trademarks of Dell Inc.; are either registered trademarks or trademarks of Microsoft Corporation inDell DELL Microsoft and Windows
the United States and/or other countries. is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determinedENERGY STAR
that this product meets the ENERGY STAR guidelines for energy eciency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
Model E1713Sc/E1713Sb/E2013Hc/E2213Hb/E2313Hf
October 2012 Rev. A00
Dell™ E1713S/E2013H/E2213H/E2313H Monitor User's Guide
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
Notes, Cautions, Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: and the logo are trademarks of Dell Inc.; are either trademarks or registered trademarks of Microsoft Corporation inDell DELL Microsoft and Windows
the United States and/or other countries. is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined ENERGY STAR
that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
Model E1713Sc/E1713Sb/E2013Hc/E2213Hb/E2313Hf
October 2012 Rev. A00
Back to Contents Page
About Your Monitor
Dell™ E1713S/E2013H/E2213H/E2313H Monitor User's Guide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
LCD Monitor Quality & Pixel Policy
Maintenance Guidelines
Package Contents
Your monitor ships with all the components shown below. Ensure that you have received all the components and if anything is missing. Contact Dell™
NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
Monitor
Stand Riser
Stand Base
Power Cable (varies by countries)
VGA Cable (attached to the monitor or individual packing)
DVI Cable (Packing for E2013H/E2213H/E2313H only)
1. Function buttons (For more information, see
Operating the Monitor)
2. Power On/Off button (with LED indicator)
Back View
Label Description Use
1 VESA mounting holes (100 mm) To mount the monitor.
2 Rating label Power ratings and energy information.
3 Barcode serial number label Refer to this label if you need to contact Dell for technical support.
4 Security lock slot Use a security lock with the slot to help secure your monitor.
5 Dell soundbar mounting brackets To attach the optional Dell Soundbar.
Side View
Right Side
Bottom View
E1713S: E2013H/E2213H/E2313H:
Label Description Use
1 Regulatory label Lists the regulatory approvals.
2 AC power connector To connect the monitor power cable.
3 VGA connector To connect your computer to the monitor using a VGA cable.
4 Regulatory label Lists the regulatory approvals.
Label Description Use
1 Regulatory label Lists the regulatory approvals.
2 AC power connector To connect the monitor power cable.
3 DVI connector To connect your computer to the monitor using a DVI cable.
4 VGA connector To connect your computer to the monitor using a VGA cable.
5 Regulatory label Lists the regulatory approvals.
Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.
Power Management Modes
If you have VESA's DPM compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use. This is referred to as . If the computer detects input from keyboard, mouse, or otherPower Save Mode
input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature:
E1713S:
VESA Modes Horizontal Sync Vertical Sync Power Indicator Power ConsumptionVideo
Normal operation 25 W (Maximum)Active Active Active Blue
18 W (Typical)
Active-Off mode Less than 0.5 WInactive Inactive Blank Amber
Switch Off Less than 0.5 W- - - Off
E2013H:
VESA Modes Horizontal Sync Vertical Sync Power Indicator Power ConsumptionVideo
Normal operation 20 W (Maximum)Active Active Active Blue
14 W(Typical)
Active-Off mode Less than 0.5 WInactive Inactive Blank Amber
Switch Off Less than 0.5 W- - - Off
E2213H:
VESA Modes Horizontal Sync Vertical Sync Power Indicator Power ConsumptionVideo
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-
Plug and Play Capability
You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and
optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.
Flat Panel Specifications
Model number Dell E1713S monitor Dell E2013H monitor Dell E2213H monitor Dell E2313H monitor
Screen type Active matrix - TFT LCD Active matrix - TFT LCD Active matrix - TFT LCD Active matrix - TFT LCD
Panel Type TN TN TN TN
Screen dimensions 43.3 cm (17.0 inches) (17.0-inch
viewable image size)
50.8 cm (20.0 inches) (20.0-inch wide
viewable image size)
54.6 cm (21.5 inches) (21.5-inch wide
viewable image size)
58.4 cm (23.0 inches) (23.0-inch wide
viewable image size)
Preset display area:
Horizontal
Vertical
337.9 mm (13.30 inches)
270.3 mm (10.64 inches)
442.8 mm (17.43 inches)
249.1 mm (9.81 inches)
476.1 mm (18.74 inches)
267.8 mm (10.54 inches)
509.2 mm (20.05 inches)
286.4 mm (11.28 inches)
Pixel pitch 0.284 mm 0.248 mm 0.265 mm0.264mm
Viewing angle
Horizontal
Vertical
170 ° typical
160 ° typical
170 ° typical
160 ° typical
170 ° typical
160 ° typical
170 ° typical
160 ° typical
Luminance output 250 cd/m² (typical) 250 cd/m² (typical) 250 cd/m² (typical) 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical) 1000 to 1 (typical) 1000 to 1 (typical) 1000 to 1 (typical)
Faceplate coating Antiglare with hard-coating 3H Antiglare with hard-coating 3H Antiglare with hard-coating 3H Antiglare with hard-coating 3H
Backlight CCFL light bar system LED light bar system LED light bar system LED light bar system
Response Time 5 ms typical (black to white) 5 ms typical (black to white) 5 ms typical (black to white) 5 ms typical (black to white)
Color Depth 16.7 mil colors 16.7 mil colors 16.7 mil colors 16.7 mil colors
Color Gamut 83 % (typical) ** 83 % (typical) ** 83% (typical) ** 83 % (typical) **
* Based on estimation.
** [E1713S/E2013H/E2213H/E2313H] color gamut (typical) is based on CIE1976 (83 %) and CIE1931 (72 %) test standards.
Resolution Specifications
Model number Dell E1713S monitor Dell E2013H monitor Dell E2213H monitor Dell E2313H monitor
Scan range
Horizontal
Vertical
30 kHz to 81 kHz (automatic)
56 Hz to 76 Hz (automatic)
30 kHz to 83 kHz (automatic)
56 Hz to 76 Hz (automatic)
30 kHz to 83 kHz (automatic)
56 Hz to 76 Hz (automatic)
30 kHz to 83 kHz (automatic)
56 Hz to 76 Hz (automatic)
Maximum preset resolution 1280 x 1024 at 60 Hz 1600 x 900 at 60 Hz 1920 x 1080 at 60 Hz 1920 x 1080 at 60 Hz
Electrical Specifications
Model number Dell E1713S/E2013H/E2213H/E2313H
monitor
Video input signals
Analog RGB: 0.7 Volts +/- 5 %, 75 ohm input
impedance
DVI-D: Single link maximum data rate including
8b/10b overhead is 4.95 Gbit/s @ 165 MHz base
on four TMDS pairs, 100 ohm input
impedence.(For E2013H/E2213H/E2213H only)
Synchronization input signals
Separate horizontal and vertical synchronizations,
polarity-free TTL level, SOG (Composite SYNC on
green)
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 900 60.0 60.0 108.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
Physical Characteristics
The following table lists the monitor's physical characteristics:
Model Number Dell E1713S monitor Dell E2013H monitor Dell E2213H monitor Dell E2313H monitor
Connector type D-subminiature, blue connector
D-subminiature, blue connector
DVI-D: White connector
D-subminiature, blue connector;
DVI-D: White connector
D-subminiature, blue connector;
DVI-D: White connector
Signal cable type D-sub: Detachable, Analog, 15 pin, shipped
attached to the monitor
D-sub: Detachable, Analog, 15 pin, shipped attached
to the monitor
DVI-D: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
D-sub: Detachable, Analog, 15 pin, shipped attached
to the monitor
DVI-D: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
D-sub: Detachable, Analog, 15 pin, shipped attached
to the monitor
DVI-D: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
Dimensions: (with stand)
Height
Width
Depth
378.9 mm (14.92 inches)
375.5 mm (14.78 inches)
163.5 mm (6.44 inches)
366.9 mm (14.45 inches)
478.8 mm (18.85 inches)
163.5 mm (6.44 inches)
386.6 mm (15.22 inches)
513.1 mm (20.20 inches)
180.1 mm (7.09 inches)
404.8 mm (15.94 inches)
546.4 mm (21.51 inches)
180.1 mm (7.09 inches)
Dimensions: (without stand)
Height
Width
Depth
307.9 mm (12.12 inches)
375.5 mm (14.78 inches)
59.0 mm (2.32 inches)
285.0 mm (11.22 inches)
478.8 mm (18.85 inches)
52.0 mm (2.05 inches)
304.6 mm (11.99 inches)
513.1 mm (20.20 inches)
52.0 mm (2.05 inches)
323.3 mm (12.73 inches)
546.4 mm (21.51 inches)
52.0 mm (2.05 inches)
Stand dimensions:
Height
Width
Depth
141.4 mm (5.57 inches)
236.0 mm (9.29 inches)
163.5 mm (6.44 inches)
141.4 mm (5.57 inches)
236.0 mm (9.29 inches)
163.5 mm (6.44 inches)
168.1 mm (6.62 inches)
256.0 mm (10.08 inches)
180.1 mm (7.09 inches)
168.1 mm (6.62 inches)
256.0 mm (10.08 inches)
180.1 mm (7.09 inches)
Weight:
Weight with packaging
4.31 kg (9.50 lb)
4.73 kg (10.40 lb)
5.31 kg (11.70 lb)
5.79 kg (12.74 lb)
Weight with stand assembly and cables 3.62 kg (7.98 lb) 3.43 kg (7.54 lb) 4.05 kg (8.93 lb) 4.62 kg (10.17 lb)
Weight without stand assembly
(For wall mount or VESA mount
considerations - no cables)
3.02 kg (6.66 lb) 2.71 kg (5.96 lb) 2.89 kg (6.37 lb) 3.46 kg (7.62 lb)
Weight of stand assembly 0.33 kg (0.73 lb) 0.33 kg (0.73 lb) 0.76 kg (1.68 lb) 0.76 kg (1.68 lb)
Environmental Characteristics
The following table lists the environmental conditions for your monitor:
Model Number Dell E1713S monitor Dell E2013H monitor Dell E2213H monitor Dell E2313H monitor
Temperature
Operating
Non-operating
0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating
Non-operating
10 % to 80 % (non-condensing)
Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
10 % to 80 % (non-condensing)
Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
10 % to 80 % (non-condensing)
Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
10 % to 80 % (non-condensing)
Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
Altitude
Back to Contents Page
Setting Up the Monitor
Dell™ E1713S/E2013H/E2213H/E2313H Monitor User's Guide
Attaching the Stand
Removing the Monitor Stand for VESA Wall Mount
Connecting Your Monitor
Attaching the Dell Soundbar (Optional)
Attaching the Stand

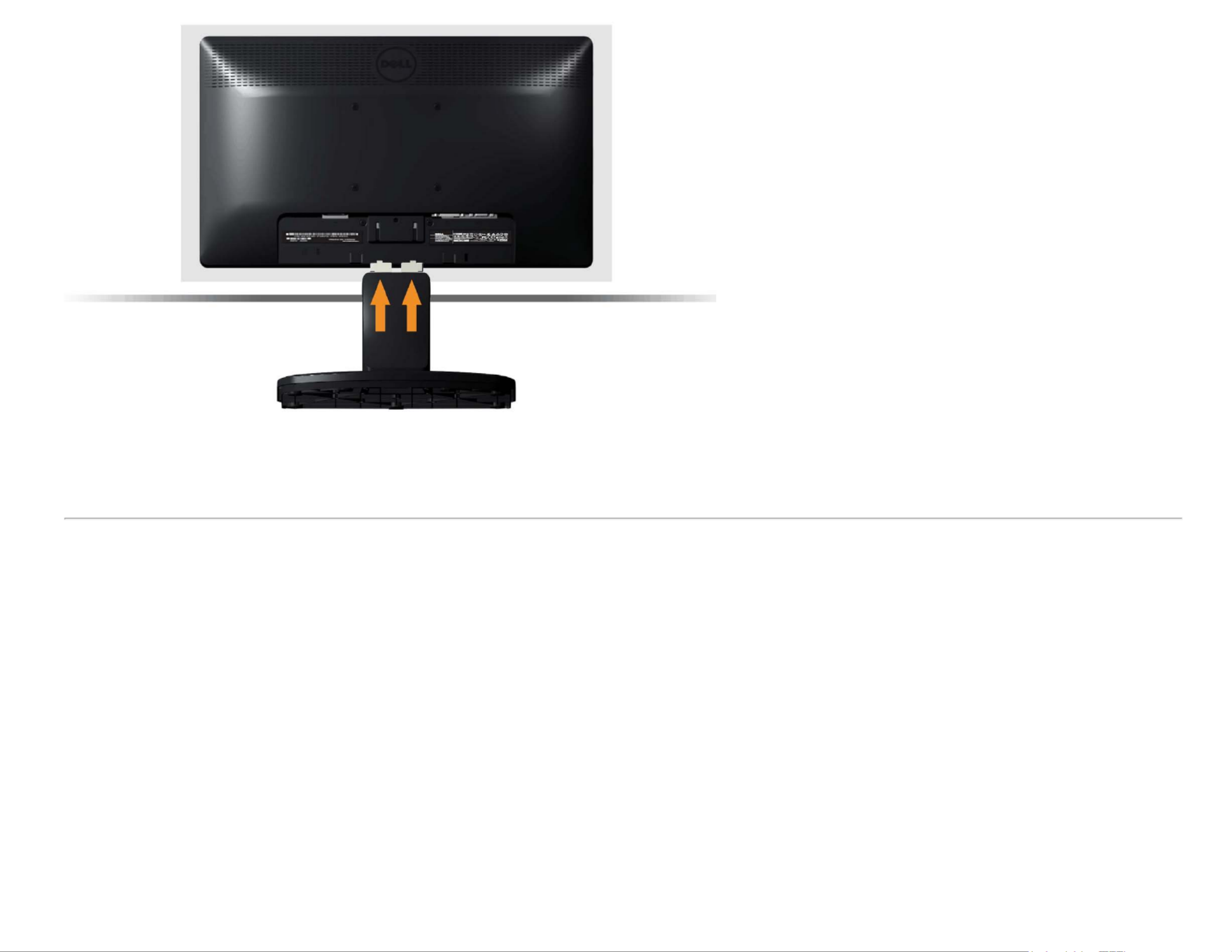

NOTE: The stand base is detached when the monitor is shipped from the factory.
1. Assemble the stand riser to stand base.
a. Place the monitor stand base on a stable table top.
b. Slide the monitor stand body in the correct direction down onto the stand base until it clicks into place.
2. Attach the stand assembly to the monitor:
a. Place the monitor on a soft cloth or cushion near the edge of desk.
b. Align the stand assembly bracket to the monitor groove.
c. Insert the bracket towards monitor until it locks in place.
Removing the Monitor Stand for VESA Wall Mount
After placing the monitor panel on a soft cloth or cushion, complete the following steps to remove the monitor stand:
1. Use a long screwdriver to push the release latch located in a hole just above the monitor stand.
2. Once the latch is released, remove the monitor stand away from the monitor.
Connecting Your Monitor
.WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions
To connect your monitor to the computer:
1. Turn Off your computer and disconnect the power cable.
2. Connect either the white (digital DVI-D) or the blue (analog VGA) display connector cable to the corresponding video port on the back of your computer. Do not use
both cables on the same computer. Use both the cables only when they are connected to two different computers with appropriate video systems.
Connecting the Blue VGA Cable
Connecting the white DVI cable (for E2013H/E2213H/E2313H only)
CAUTION: The graphics are used for the purpose of illustration only. Appearance on the computer may vary.
Attaching Dell Soundbar AX510PA (optional)
CAUTION: Do not use with any device other than the Dell Soundbar.
To attach the soundbar:
1. Working from the back of the monitor, attach Soundbar by aligning the two slots with the two tabs along the bottom of the monitor.
2. Slide the Soundbar to the left until it snaps into place.
3. Connect the Soundbar with the DC power connector from the Soundbar Power Adapter.
4. Insert the mini stereo plug from the back of the Soundbar into the computer's audio output jack.
Back to Contents Page
Back to Contents Page
Operating the Monitor
Dell™ E1713S/E2013H/E2213H/E2313H Monitor User's Guide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt
Power On the Monitor
Press the button to turn On the monitor.
Using the Front Panel Controls
Use the buttons on the front of the monitor to adjust the image settings.
Front panel button Description
A
Preset modes
Use the button to choose from a list of preset color modes. See Preset modes Using the OSD Menu
.
B
Brightness / Contrast
Use the button to direct access to the "Brightness" and "Contrast" control menu.Brightness / Contrast
C
Menu
Use Menu button to open the on-screen display (OSD).
D
Exit
Use the button to exit on-screen display (OSD) from menu and sub-menus.Exit
Front panel button
Use the button on the front of the monitor to adjust the image settings.
Front panel button Description
A
Up
Use the button to adjust (increase ranges) items in the OSD menu.Up
B
Down
Use the button to adjust (decrease ranges) items in the OSD menu.Down
C
OK
Use the button to confirm your selection.OK
D
Back
Use the button to go back to the previous menu.Back
Using the On-Screen Display (OSD) Menu
Accessing the Menu System
NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved
if you change the settings and then wait for the OSD menu to disappear.
1. Press the button to open the OSD menu and display the main menu.
Main Menu
2. Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
3. To select the highlighted item on the menu press the button again.
4. Press the and buttons to select the desired parameter.
5. Press the button to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes.
6. Select the to return to previous menu without accepting current settings or to accept and return to previous menu.
The table below provides a list of all the OSD menu options and their functions.
Icon Menu and Submenus Description
Energy Use This meter shows the energy level being consumed by the monitor in real time.
Brightness/Contrast Use the Brightness and Contrast menu to adjust the Brightness/Contrast.
Produktspecifikationer
| Varumärke: | Dell |
| Kategori: | Övervaka |
| Modell: | E Series E2213H |
Behöver du hjälp?
Om du behöver hjälp med Dell E Series E2213H ställ en fråga nedan och andra användare kommer att svara dig
Övervaka Dell Manualer
6 Februari 2025
6 Februari 2025
7 Januari 2025
31 December 2025
31 December 2025
12 December 2024
12 December 2024
12 December 2024
12 December 2024
12 December 2024
Övervaka Manualer
- Colormetrics
- Insignia
- Behringer
- Iadea
- Archos
- Sonifex
- Kramer
- Game Factor
- CSL
- Atomos
- Feelworld
- AIS
- Datacolor
- Eve Audio
- TVLogic
Nyaste Övervaka Manualer
9 April 2025
9 April 2025
8 April 2025
8 April 2025
7 April 2025
5 April 2025
5 April 2025
4 April 2025
4 April 2025
2 April 2025
